LG OLED55C6P

Standard Repair Process Detail Technical Manual

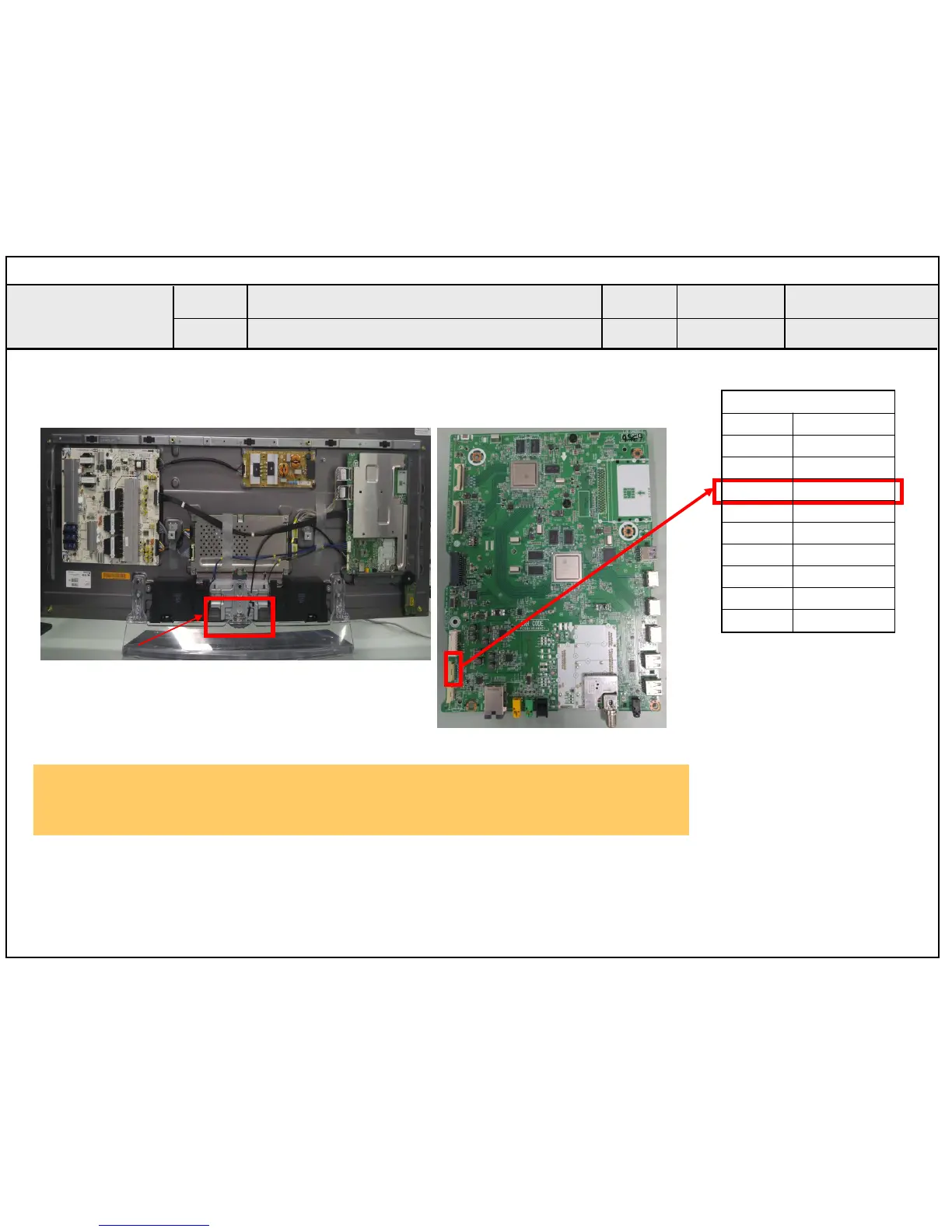

Remote controller operation checking method
D. Function error
A13
Established
date
Revised
date
Error
symptom
Content
A13
①
②
③
P4001
1
GND
2
KEY1
3
KEY2
4
3.5V_ST
5
GND
6
LOGO_LIGHT
7
IR
8
GND
9
EYE_SCL
10
EYE_SDA
Checking order
1, 2. Check IR cable condition between IR & Main board.
3. Check the st-by 3.5V on the terminal 4
