LG OLED55C6P

Standard Repair Process Detail Technical Manual

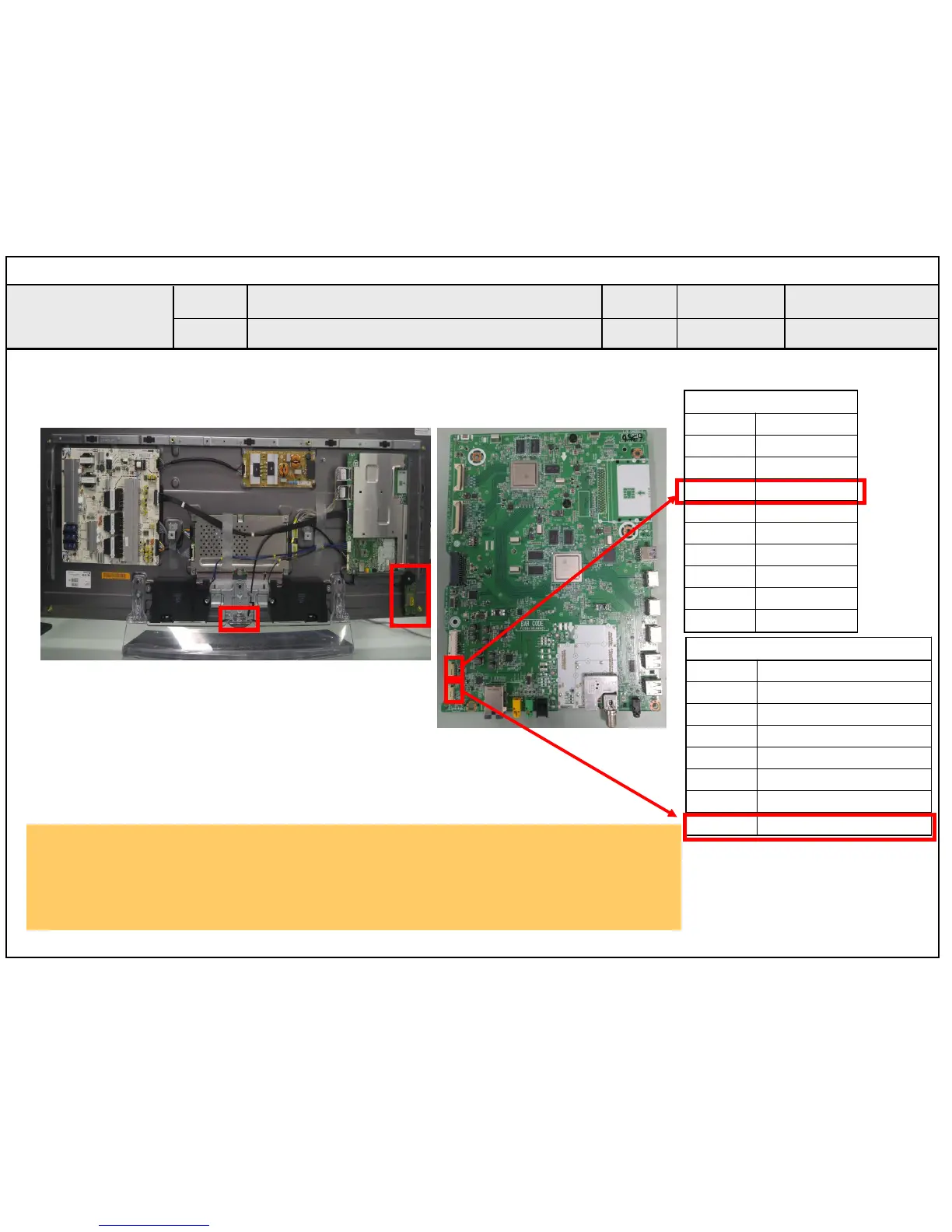

Motion Remote operation checking method
Established
date
Revised
date
Error
symptom
Content
A14
①
A14
D. Function error
②
③
P4001
1
GND
2
KEY1
3
KEY2
4
3.5V_ST
5
GND
6
LOGO_LIGHT
7
IR
8
GND
9
EYE_SCL
10
EYE_SDA
P4000
1
GND
2
BT_RESET
3
3D_SYNC_RF
4
WOL/WIFI_POWER_ON
5
GND
6
WIFI_DP
7
WIFI_DM
8
3.5V_WIFI
③
Checking order
1. Check IR cable condition between IR & Main board.
2. Check WIFI Combo cable condition between WIFI Combo Assy & Main board.
3. Check the st-by 3.5V P001 on the terminal 4
4. Check the 3.5V_WIFI P4000 on the terminal 8
