LG OLED55C6P - Page 49

THERMAL
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

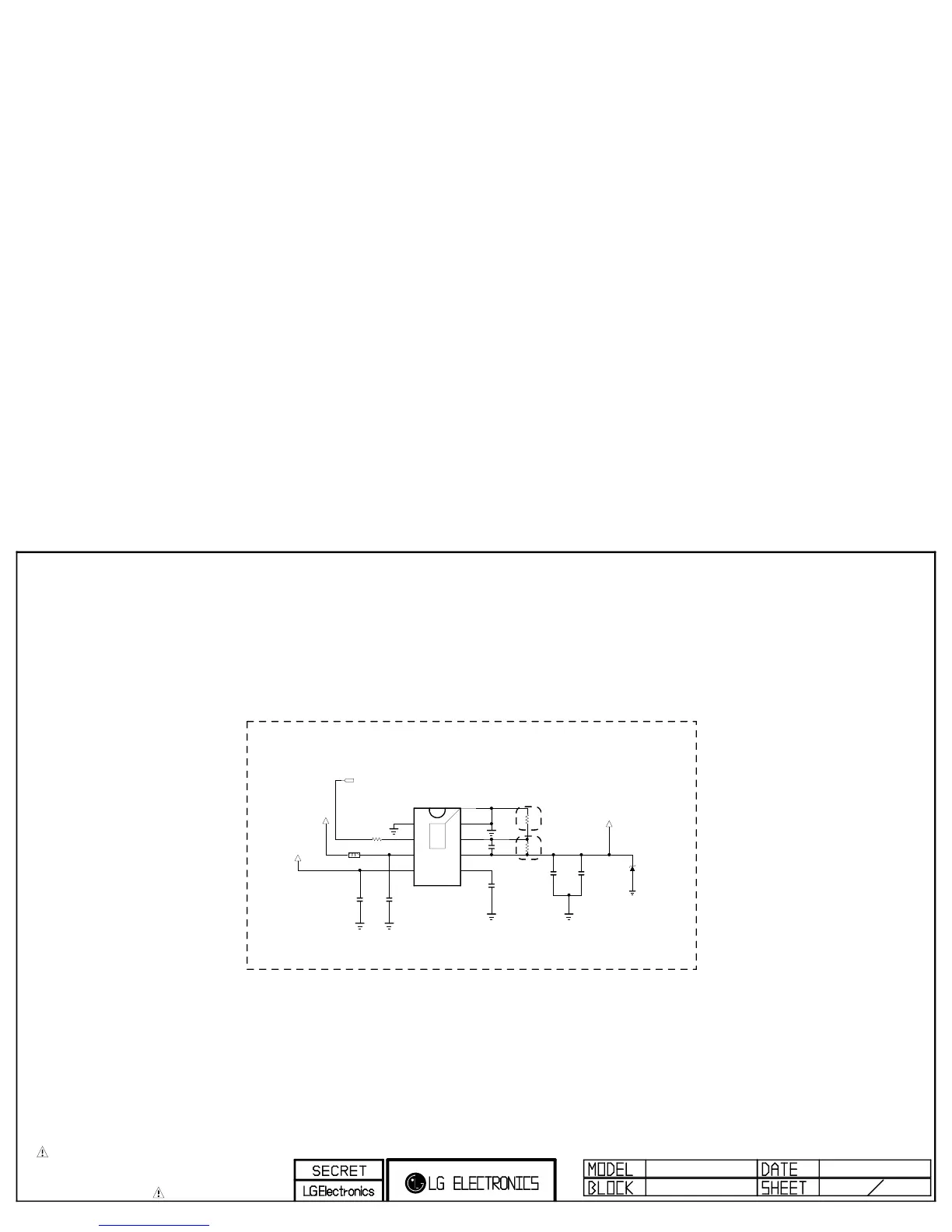

M16_0.9V DDR & C4TX
73
15/09/24
10uF
C2201
10V
10uF
C2200
10V
IC2200
TJ2132GDP
3
IN
2
EN
4
BIAS
1
POK
5
SS
6
OUT
7
FB
8
GND
9
[EP]GND
L2200
C2205
0.1uF
16V
R2200
10K
+5V_NORMAL
POWER_ON/OFF2_3
R2201
8.2K 1%
C2202
0.01uF
50V
+0.9V_DDR
+1.8V_IO
C2203
2700pF
50V
ZD2200
2.5V
ESD_READY
C2204
10uF
10V
R2202
5.1K
1%
Vout=0.6*(1+R2/R1)
2A
R2
+0.9V DDR & C4TX
R1
21
022.sht
