- 14 -
Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.

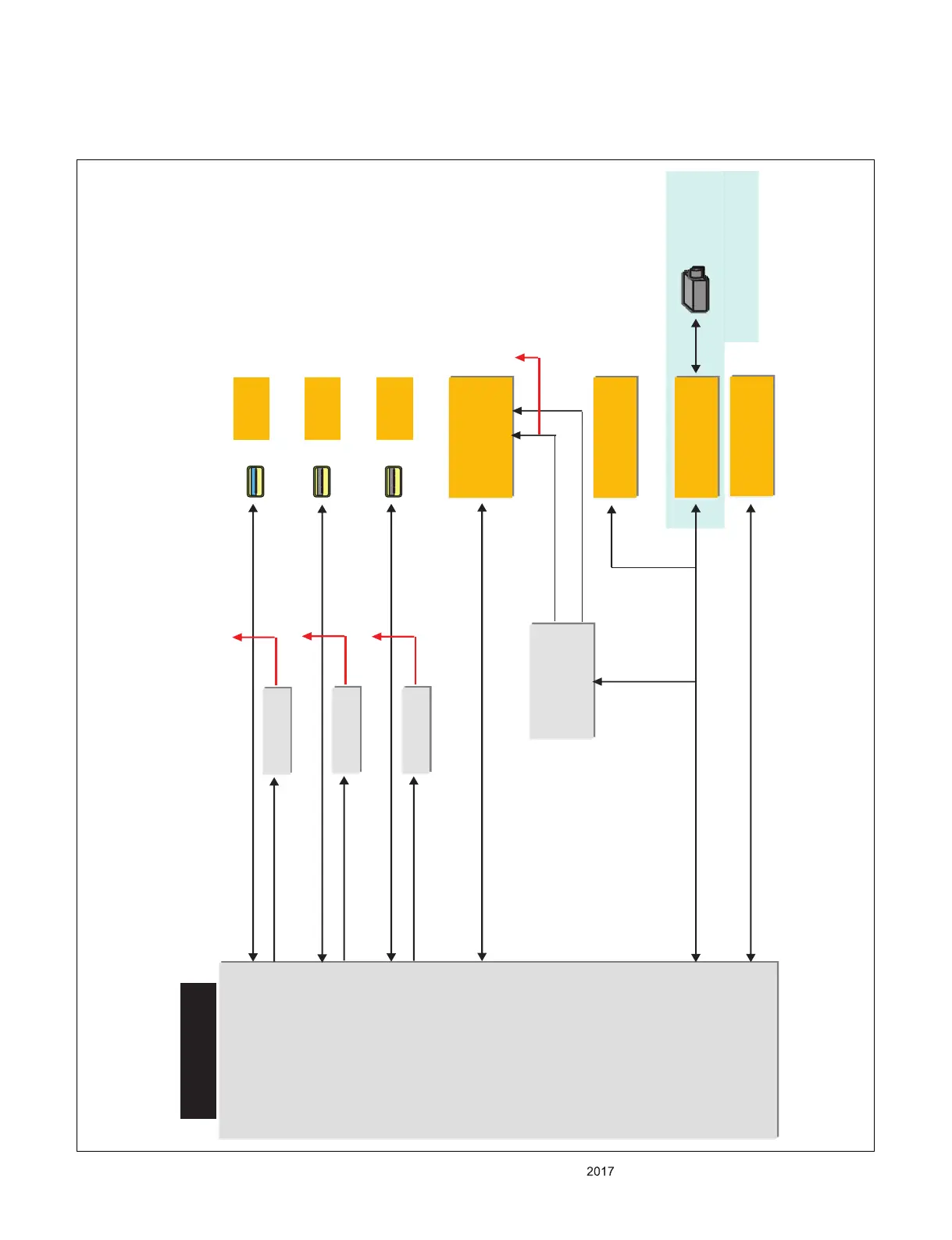

IR + Wi-Fi /BT
Wafer 25P
[UART0_RXD/GPIO106]
USB3.0_1_TX_DP0 / DM0
USB3.0_1_RX_DP0 / DM0
USB3.0_1_DP0 / DM0
[USB3_0_TX0_P / M]
RS232 IC
WIFI_DP / DM
MICOM
WOL/WIFI_POWER_ON
[USB2_2_DP0 / DM0]
SOC_RX/TX
[USB3_0_DP0 / DM0]
[USB3_0_RX0_P / M]
[USB2_1_DP0 / DM0]
USB2.0_2_DP1 / DM1
USB2.0_3_DP0 / DM0
[USB2_0_DP0 / DM0]
[UART1_RXD / TXD]
Debug Wafer
UART1_RX/TX
JK6200
RS232C phone Jack
SOC_RX/TX
UART wafer
SOC_RX/TX
(*) US model only
USB 1
(3.0)_V
USB 2
(2.0)_H
USB 3
(2.0)_H
WIFI_EN
+3.5V_WIFI
OCP
[GPIO90]
USB_CTL1
+5V_USB_1
OCP
[GPIO95]
USB_CTL2
+5V_USB_2
OCP
[GPIO34]
USB_CTL3
+5V_USB_3
[UART0_TXD/GPIO105]
MAIN SOC
5. USB / Wi-Fi / M-Remote / UART
