LG OLED55CS A Series - ASSEMBLY; DISASSEMBLY GUIDE

- 14 -
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.
ASSEMBLY / DISASSEMBLY GUIDE
Total Screw No. : 29 EA

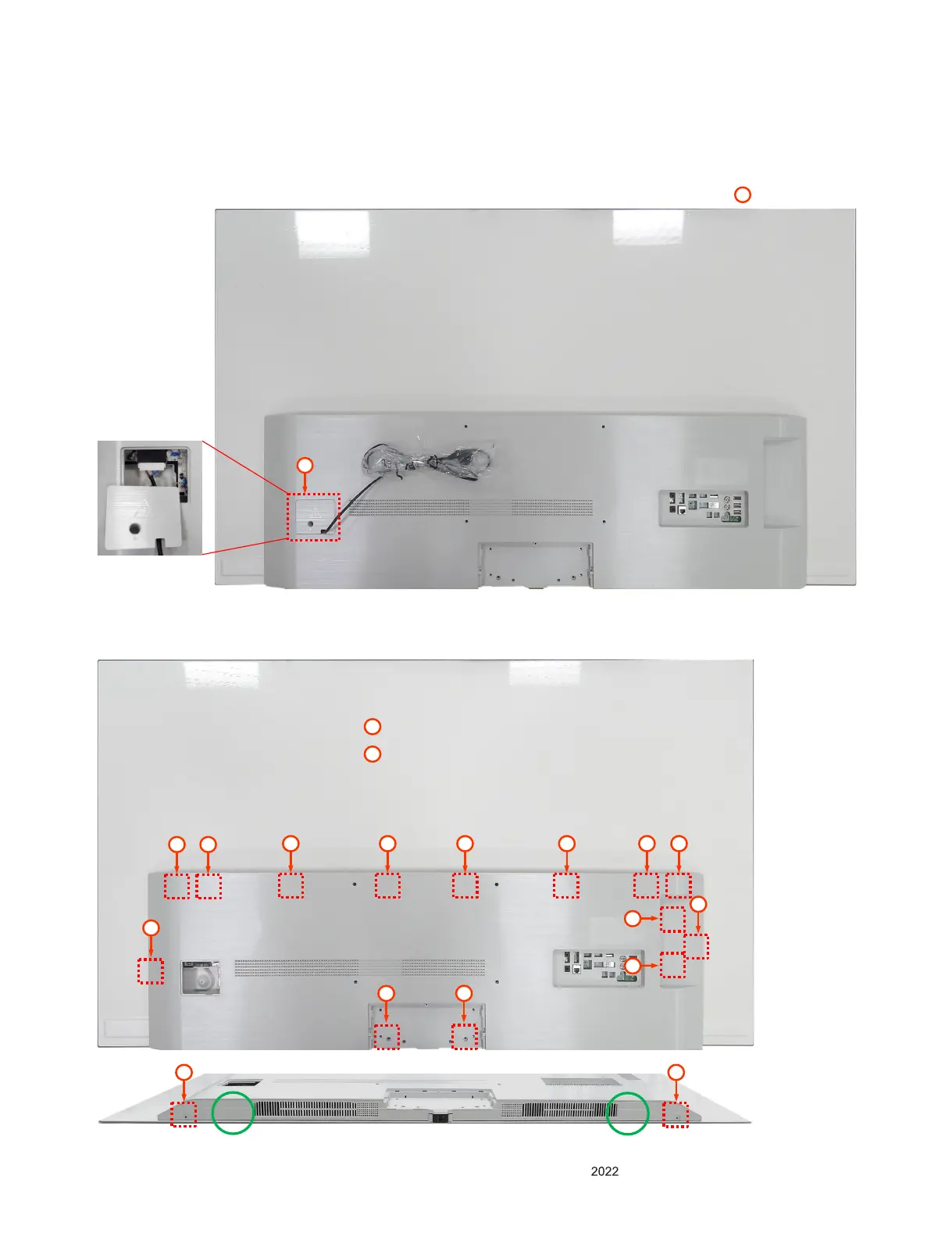

1. Remove screw 1 EA, disassemble power cord from back cover.
2. Remove screw 4 EA, disassemble back cover from module.
* Put hand on the marked area( O ), separate the back cover to the top.
`
1
Screw : 1ea
1
1
1
1
1
2
2 2
2 2 2 2
2
2
2
22
Screw : 4ea
1
Latch : 12ea
2
