4
ENG
ENGLISH
4

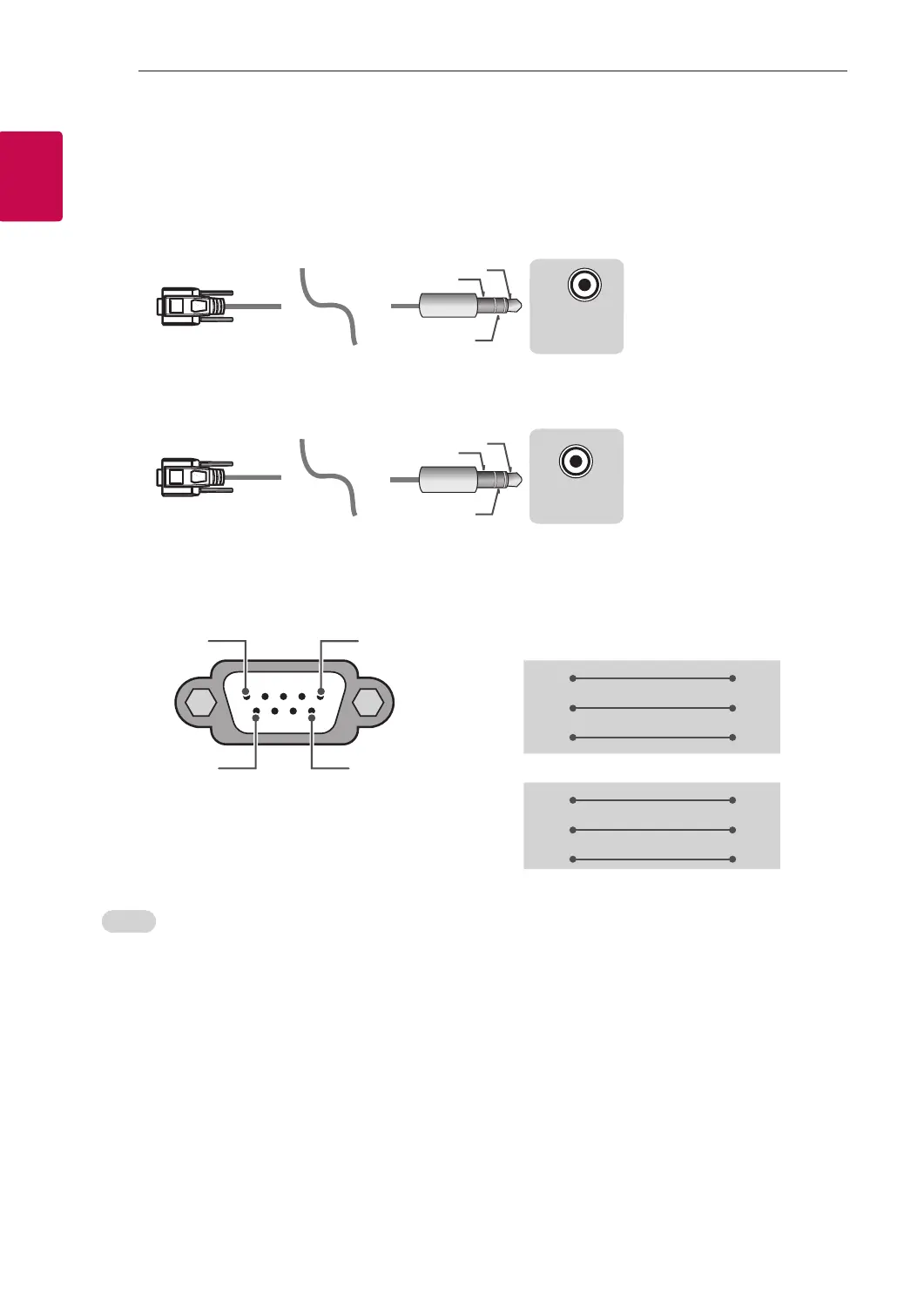

EXTERNAL CONTROL DEVICE SETUP
Phone jack Type
• You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and
the TV, which is specified in the manual.
* For other models, connect to the USB port.
* The connection interface may differ from your TV.
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC
)
(TV)
(PC )
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
- or
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC
)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
Customer Computer RS-232C configurations
3-Wire Configurations(Not standard)
1
6
5
9
PC TV
RXD 2 2 TXD
TXD 3 1 RXD
GND 5 3 GND
OR
RXD 3 2 TXD
TXD 2 1 RXD
GND 5 3 GND
D-Sub 9 Phone
RS-232C
(Serial port)
Set ID
For Set ID number, see "Real Data Mapping" on p.6
1. Press SETTINGS to access the main menus.
2. Press the Navigation buttons to scroll to (*General → About this TV or OPTION) and press OK.
3. Press the Navigation buttons to scroll to SET ID and press OK.
4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.
5. When you are finished, press EXIT.
* (Depending on model)

LG OLED55E7P Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	54.6 \
Display brightness	- cd/m²
Display technology	OLED
Motion interpolation technology	-
3D	No
App store	LG Content Store
RF ports quantity	1
HDMI ports quantity	4
DVI-D ports quantity	0
USB 2.0 ports quantity	3
Consumer Electronics Control (CEC)	SimpLink
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Operating system version	webOS 3.5
Operating system installed	Web OS
Audio decoders	DTS-HD
RMS rated power	20 W
Product color	Black
Panel mounting interface	400 x 200 mm
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W

Weight and Dimensions

Depth (with stand)	175.2 mm
Height (with stand)	- mm
Weight (with stand)	18506.5 g
Depth (without stand)	55.8 mm
Width (without stand)	1236.9 mm
Height (without stand)	767 mm
Weight (without stand)	17100 g
