EXTERNAL CONTROL DEVICE SETUP
Phone jack Type
• You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and
the TV, which is specified in the manual.
* For other models, connect to the USB port.
* The connection interface may differ from your TV.
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC
)
(TV)
(PC )
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
- or
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC
)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2

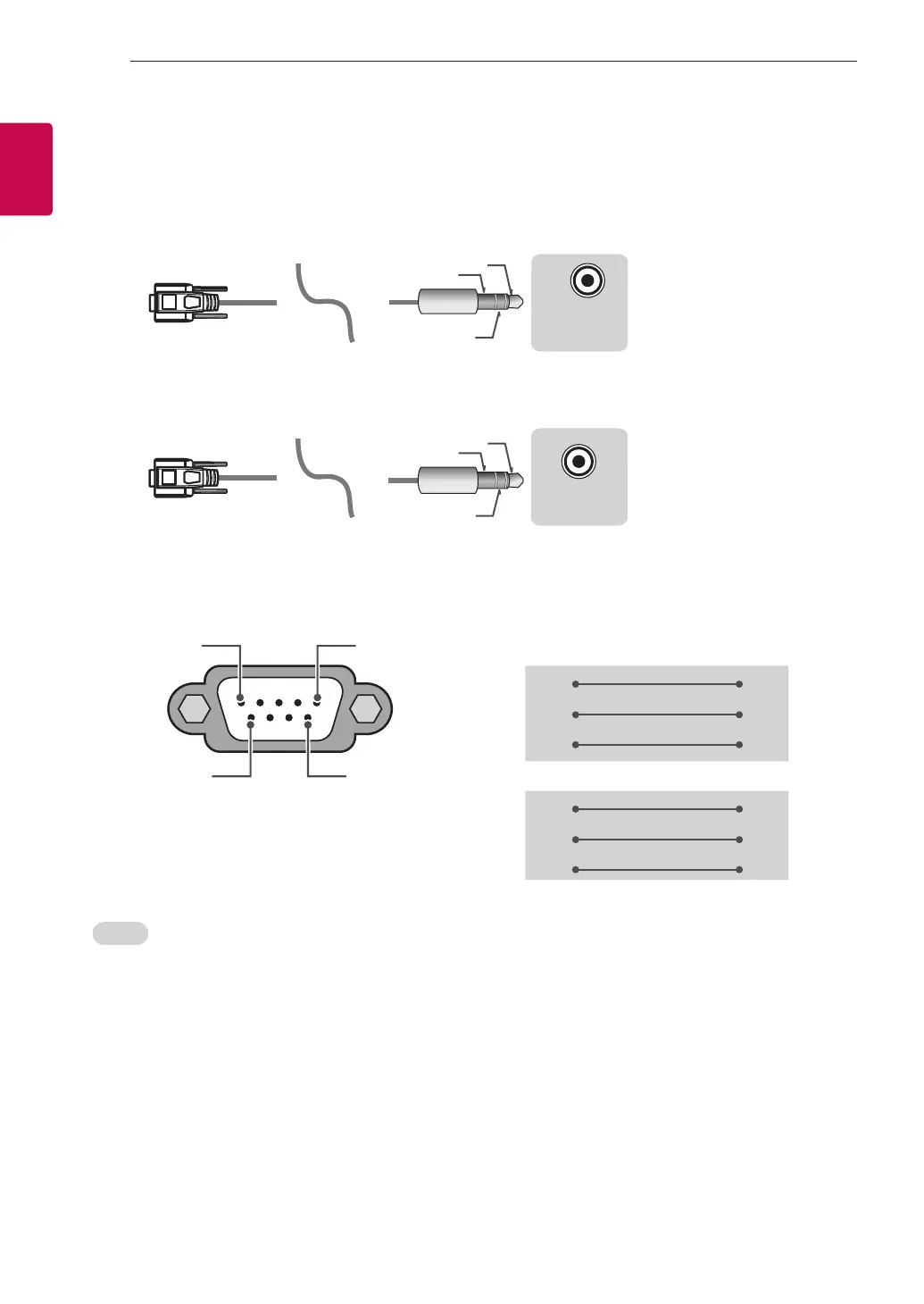

Customer Computer RS-232C configurations
3-Wire Configurations(Not standard)
1
6
5
9
PC TV
RXD 2 2 TXD
TXD 3 1 RXD
GND 5 3 GND
OR
RXD 3 2 TXD
TXD 2 1 RXD
GND 5 3 GND
D-Sub 9 Phone
RS-232C
(Serial port)
Set ID
For Set ID number, see "Real Data Mapping" on p.6
1. Press SETTINGS to access the main menus.
2. Press the Navigation buttons to scroll to (*General → About this TV or OPTION) and press OK.
3. Press the Navigation buttons to scroll to SET ID and press OK.
4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.
5. When you are finished, press EXIT.
* (Depending on model)

LG OLED65C1AUB Specifications

General

Screen shape	Flat
Display diagonal	65 \
Display brightness	- cd/m²
Display technology	OLED
Native aspect ratio	-
Native refresh rate	120 Hz
Display number of colors	1.07 billion colors
Game features	Auto Low Latency Mode (ALLM), Game Optimizer, Variable Refresh Rate (VRR)
AMD FreeSync type	FreeSync Premium
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	Dolby Vision, High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)
Package type	Box
Package depth	206 mm
Package width	1676 mm
Package height	950 mm
Package weight	41190 g
Product color	Black
Panel mounting interface	300 x 200 mm
Operating system installed	Web OS
Cables included	AC
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
RMS rated power	40 W
Audio output channels	2.2 channels
Tuner type	Digital
Digital signal format system	ATSC
HDMI ports quantity	4
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	130 W

Weight and Dimensions

Depth (with stand)	252 mm
Width (with stand)	1448 mm
Height (with stand)	861 mm
Weight (with stand)	32610 g
Depth (without stand)	46 mm
Height (without stand)	831 mm
Weight (without stand)	24000 g
