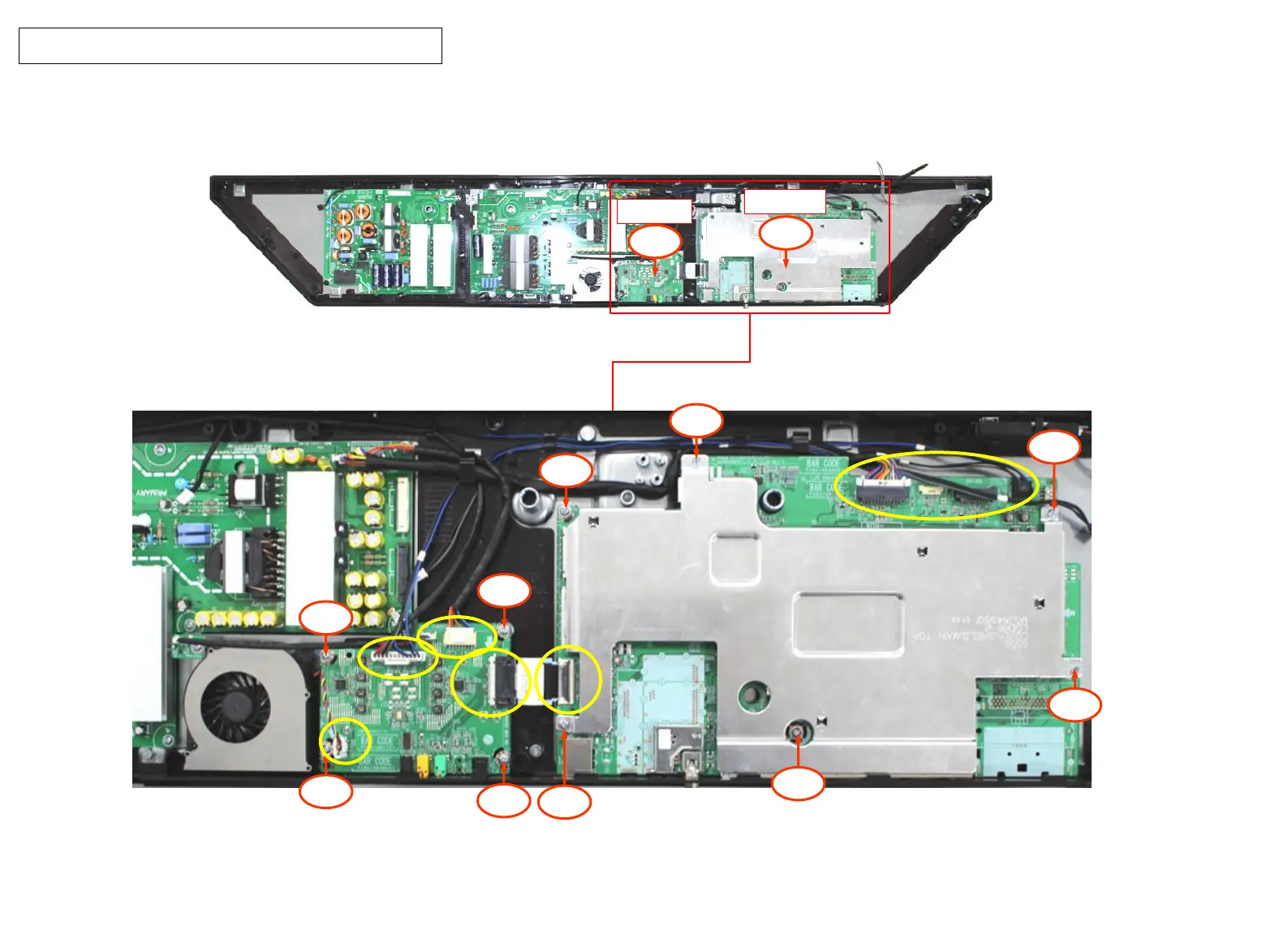

(15-1) Unfasten the Screw 4EA from Sub PCB and Disconnect indicated connectors.
(15-2) Unfasten the Screw 6EA from Main PCB and Disconnect indicated connectors.
15-1
Main PCB
15-2
Sub PCB
15-1
15-1
15-1
15-1
15-2
15-2
15-2
15-2
15-2
15-2
OLED65G6 Disassembly Guide
