EXTERNAL CONTROL DEVICE SETUP
EXTERNAL CONTROL DEVICE SETUP
• Image shown may differ from your TV.

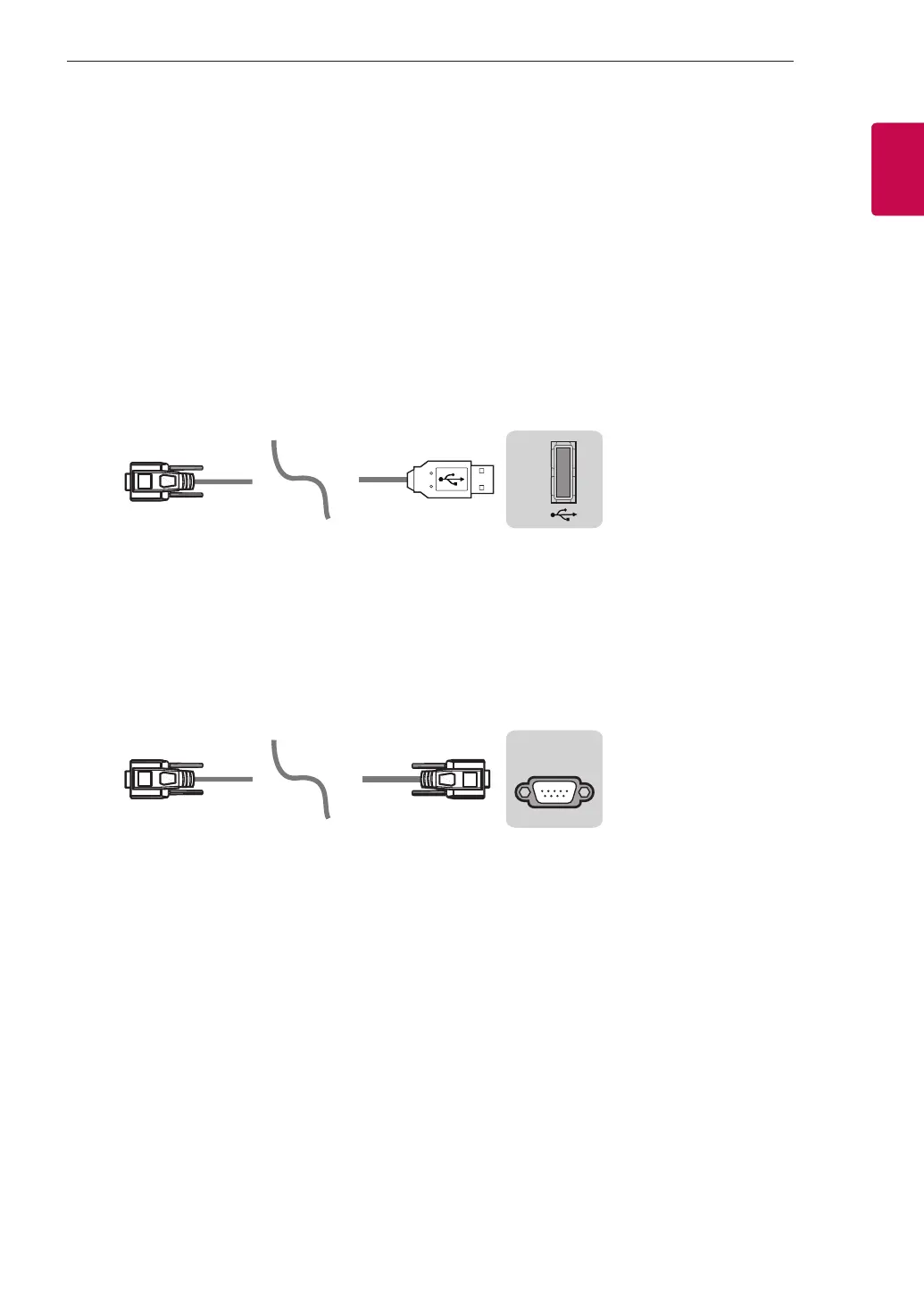

Connect the USB to Serial(RS-232C) converter/RS-232C(Serial) input jack to an external control device
(such as a computer or an A/V control system) to control the product’s functions externally.
Note: The type of control port on the TV can be different between model series.
* Please be advised that not all models support this type of connectivity.
* Cable is not provided.
USB to Serial(RS-232C) converter with USB Cable
USB Type
USB IN
(TV)
(PC )
(PC
)
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC )
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
• LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial(RS-232C)
converter which is not made nor provided by LG.
• It can be purchased from computer stores that carry accessories for IT support professionals.
RS-232C(Serial) With RS-232C(Serial) Cable
DE9 (D-Sub 9pin) Type
• You need to purchase the RS-232C (DE9, D-Sub 9pin female-to-female type) to RS-232C(Serial) cable
required for the connection between the PC and the TV, which is specified in the manual.
USB IN
(TV)
(PC
)
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC )
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
The connection interface may differ from your TV.

LG OLED77C1PUB Specifications

General

Screen shape	Flat
Display diagonal	76.7 \
Display technology	OLED
Native aspect ratio	16:9
Native refresh rate	120 Hz
Tuner type	Analog & digital
Analog signal format system	NTSC, PAL
Digital signal format system	DVB-T2, DVB-T2 HD
Music apps	Apple Music, Spotify, YouTube Music
Video apps	Amazon Prime Video, Apple TV, Google TV, Hulu+, Netflix, YouTube
Operating system installed	Web OS
Audio decoders	Dolby Digital, Dolby Digital 5.1 Surround Sound
RMS rated power	40 W
Number of speakers	2
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
Product color	Gray
Panel mounting interface	400 x 400 mm
Audio formats supported	AC3, AC4, EAC3, HE-AAC, MP2, MP3, MP4, PCM, WMA, apt-X
High Dynamic Range (HDR) technology	Dolby Vision
HDMI version	2.2/1.4
PC in (D-Sub)	No
HDMI ports quantity	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Power consumption (max)	170 W
Power consumption (standby)	0.5 W

Weight and Dimensions

Depth (with stand)	269.2 mm
Width (with stand)	1722.1 mm
Height (with stand)	1016 mm
Weight (with stand)	35833 g
Depth (without stand)	50.8 mm
Width (without stand)	1701.8 mm
Height (without stand)	990.6 mm
Weight (without stand)	26308 g
