LG OLED77C1PUB User Manual

4
ENG
ENGLISH
4
EXTERNAL CONTROL DEVICE SETUP
Phone jack Type
• You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and
the TV, which is specified in the manual.
* For other models, connect to the USB port.
* The connection interface may differ from your TV.
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC
)
(TV)
(PC )
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
- or
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC
)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2

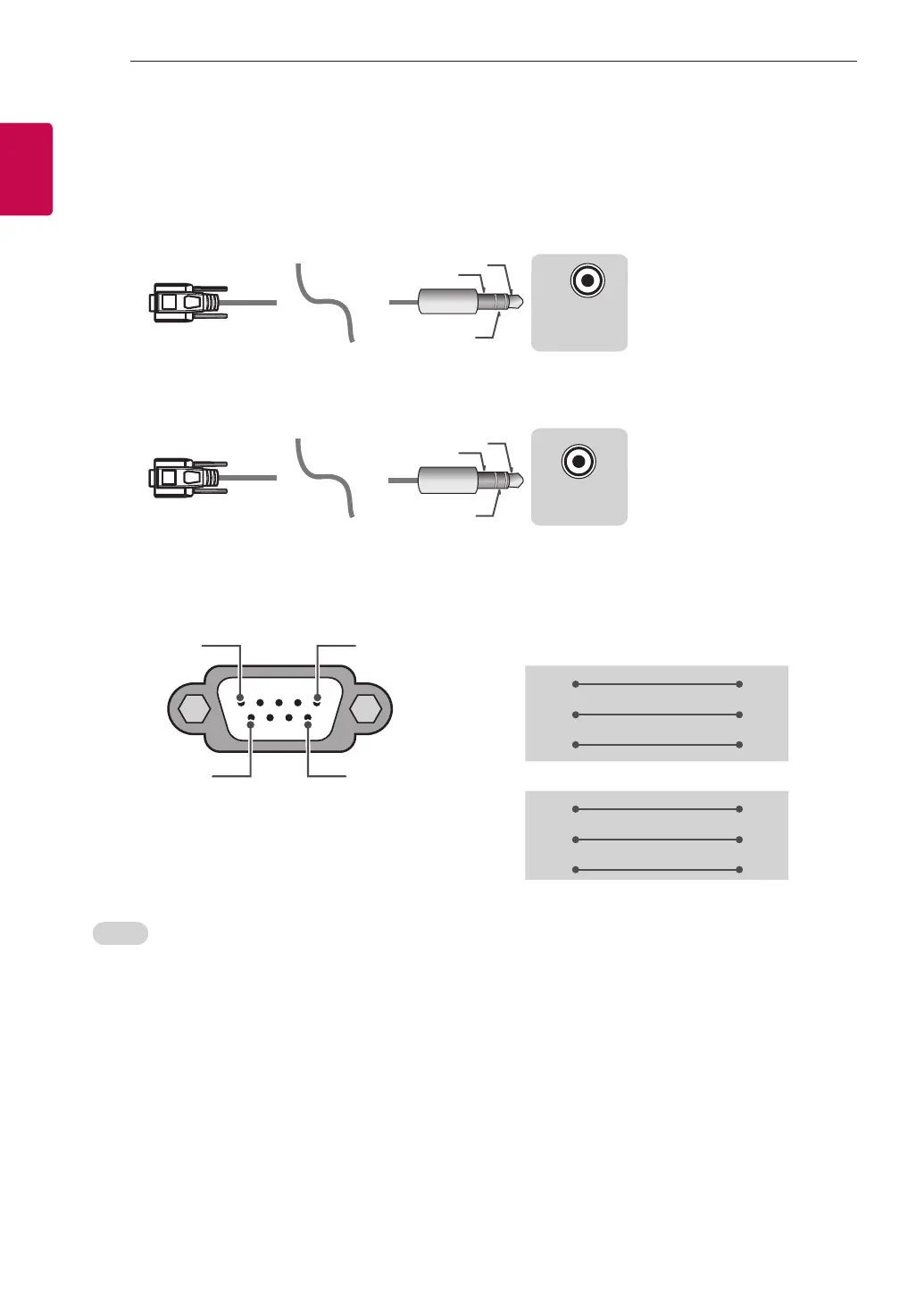

Customer Computer RS-232C configurations
3-Wire Configurations(Not standard)
1
6
5
9
PC TV
RXD 2 2 TXD
TXD 3 1 RXD
GND 5 3 GND
OR
RXD 3 2 TXD
TXD 2 1 RXD
GND 5 3 GND
D-Sub 9 Phone
RS-232C
(Serial port)
Set ID
For Set ID number, see "Real Data Mapping" on p.6
1. Press SETTINGS to access the main menus.
2. Press the Navigation buttons to scroll to (*General → About this TV or OPTION) and press OK.
3. Press the Navigation buttons to scroll to SET ID and press OK.
4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.
5. When you are finished, press EXIT.
* (Depending on model)

LG OLED77C1PUB Specifications

General

Screen shape	Flat
Display diagonal	76.7 \
Display technology	OLED
Native aspect ratio	16:9
Native refresh rate	120 Hz
Tuner type	Analog & digital
Analog signal format system	NTSC, PAL
Digital signal format system	DVB-T2, DVB-T2 HD
Music apps	Apple Music, Spotify, YouTube Music
Video apps	Amazon Prime Video, Apple TV, Google TV, Hulu+, Netflix, YouTube
Operating system installed	Web OS
Audio decoders	Dolby Digital, Dolby Digital 5.1 Surround Sound
RMS rated power	40 W
Number of speakers	2
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
Product color	Gray
Panel mounting interface	400 x 400 mm
Audio formats supported	AC3, AC4, EAC3, HE-AAC, MP2, MP3, MP4, PCM, WMA, apt-X
High Dynamic Range (HDR) technology	Dolby Vision
HDMI version	2.2/1.4
PC in (D-Sub)	No
HDMI ports quantity	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Power consumption (max)	170 W
Power consumption (standby)	0.5 W

Weight and Dimensions

Depth (with stand)	269.2 mm
Width (with stand)	1722.1 mm
Height (with stand)	1016 mm
Weight (with stand)	35833 g
Depth (without stand)	50.8 mm
Width (without stand)	1701.8 mm
Height (without stand)	990.6 mm
Weight (without stand)	26308 g
