LG OLED77C2 Series User Manual

Standard Repair Process Detail Technical Manual
Magic Remote/WiFi operation checking method
D. Function error
Established
date
Revised
date
Error
symptom
Content
A14
②
③
Checking order

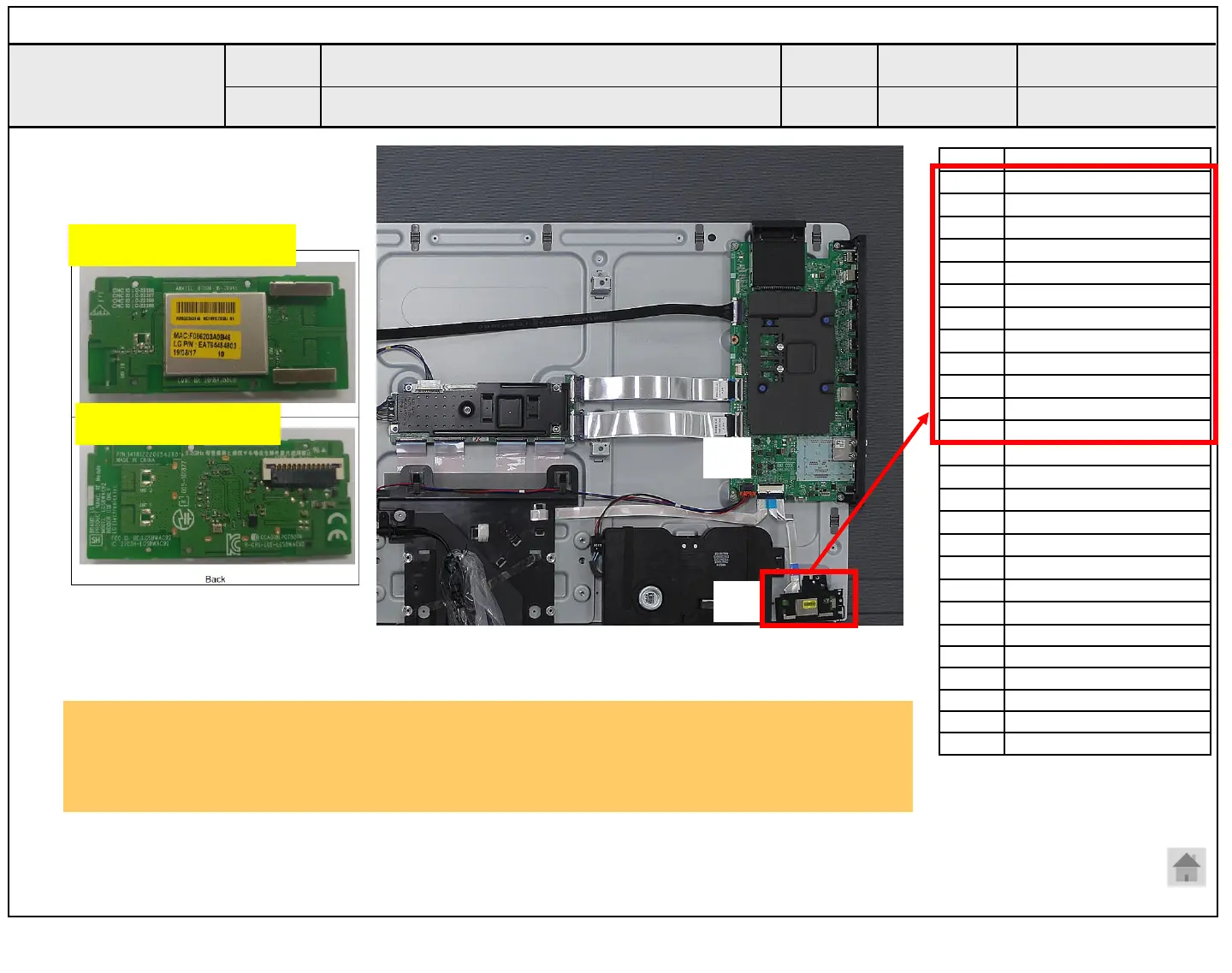

1.Check BT/Wifi cable condition between BT/Wifi assy & Main board.
2.Check the Main 3.5V on the terminal 1 pin.
Checking order to check motion remote/wifi
① Wifi & BT Front
Wifi & BT Rear
A14
Pin Pin name
1 +3.5V_WIFI
2 WIFI_DM
3 WIFI_DP
4 GND
5 WOL/WIFI_PWR_ON
6 +3.5V_WIFI
7 WIFI_SUSPEND/RESUME
8 GND
9 COMBO_RESET
10 BT_WAKE_UP_HOST
11 GND
12 +3.5V_WIFI
13 EYE_SDA
14 EYE_SCL
15 GND
16 GND
17 IR
18 LED_R
19 GND
20 GND
21 +3.5V_ST
22 +3.5V_ST
23 +3.5V_ST
24 KEY2
25 WOV_PDMO_DATAIN
26 WOV_PDM_CLKOUT
②
Copyright © 2022 LG Electronics. Inc. All rights reserved.
Only for training and service purposes.
