LG OLED77C9PTA Service Manual

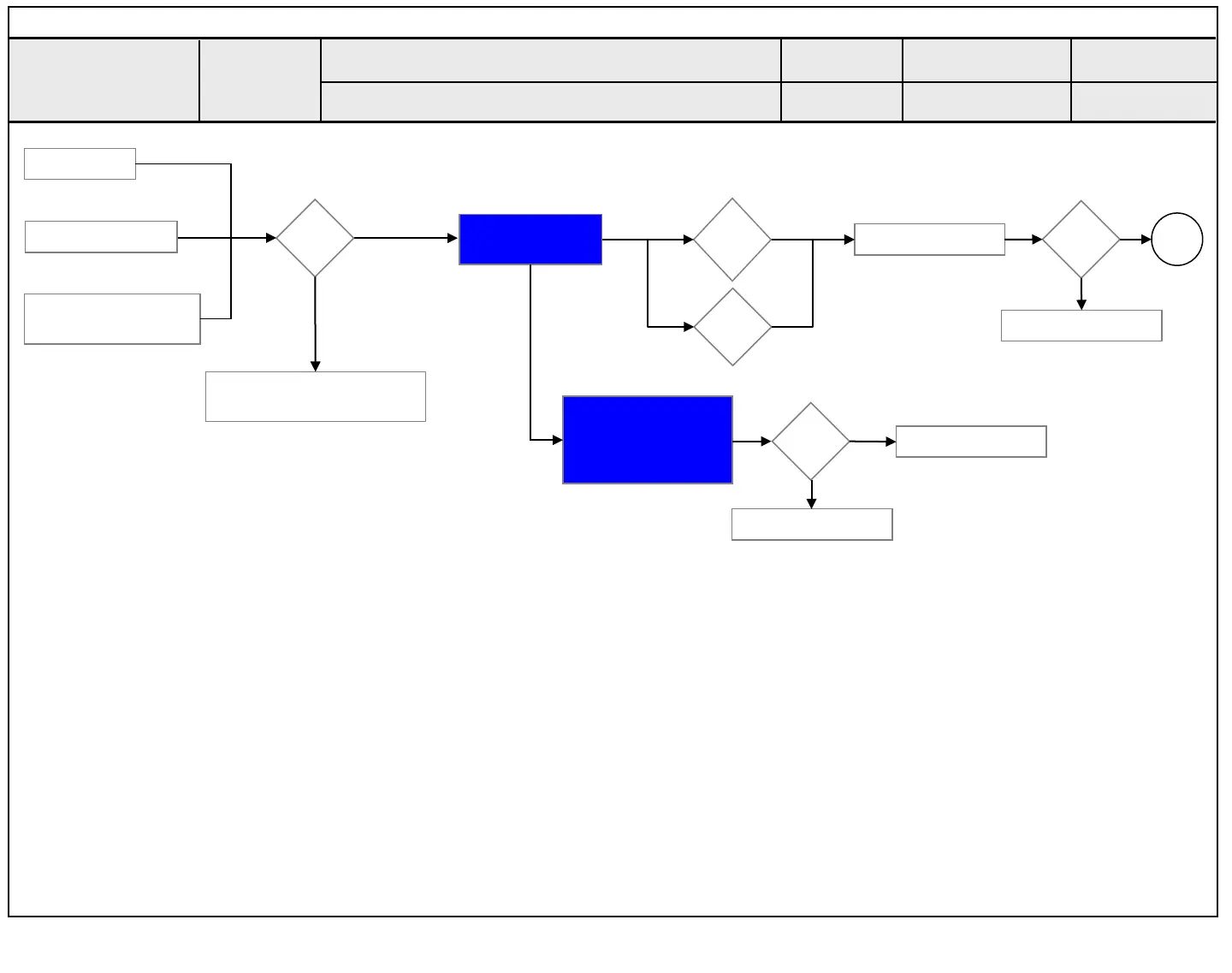

Off when on, off while viewing, power auto on/off
Error?
N
Y
Check Power Off
Mode
Fix Power cord & Outlet
and check each 2 phase out
Check Power cord
Check for all 2- phase
power out
Check outlet
Replace Main B/D
CPU
Abnormal
(If Power Off mode is
not displayed)
Check Power B/D
output voltage
Y
N
Replace Main B/D
Normal
voltage?
Replace Power B/D
Replace Power B/D
N
Y
Normal?
End
※ Caution
Check and fix exterior
of Power B/D Part
☞
A12
☞
A10/A11
Established
date
Revised date
7/17
Error
symptom
Standard Repair Process
7
Abnormal
1
B. Power error
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
