LG OLED77G6P - Page 32

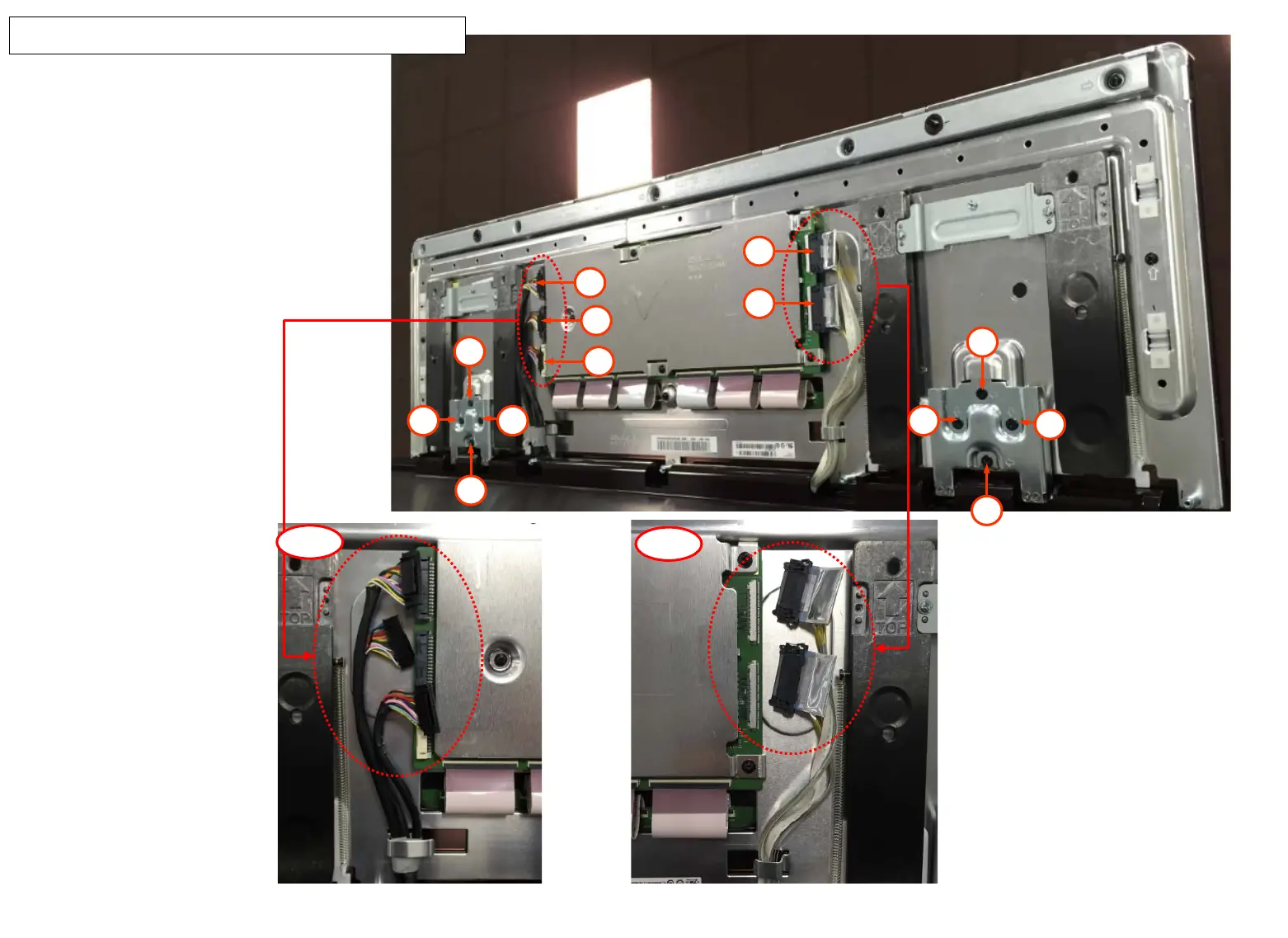

(4-1) Unfasten Screw 8EA.
(4-2) Disconnect Power Cable 3EA.
(4-3) Disconnect VX1 Cable 2EA.
4-2
4-3
4-1
4-1
4-1
4-1
4-1 4-1 4-1
4-1
4-2
4-2
4-2
4-3
4-3
OLED77G6 Disassembly Guide
