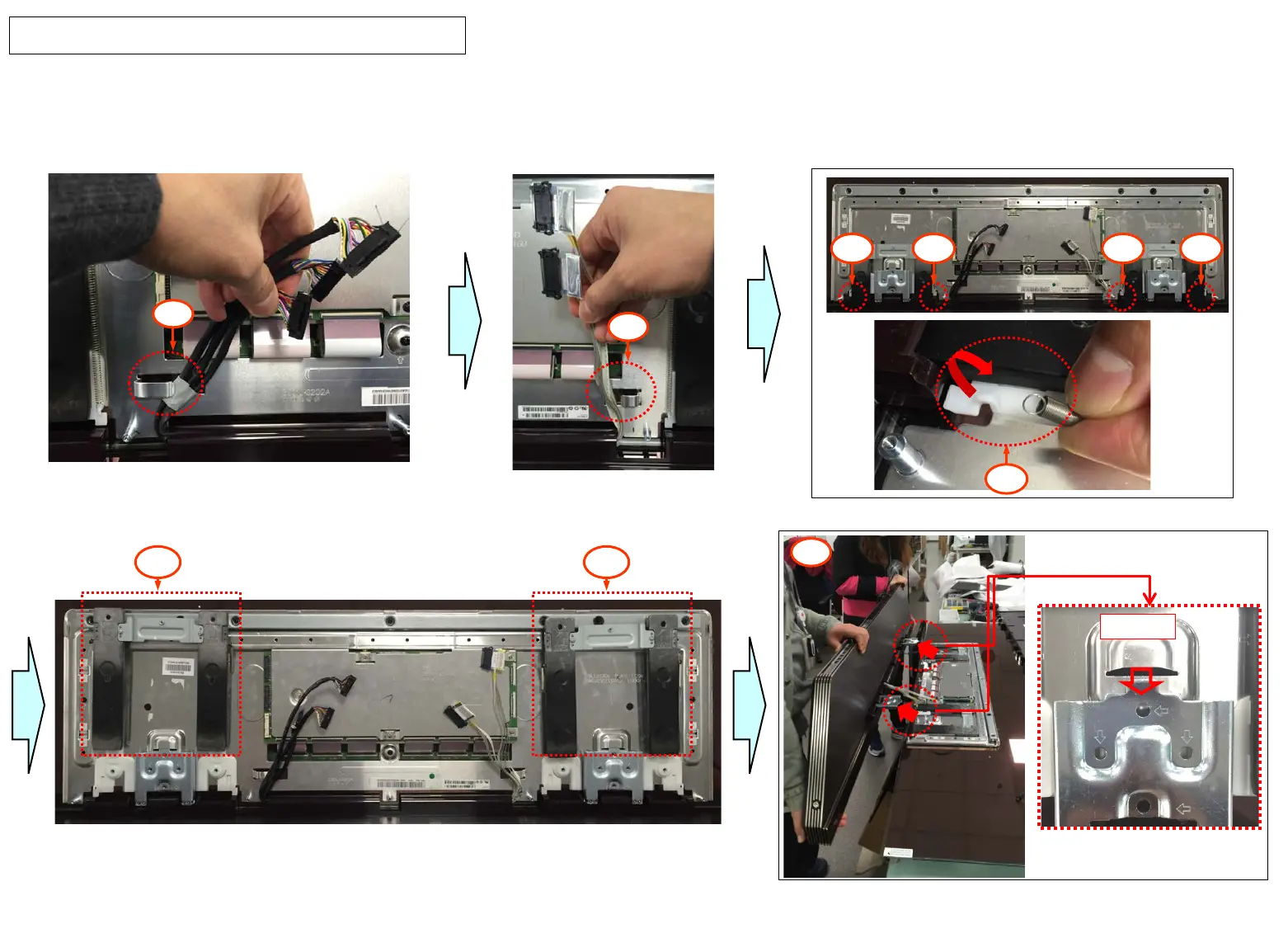

(5-1) ~ (5-2) Unhook the cable from [Plate, T-Con] during cable disconnection.
(5-3) Unhook 4EA springs from Locking Bracket Ass’y.
(5-4) Move 2EA Locking Bracket Ass’y to upper area.
(5-3) Pull with raising up the [AV BOX] like a picture to separate the hooks of [Hinge Ass’y].
(This process should be worked by two workers.)
5-1
5-2
Separate
5-3
5-3 5-3 5-3 5-3
5-4 5-4
5-5
OLED77G6 Disassembly Guide
