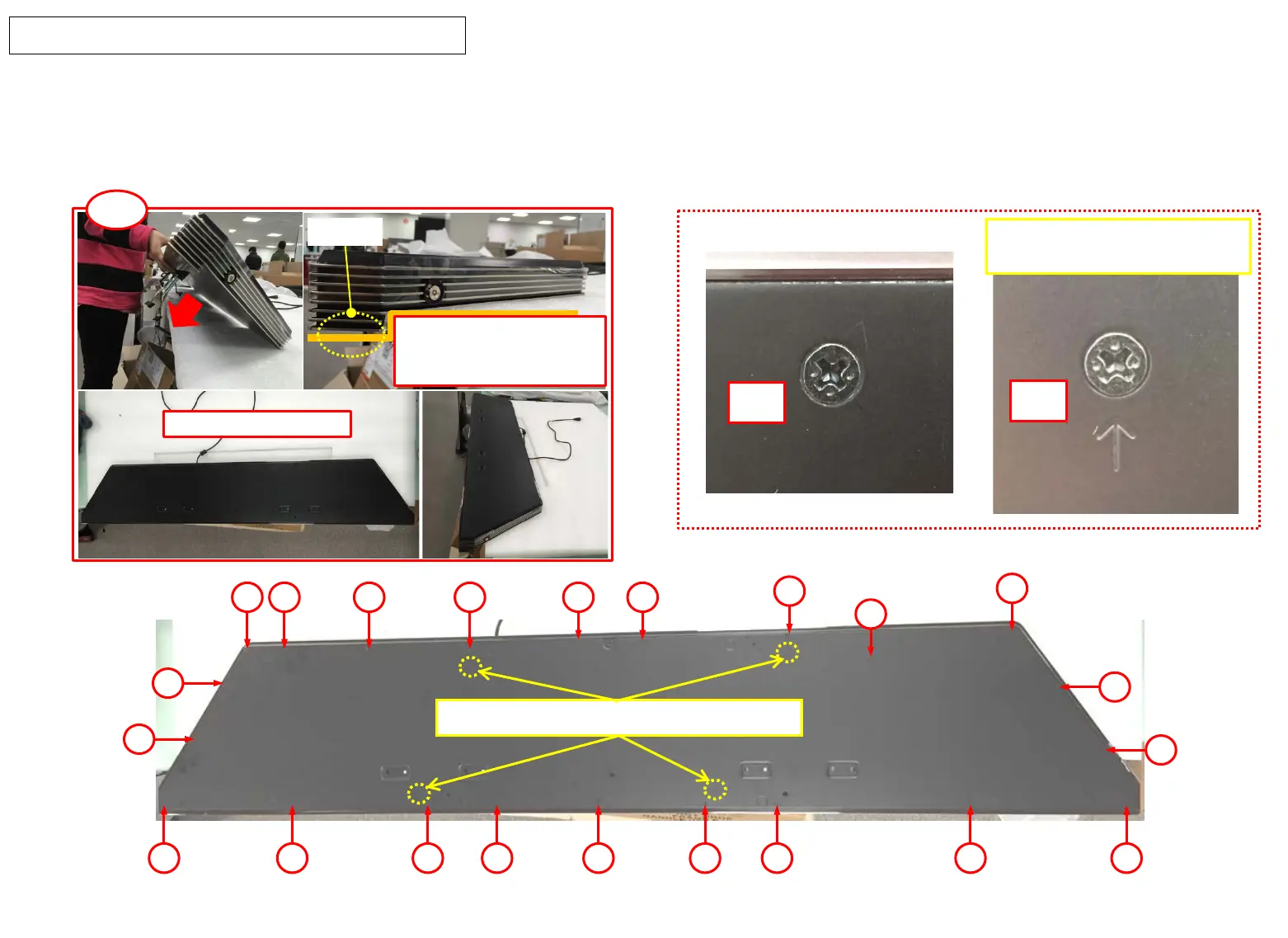

(6-1) Turn and put down the [AV BOX] like a picture. Before that, cover the table with a cotton sheet or something like that.
Grille area of [AV BOX] shouldn’t be touched the table. So, put grille area out from the table like below pictures.
(6-2) Unfasten the [A] Screw 22EA and Do not unfasten [b] Screw 4EA.
You need to check the arrow mark. If there are arrow marked screws, Do not unfasten that.
[A]
Do not unfasten arrow
marked screws
[B]
6-2
6-2
Do not unfasten these screws
6-2 6-2 6-2 6-2
6-2
6-2
6-2
6-2
6-2
6-2
6-2 6-2 6-2 6-2 6-2 6-2 6-2 6-2
6-2
6-2
6-1
Table
Cotton sheet or Pad
Grille
OLED77G6 Disassembly Guide
Copyright © 2016 LG Electronics Inc. All rights reserved.
Only for training and service purposes
