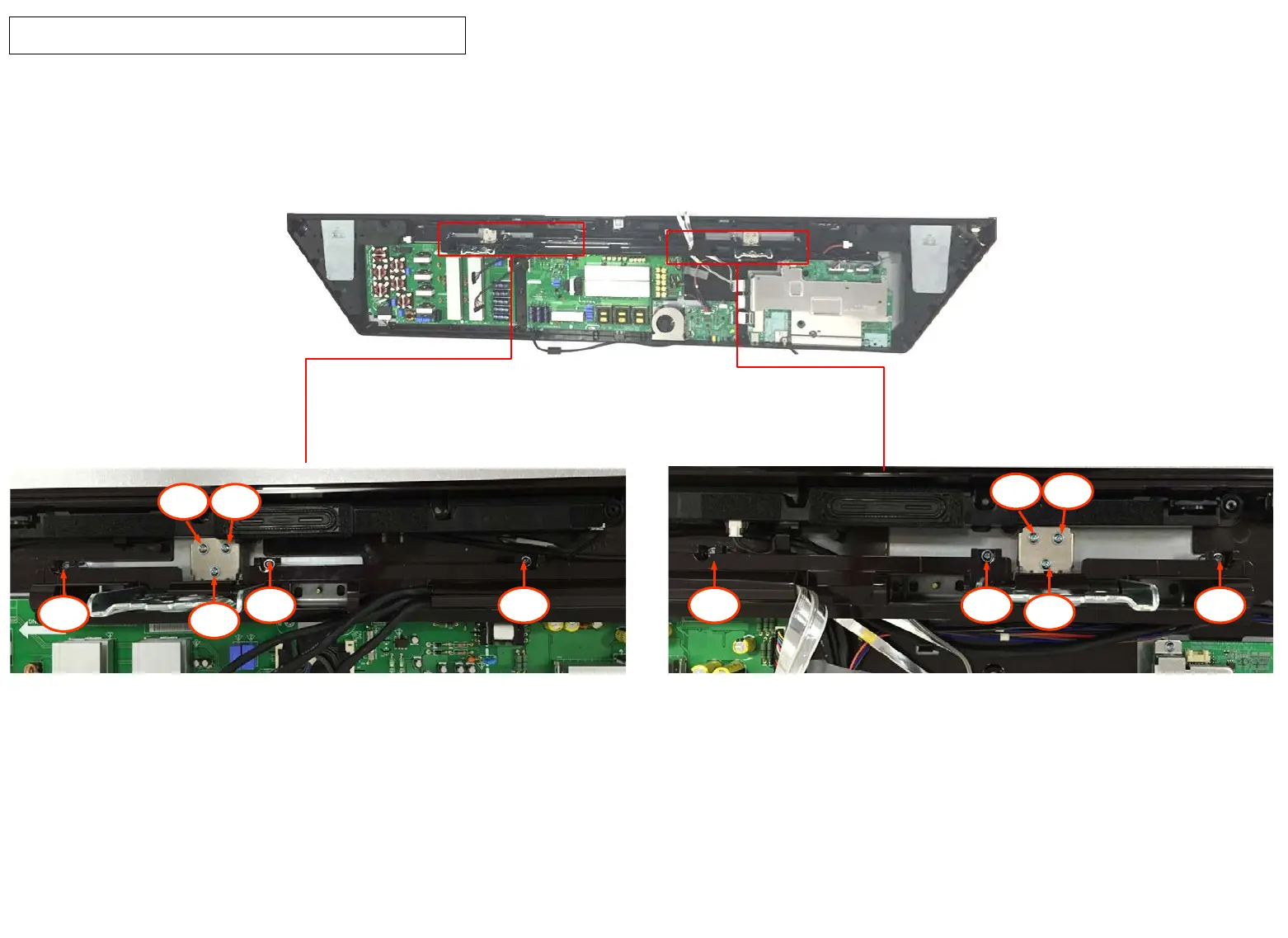

(12-1) Unfasten Screw 6EA at [Hinge Ass’y]. (L/R each 3EA)
(12-2) Unfasten Screw 6EA at [Cover, Hinge Front].
12-1
12-1
12-2
12-1
12-1 12-1
12-2 12-2 12-2 12-2
12-2
12-1
OLED77G6 Disassembly Guide
