18-2
18-1
Joystick
IR

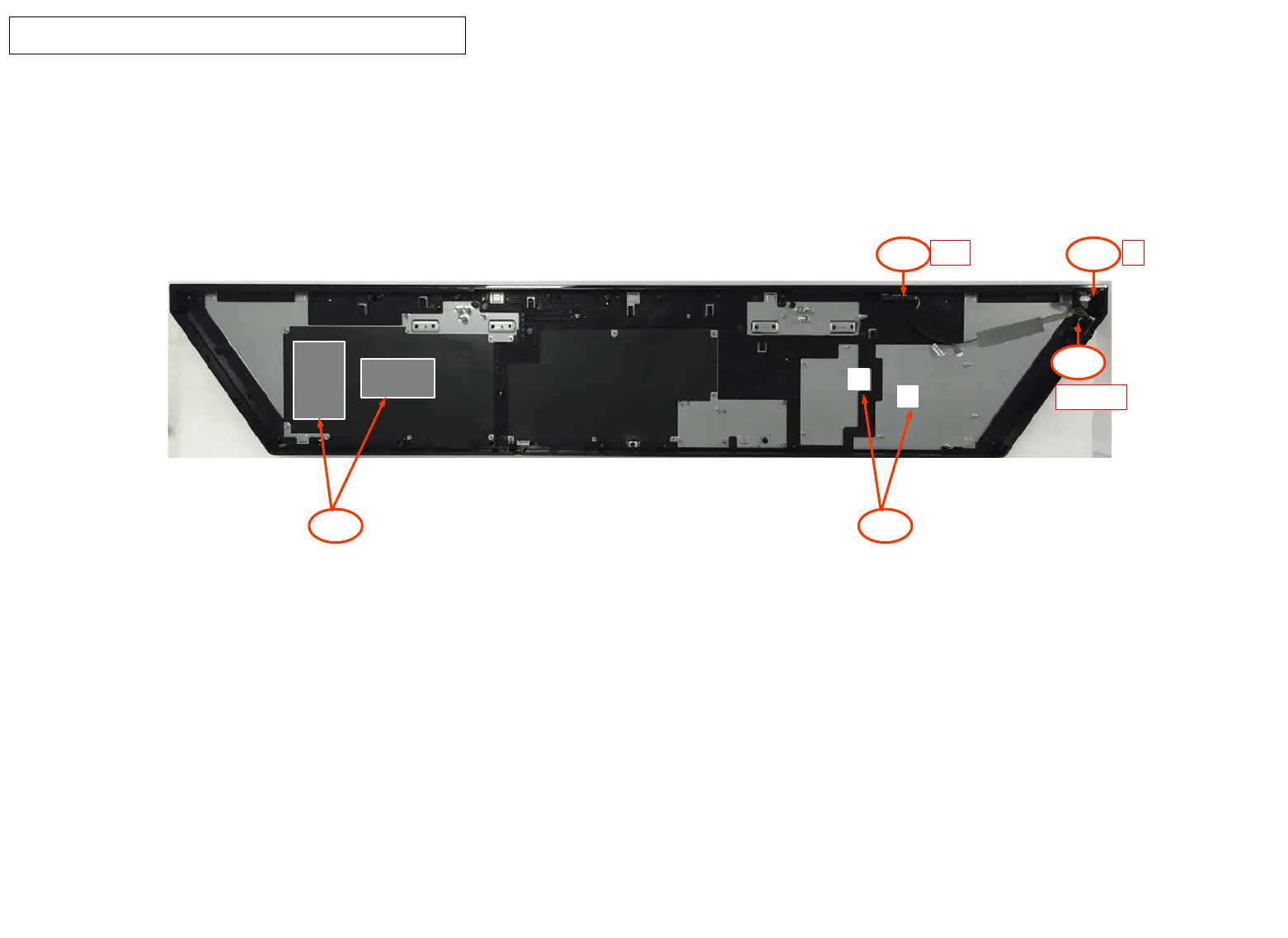

(18-1) Unfasten [IR Bracket] Screw 1EA.
(18-2) Unfasten [Joystick bracket] Screw 1EA.
(18-3) Disassemble [WIFI bracket].
(18-4) Detach [PSU] Gap Pad 2EA.
(18-5) Detach [Main] Gap Pad 2EA.
18-3
WIFI
18-4
18-5
OLED77G6 Disassembly Guide
Copyright © 2016 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only
