LG OLED77G6P - Page 49

1-2
1-1
Joystick
IR

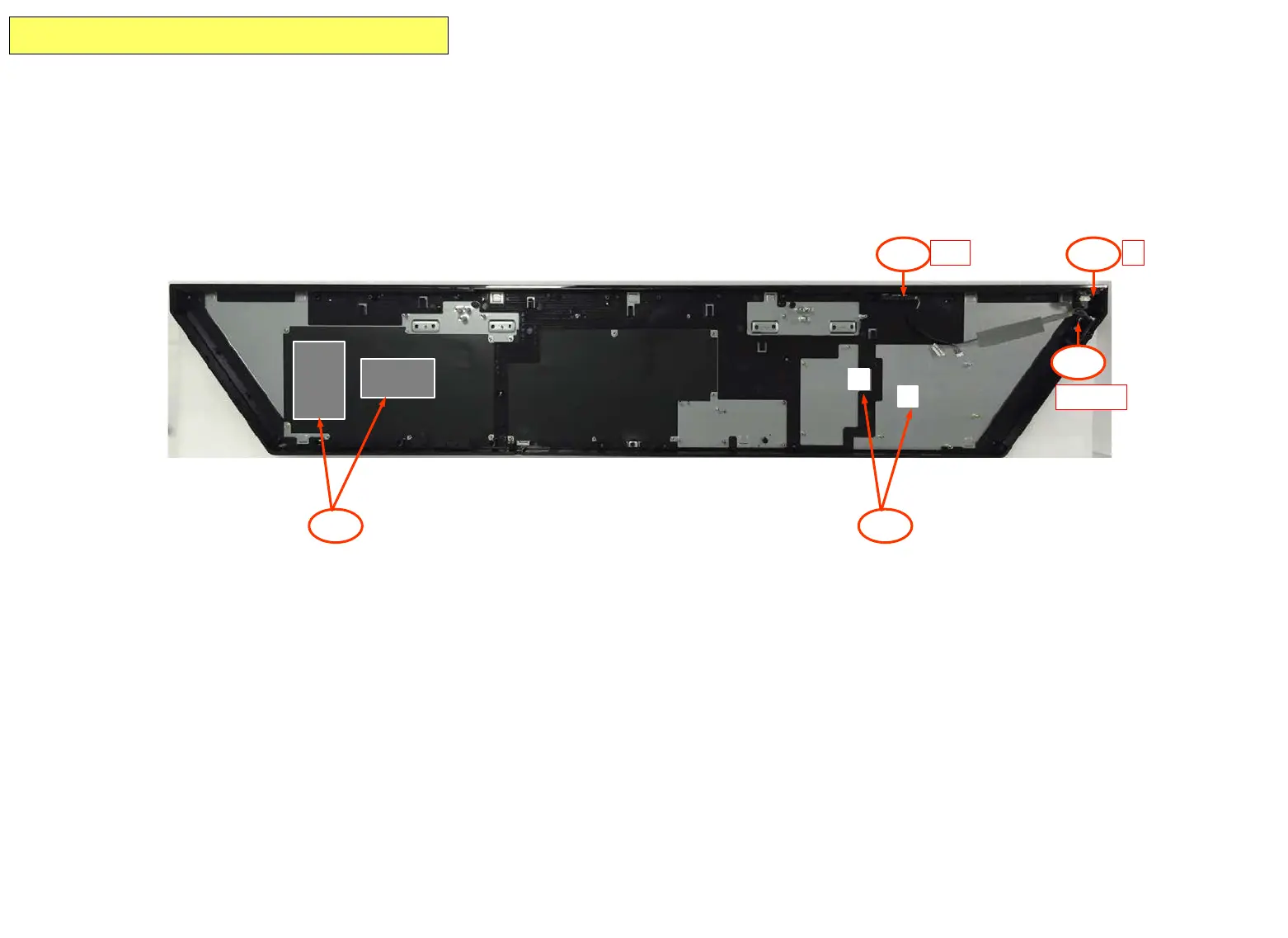

(1-1) Fasten [IR Bracket] Screw 1EA.
(1-2) Fasten [Joystick bracket] Screw 1EA.
(1-3) Assemble [WIFI bracket].
(1-4) Attach [PSU] Gap Pad 2EA.
(1-5) Attach [Main] Gap Pad 2EA.
1-3
WIFI
1-4
1-5
OLED77G6 Re-assembly Guide
