OLED77G6 Re-assembly Guide

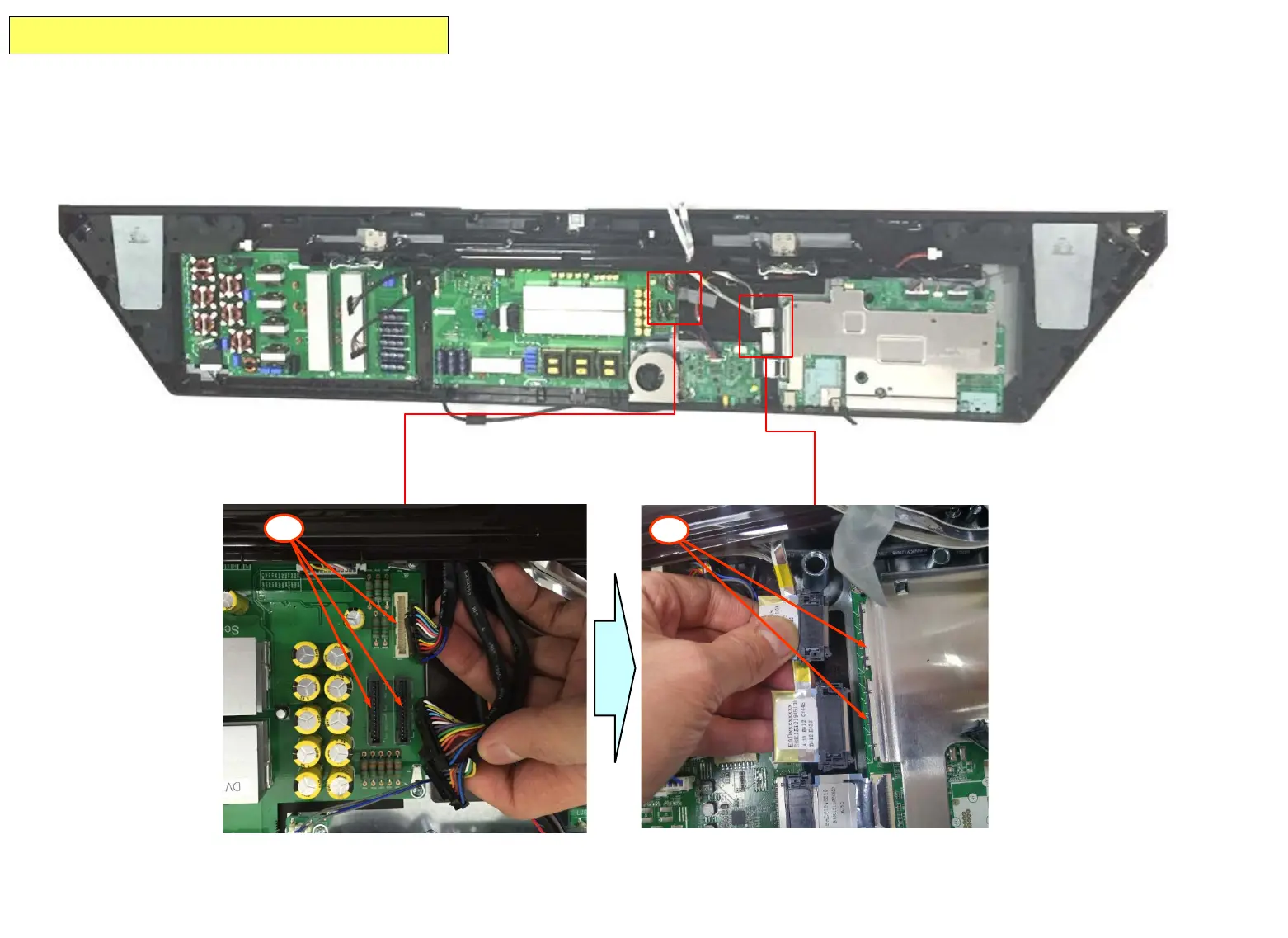

(6-1) Connect the Power Cable Connector 3EA from the Bottom of [Cover Ass’y, Hinge Cable].
(6-2) Connect the VX1 Cable Connector 2EA from the Bottom of [Cover Ass’y, Hinge Cable].
