LG OLED77G6P - Page 55

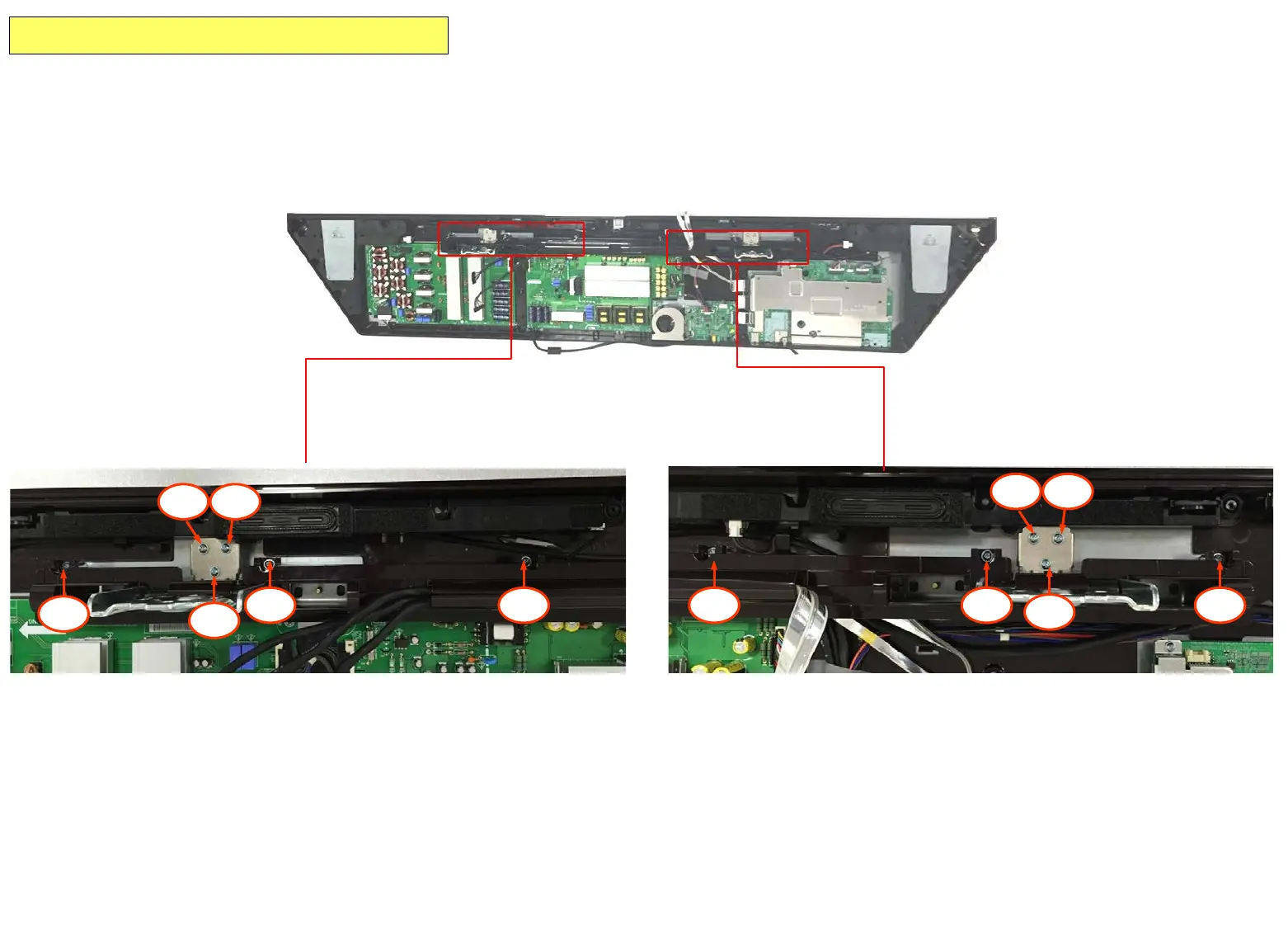

(7-1) Fasten the Screw 3EA at each part of [Hinge Ass’y] L/R. (Total 6EA)
(7-2) Fasten the Screw 6EA at [Cover, Hinge front].
7-1
7-1
7-2
7-1
7-1 7-1
7-2 7-2 7-2 7-2
7-2
7-1
OLED77G6 Re-assembly Guide
