18
Installing Zero Connect Box to the side of TV Screen
Checking before turning on wireless TV
If you have installed the Zero Connect Box to the side of the TV Screen, follow these steps.
1 Direct the front LED of the Zero Connect Box towards the wireless receiver on the TV Screen.
2 If the front LED is not directed towards the TV Screen wireless receiver, turn the dial on top of the Zero Connect Box left or right until the sliding button
faces the TV Screen wireless receiver. (If the front LED of the Zero Connect Box faces the viewing direction, turn the dial left or right until it is at a 90°
angle.)
3 Adjust the sliding button on the Zero Connect Box to the center.

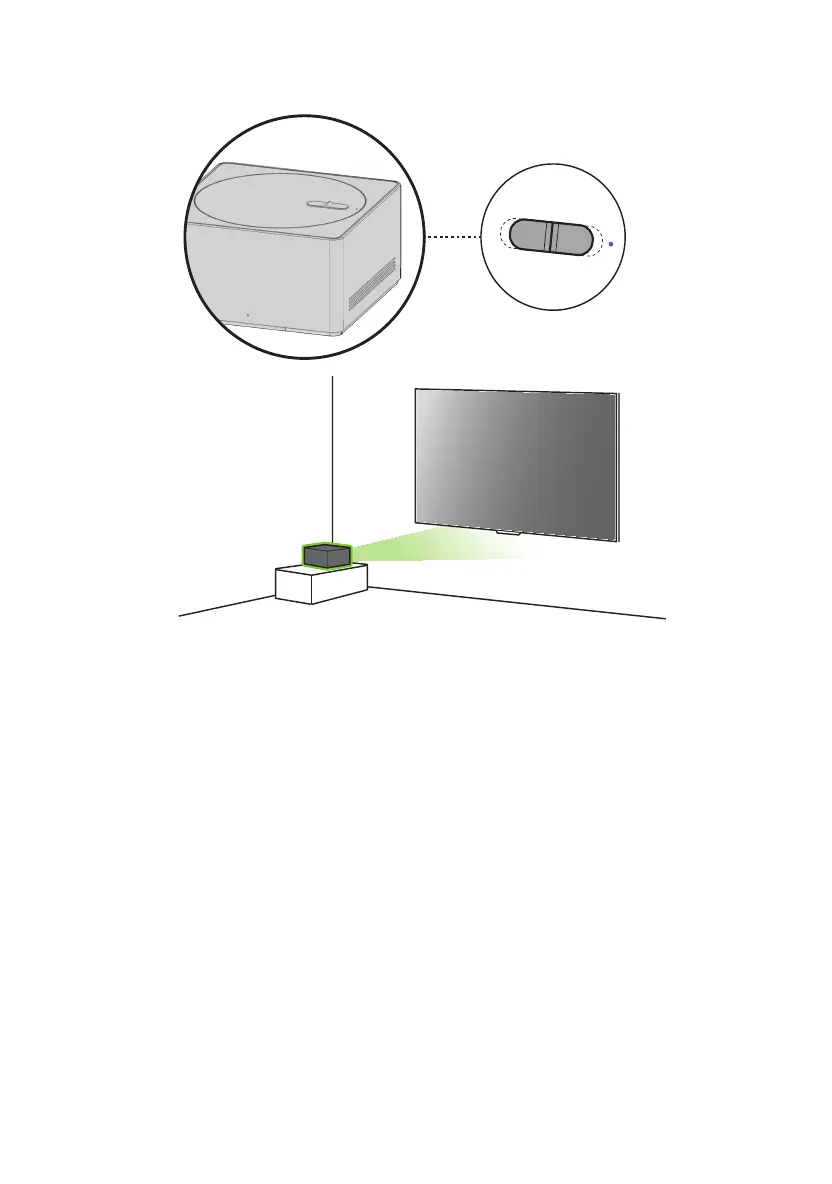

• Once the dial and sliding button adjustments are completed, the signal transmission and reception path should be in the green direction shown in the
figure.
• Ensure there are no obstacles in the antenna transmission and reception path.
Checking after turning on wireless TV
1 Once you have completed all settings, check that the color of the top LED of the Zero Connect Box is blue.
2 If the LED is not blue, adjust the dial and sliding button further to optimize the signal condition.
• It is recommended that the installation distance between the Zero Connect Box and the TV Screen be within 3 m (9.84feet). (provided that there are no
obstacles in the way)in the way)
* When using a floor stand, you need to adjust the position as wireless interference may occur due to the structure of the stand. (Adjust the position so that
the stand does not cover the wireless transmitter of the Zero Connect Box.)
