A9
Established
date
Revised
date
Error
symptom
Content
Standard Repair Process Detail Technical Manual
A9

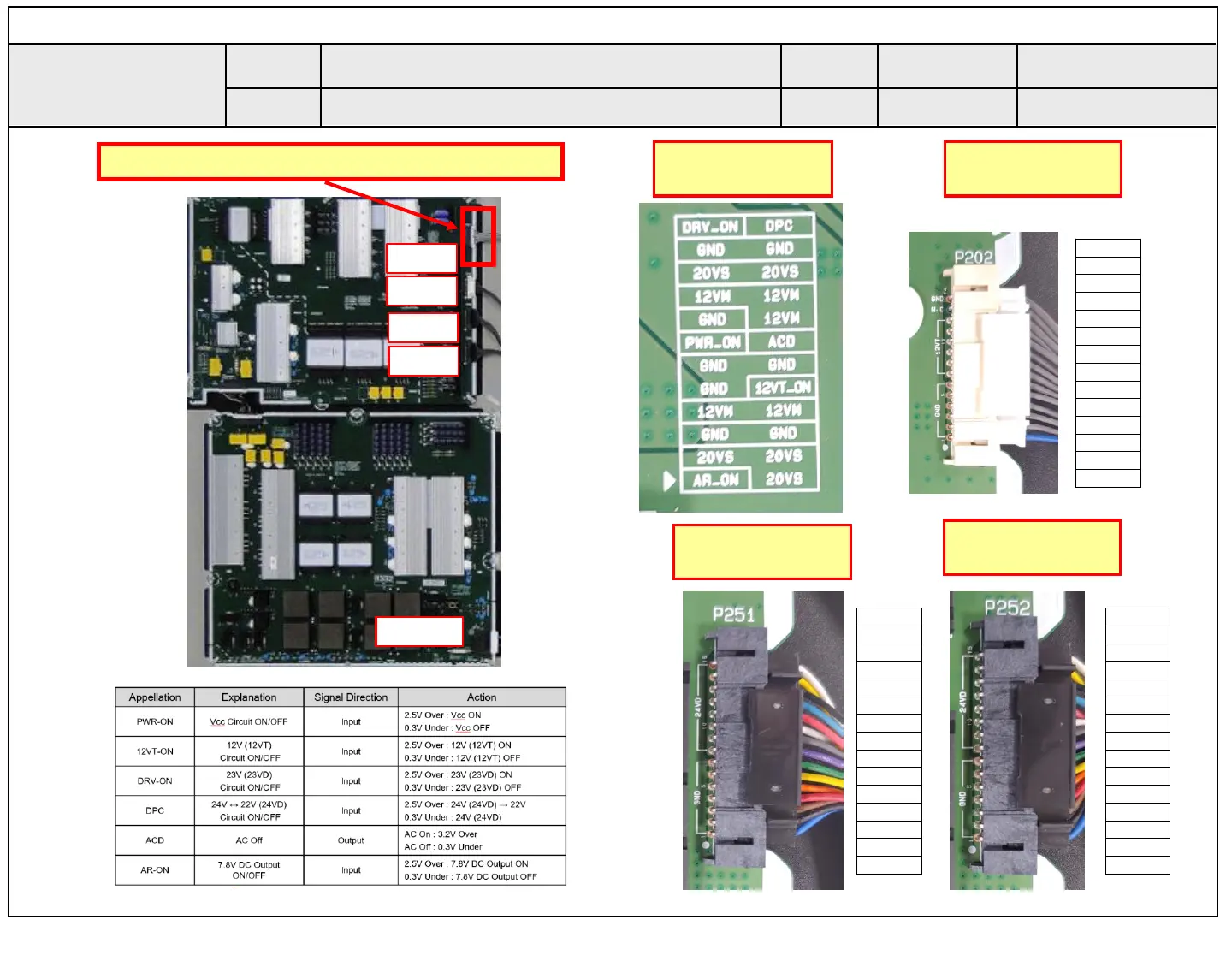

B. Power error_ No power
Check DC 12VM (ST-BY : 7.8V, Normal : 12V)
Power To Main B’d
(P201)
Power To T-Con
(P202)
Power To Module
(P251)
GND
N/C
12VT
12VT
12VT
12VT
12VT
12VT
GND
GND
GND
GND
GND
GND
24VD
24VD
24VD
24VD
24VD
24VD
24VD
24VD
GND
GND
GND
GND
GND
GND
GND
P201
P202
SK100
P251
P251
Power To Module
(P252)
24VD
24VD
24VD
24VD
24VD
24VD
24VD
24VD
GND
GND
GND
GND
GND
GND
GND
Check power output voltage and ST-BY Voltage
