LG OLED83G3 Series Service Manual

A14
Established
date
Revised
date
Error
symptom
Content
Standard Repair Process Detail Technical Manual
A14
③
Pin Pin name
1 +3.5V_WIFI
2 GND
3 COMBO_RESET
4 BT_WAKEUP_HOST
5 WOL/WIFI_POWER_ON
6 GND
7 +3.5V_WIFI
8 WIFI_DP
9 WIFI_SUSPEND/RESUME
10 WIFI_DM
11 GND
12 +3.5V_WIFI
13 No Connection
14 GND
15 LED_R
16 GND
17 IR
18 +3.5V_ST
19 GND
20 KEY2
21 EYE_SCL
22 WOV_PDM0_DATAIN
23 EYE_SDA
24 WOV_PDM_CLKOUT

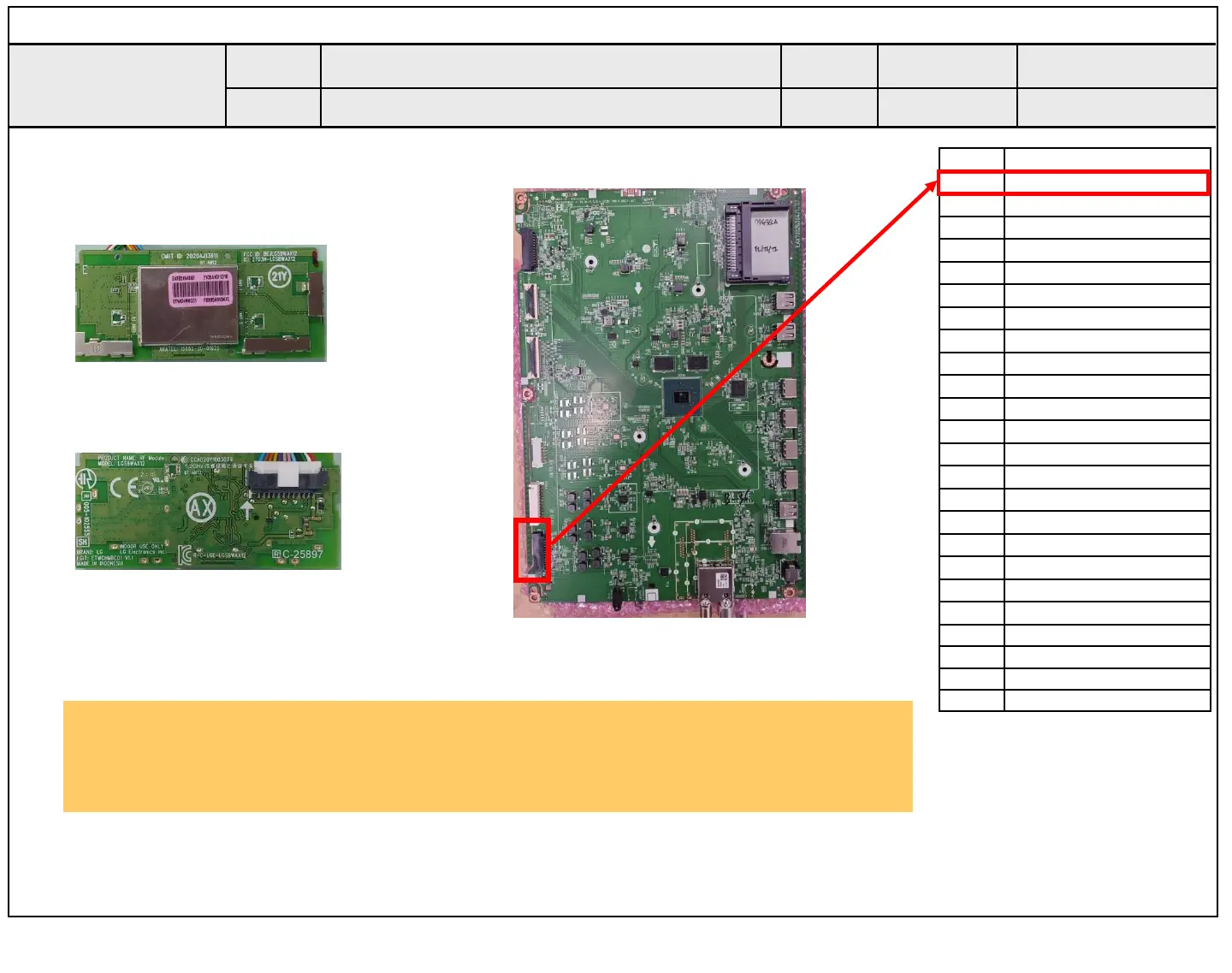

① Wifi & BT Front
Wifi & BT Rear
Magic Remote/WiFi operation checking method
Checking order
1.Check BT/Wifi cable condition between BT/Wifi assy & Main board.
2.Check the Main 3.5V on the terminal 1 pin
Checking order to check motion remote/wifi
D. Function error
Copyright © 2023 LG Electronics. Inc. All rights reserved.
Only for training and service purposes.
