LG RC7055*P*Z User Manual

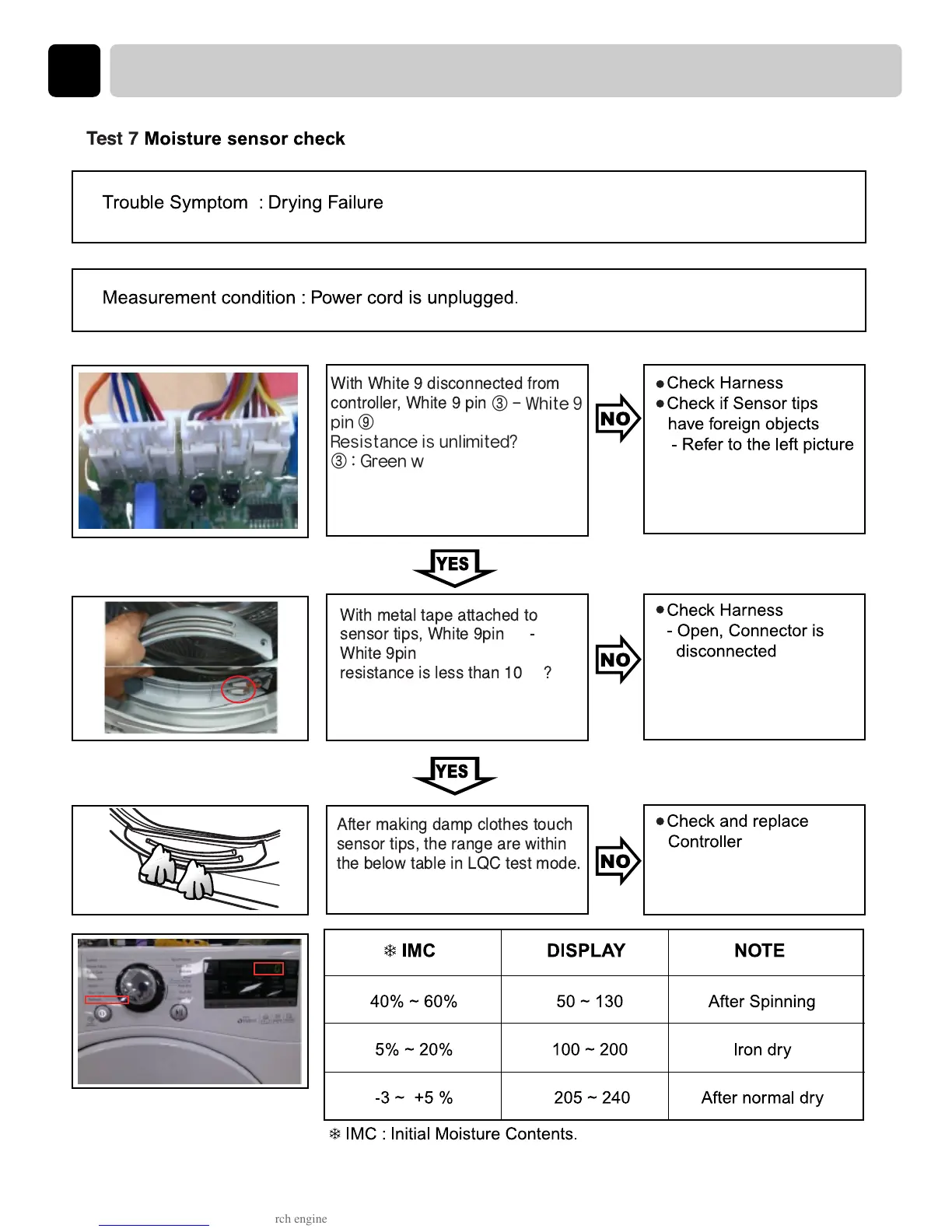

DIAGNOSTIC TEST
10
6AIJ %
With White 9 disconnected from
controller, White 9 pin ③ - White 9
pin ⑨
Resistance is unlimited?
③ : Green wire
⑨ : Orange wire
With metal tape attached to
sensor tips, White 9pin ③ -
White 9pin ⑨
resistance is less than 10 Ω ?
After making damp clothes touch
sensor tips, the range are within
the below table in LQC test mode.
