LG RC8055*P*Z User Manual

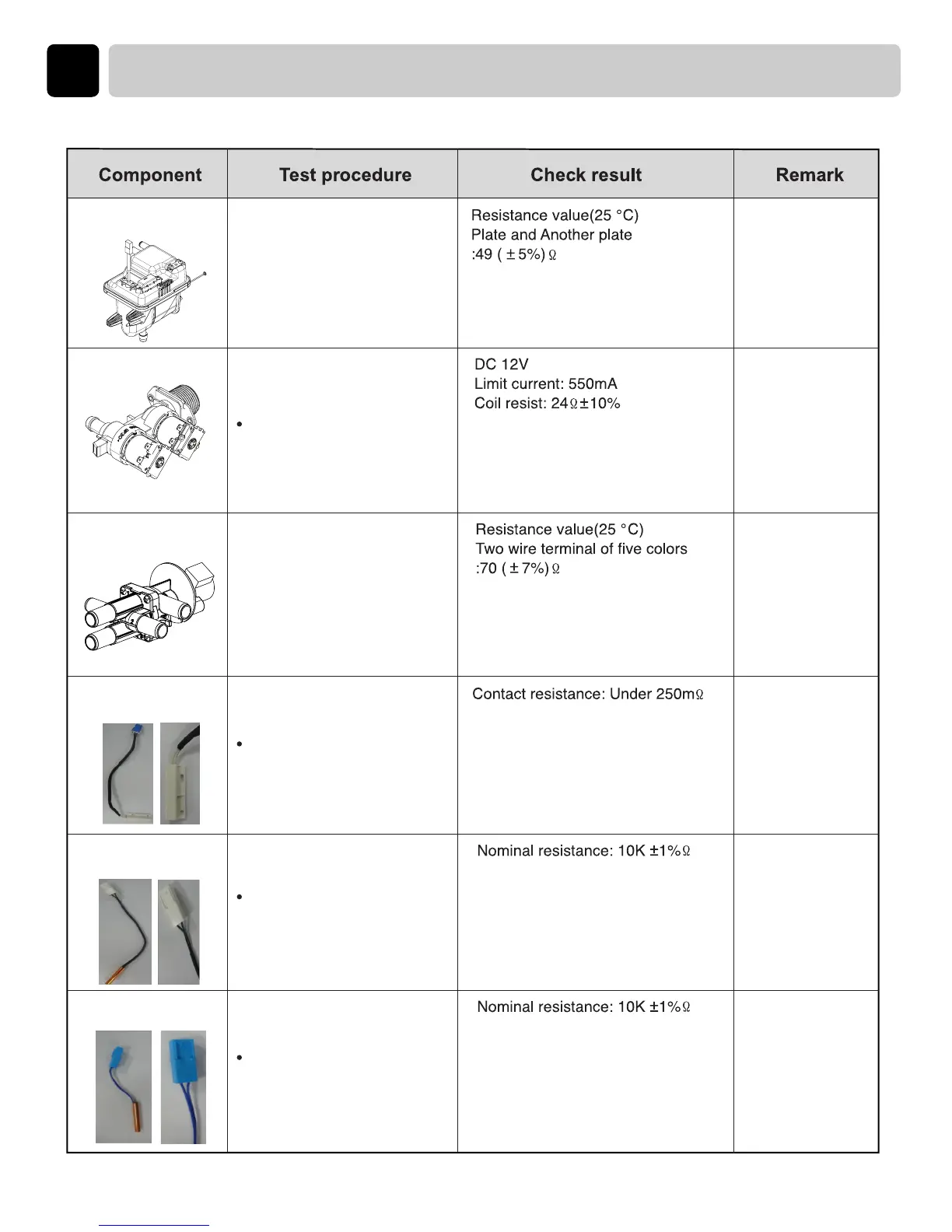

COMPONENT TESTING TIPS
7
13.Steam generator
Measure resistance of the
Terminal to terminal
Measure resistance of the
Following terminal
Measure resistance of the
Following terminal
White housing
-.2 wire (Two of five colors)
Measure resistance of the
Following terminal
Blue housing
-.2wire
Measure resistance of the
Following terminal
Measure resistance of the
Following terminal
14. Inlet. valve
15.Convert.valve
16.LID switch
17.Thermistor
(Comp out)
18.Thermistor
(Eva In)
Left picture
-.plate
White housing
-.2wire
Blue housing
-.2wire
17
