DIAGNOSTIC TEST
10

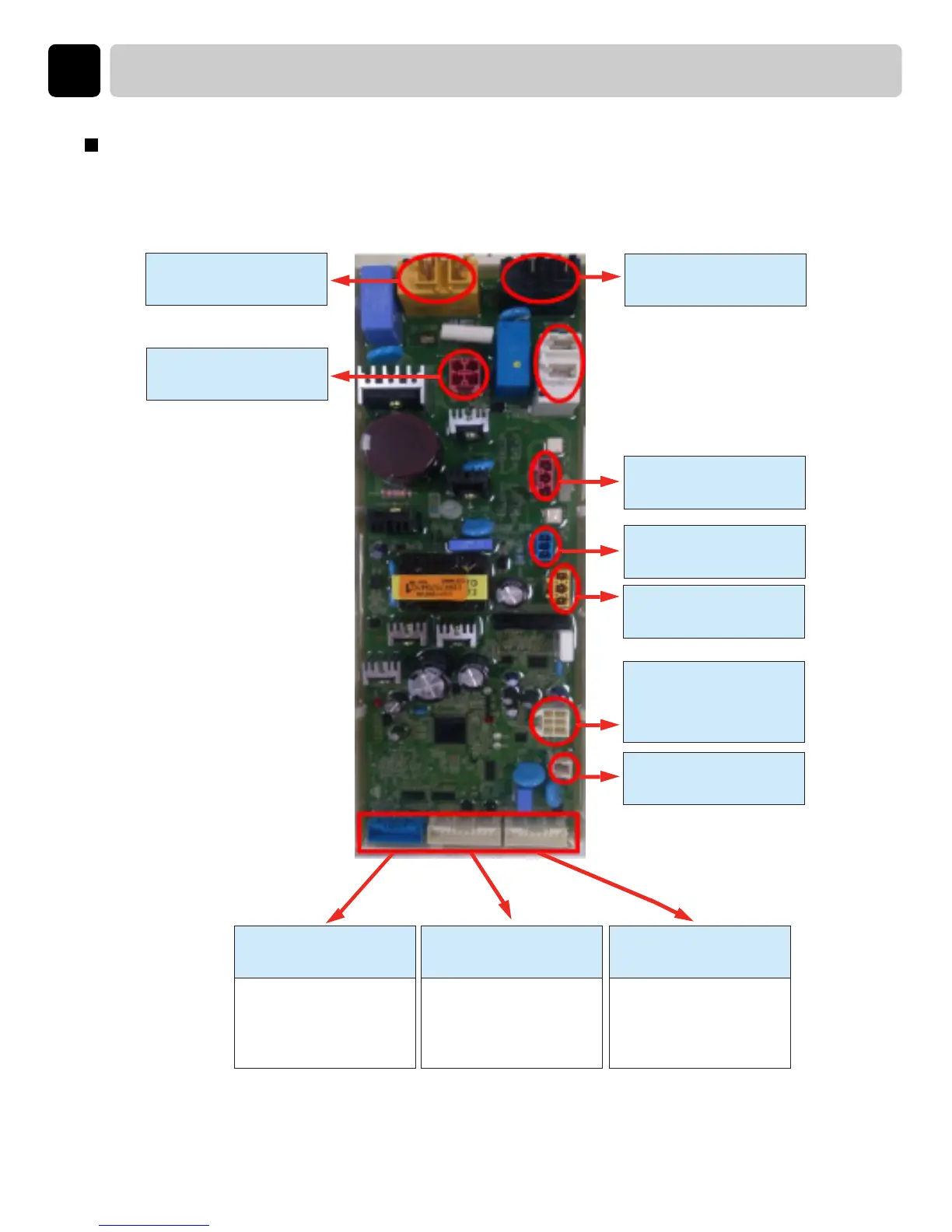

PCB Layout (Main)
Motor
Display Power
Compressor
PCB POWER
BLDC Pump
SUMP SENSING(No 1,4)
HIGH THERMISTOR(No 2,3)
COMP THERMISTOR(No 2,6)
EVA INLET THERMISTOR(No 2,5)
5V(No 2)
GROUND
BL(8PIN)
MAIN TO DISPLAY
COMUNICATION
Control Valve (No 2,3,4,5)
LEV (No 6,7,8,9)
COOLING FAN (No 10,11)
13V (No 1)
WH(11PIN) WH(9PIN)
DOOR LAMP (No 1,2)
FILTER SENSING (No 3,4)
LOW THERMISTOR (No 5,6)
ELECTRODE (No 3,9)
Door SW
36
