Installation Instructions
57
I
nstallation Instructions
Shape
and
assembly
direction
21.7 inch
(550mm)
Washer Top plate size
23.6 inch
(600mm)
Stacking Kit
In order to stack this dryer an LG stacking kit is
required.
This dryer may only be stacked on top of an LG wash-
er. DO NOT attempt to stack this dryer on any other
washer, as damage, injury or property damage could
result.

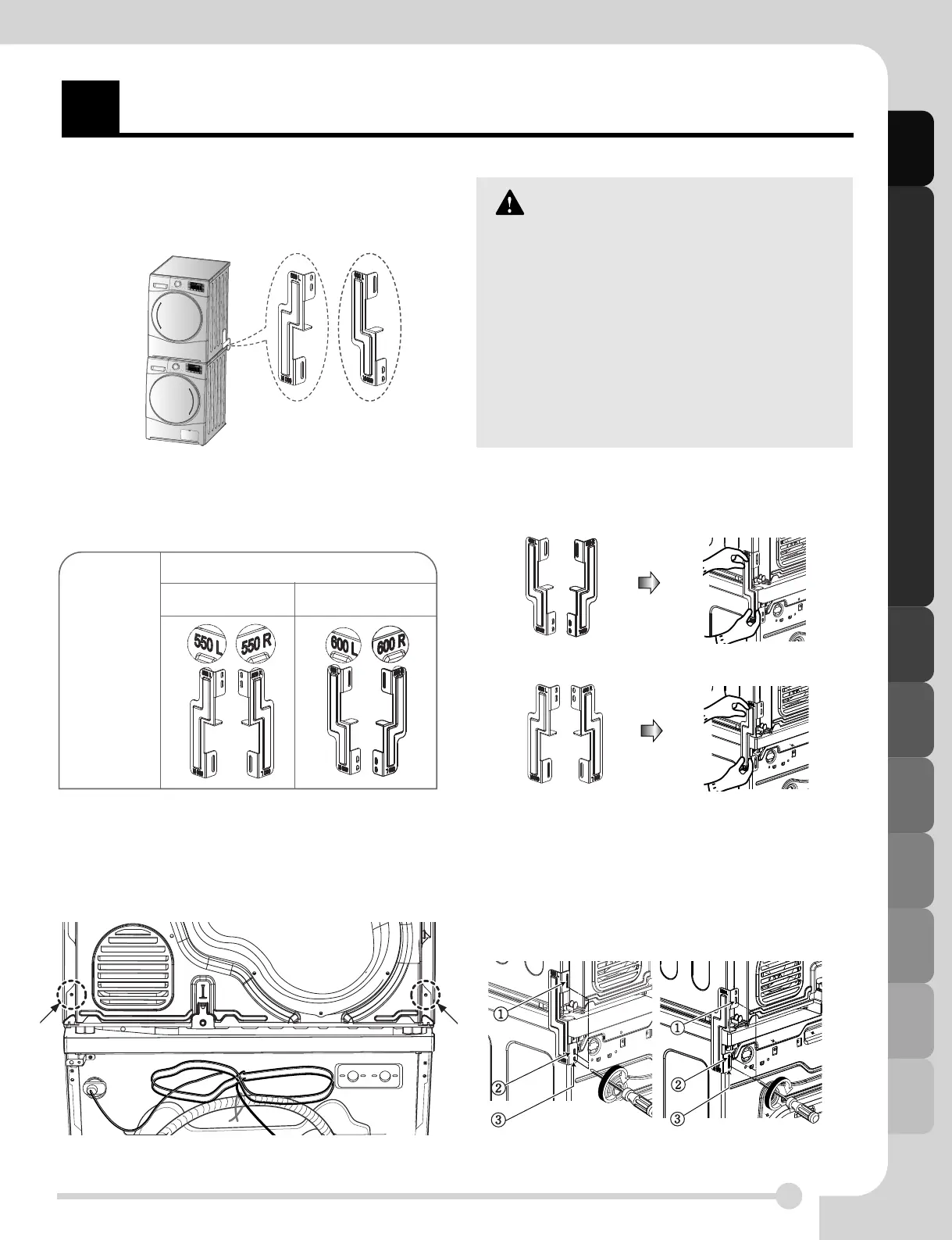

Installation Procedure
1. Place the LG dryer on the LG washing machine.
2. Remove the two screws from the bottom of the
rear cover on each side as illustrated below.
3. Align the stacking kit holes and the rear cover
holes.
3-1) 23.6 inch(600mm)
3-2) 21.7 inch(550mm)
• Fasten the 2 screws that were removed earlier
from dryer to stacking kit.
• Use 4 screws in accessory box [0.6inch(16mm)]
to assemble washer rear cover and stacking kit.
• The procedure for the opposite side will be the
same.
WARNING
• Incorrect installation can cause serious
accidents.
• The weight of the dryer and the height of
installation makes the stacking procedure
too risky for one person. This procedure
should be performed by 2 or more experi-
enced service personnel.
• The dryer is not suitable for a built-in instal-
lation. Please do not install as a built-in
appliance.
• Do not operate if the dryer is disassembled.
Dryer
Washer
To Next Page
