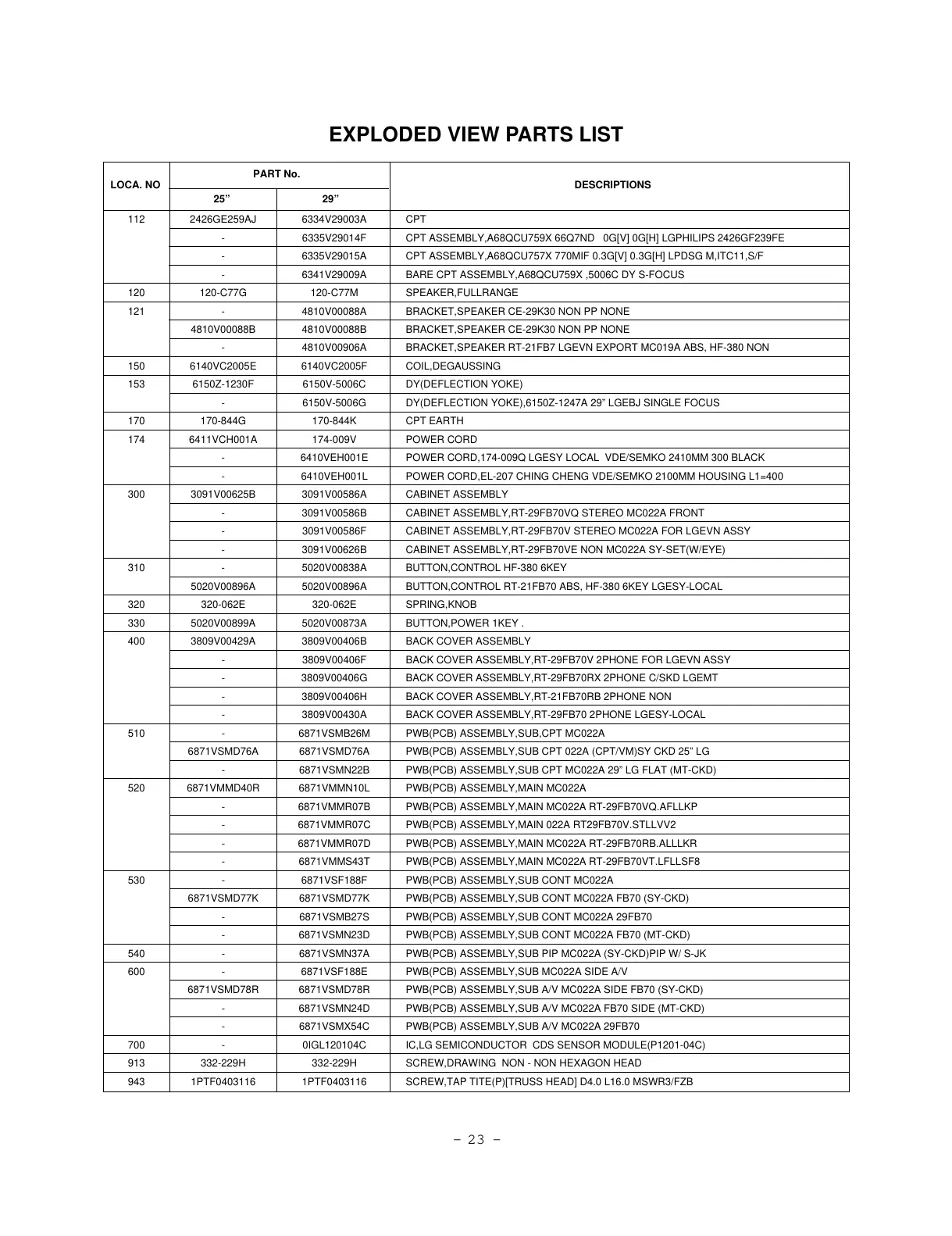

LG RT-29FB70RB - Exploded View Parts List

- 23 -
EXPLODED VIEW PARTS LIST
LOCA. NO
PART No.
25” 29”
DESCRIPTIONS
112 2426GE259AJ 6334V29003A CPT
- 6335V29014F CPT ASSEMBLY,A68QCU759X 66Q7ND 0G[V] 0G[H] LGPHILIPS 2426GF239FE
- 6335V29015A CPT ASSEMBLY,A68QCU757X 770MIF 0.3G[V] 0.3G[H] LPDSG M,ITC11,S/F
- 6341V29009A BARE CPT ASSEMBLY,A68QCU759X ,5006C DY S-FOCUS
120 120-C77G 120-C77M SPEAKER,FULLRANGE
121 - 4810V00088A BRACKET,SPEAKER CE-29K30 NON PP NONE
4810V00088B 4810V00088B BRACKET,SPEAKER CE-29K30 NON PP NONE
- 4810V00906A BRACKET,SPEAKER RT-21FB7 LGEVN EXPORT MC019A ABS, HF-380 NON
150 6140VC2005E 6140VC2005F COIL,DEGAUSSING
153 6150Z-1230F 6150V-5006C DY(DEFLECTION YOKE)
- 6150V-5006G DY(DEFLECTION YOKE),6150Z-1247A 29” LGEBJ SINGLE FOCUS
170 170-844G 170-844K CPT EARTH
174 6411VCH001A 174-009V POWER CORD
- 6410VEH001E POWER CORD,174-009Q LGESY LOCAL VDE/SEMKO 2410MM 300 BLACK
- 6410VEH001L POWER CORD,EL-207 CHING CHENG VDE/SEMKO 2100MM HOUSING L1=400
300 3091V00625B 3091V00586A CABINET ASSEMBLY
- 3091V00586B CABINET ASSEMBLY,RT-29FB70VQ STEREO MC022A FRONT
- 3091V00586F CABINET ASSEMBLY,RT-29FB70V STEREO MC022A FOR LGEVN ASSY
- 3091V00626B CABINET ASSEMBLY,RT-29FB70VE NON MC022A SY-SET(W/EYE)
310 - 5020V00838A BUTTON,CONTROL HF-380 6KEY
5020V00896A 5020V00896A BUTTON,CONTROL RT-21FB70 ABS, HF-380 6KEY LGESY-LOCAL
320 320-062E 320-062E SPRING,KNOB
330 5020V00899A 5020V00873A BUTTON,POWER 1KEY .
400 3809V00429A 3809V00406B BACK COVER ASSEMBLY
- 3809V00406F BACK COVER ASSEMBLY,RT-29FB70V 2PHONE FOR LGEVN ASSY
- 3809V00406G BACK COVER ASSEMBLY,RT-29FB70RX 2PHONE C/SKD LGEMT
- 3809V00406H BACK COVER ASSEMBLY,RT-21FB70RB 2PHONE NON
- 3809V00430A BACK COVER ASSEMBLY,RT-29FB70 2PHONE LGESY-LOCAL
510 - 6871VSMB26M PWB(PCB) ASSEMBLY,SUB,CPT MC022A
6871VSMD76A 6871VSMD76A PWB(PCB) ASSEMBLY,SUB CPT 022A (CPT/VM)SY CKD 25” LG
- 6871VSMN22B PWB(PCB) ASSEMBLY,SUB CPT MC022A 29” LG FLAT (MT-CKD)
520 6871VMMD40R 6871VMMN10L PWB(PCB) ASSEMBLY,MAIN MC022A
- 6871VMMR07B PWB(PCB) ASSEMBLY,MAIN MC022A RT-29FB70VQ.AFLLKP
- 6871VMMR07C PWB(PCB) ASSEMBLY,MAIN 022A RT29FB70V.STLLVV2
- 6871VMMR07D PWB(PCB) ASSEMBLY,MAIN MC022A RT-29FB70RB.ALLLKR
- 6871VMMS43T PWB(PCB) ASSEMBLY,MAIN MC022A RT-29FB70VT.LFLLSF8
530 - 6871VSF188F PWB(PCB) ASSEMBLY,SUB CONT MC022A
6871VSMD77K 6871VSMD77K PWB(PCB) ASSEMBLY,SUB CONT MC022A FB70 (SY-CKD)
- 6871VSMB27S PWB(PCB) ASSEMBLY,SUB CONT MC022A 29FB70
- 6871VSMN23D PWB(PCB) ASSEMBLY,SUB CONT MC022A FB70 (MT-CKD)
540 - 6871VSMN37A PWB(PCB) ASSEMBLY,SUB PIP MC022A (SY-CKD)PIP W/ S-JK
600 - 6871VSF188E PWB(PCB) ASSEMBLY,SUB MC022A SIDE A/V
6871VSMD78R 6871VSMD78R PWB(PCB) ASSEMBLY,SUB A/V MC022A SIDE FB70 (SY-CKD)
- 6871VSMN24D PWB(PCB) ASSEMBLY,SUB A/V MC022A FB70 SIDE (MT-CKD)
- 6871VSMX54C PWB(PCB) ASSEMBLY,SUB A/V MC022A 29FB70
700 - 0IGL120104C IC,LG SEMICONDUCTOR CDS SENSOR MODULE(P1201-04C)
913 332-229H 332-229H SCREW,DRAWING NON - NON HEXAGON HEAD
943 1PTF0403116 1PTF0403116 SCREW,TAP TITE(P)[TRUSS HEAD] D4.0 L16.0 MSWR3/FZB
