• RT-44/49/54A85 series
1. MAIN POWER
switches the set on or off.
2. REMOTE CONTROL SENSOR
3. FF / GG (Volume Up/Down)
adjusts the volume.
adjusts menu settings.
DD
/
EE
(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
4. POWER/STANDBY INDICATOR
illuminates brightly when the set is in standby
mode.
dims when the set is switched on.
5. MUTE
switches the sound on or off.
6. MENU
selects a menu.
7. OK
accepts your selection or displays the current
mode.
8. TV/AV
selects TV or AV mode.
clears the menu / text from the screen.
switches the set on from standby.
9. LCD (Liquid Crystal Diode) DISPLAY
10. INDEX
switches LED DISPLAY on or off.
11. LED (Light Emitting Diode) DISPLAY
illuminates brightly when the set is switched on.
Option : Only RT-40NZ60 series,
:
PAL/SECAM input signal indicator
: NTSC input signal indicator
: STEREO sound indicator
: SLEEP timer indicator
: CHILD LOCK setting indicator
12. AUDIO/VIDEO IN SOCKETS (AV3)
Connect the audio/video out sockets of exter-
nal equipment to these sockets.
S-VIDEO/AUDIO IN SOCKETS (S-AV)
Connect the video out socket of an S-VIDEO
VCR to the S-VIDEO socket.
Connect the audio out sockets of the S-
VIDEO VCR to the audio sockets as in AV3.
13. CENTRE SPEAKER (RT-48/53A82 series only)
LEFT/RIGHT LOUD-SPEAKERS
Only in PT-49/54A85 series model, the
left/right loud-speakers are detachable and
need to be connected to the SPEAKER OUT
sockets on the back panel of the set as indi-
cated by red (+) and black (-) knobs.
Note : Before placing the speakers, screw the
speaker legs to the holes on them.
*
CASTERS (on the bottom)
turn and move the set easily.

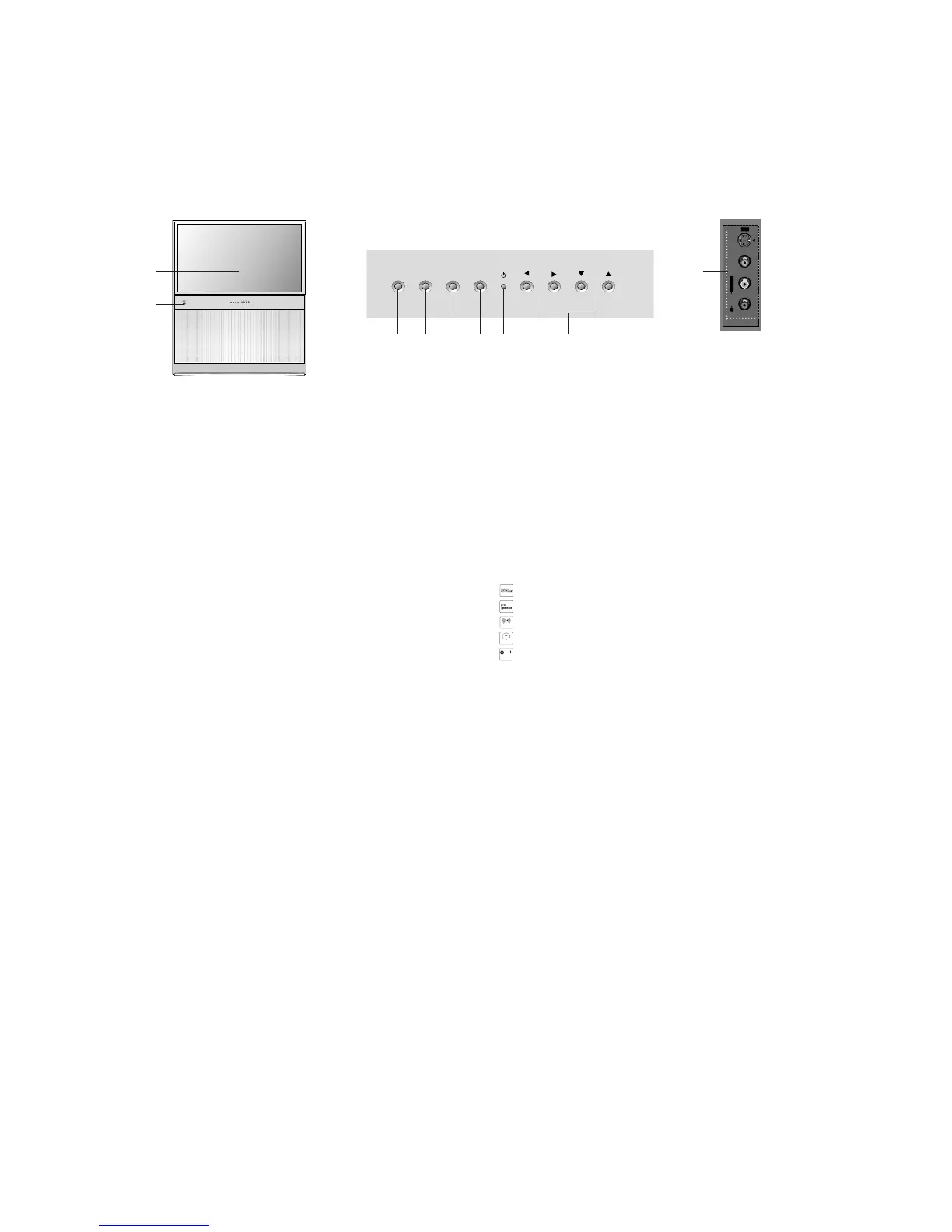

Front panel
