LG SxS GR-B207 - Switch Entry and Option Designation Circuits

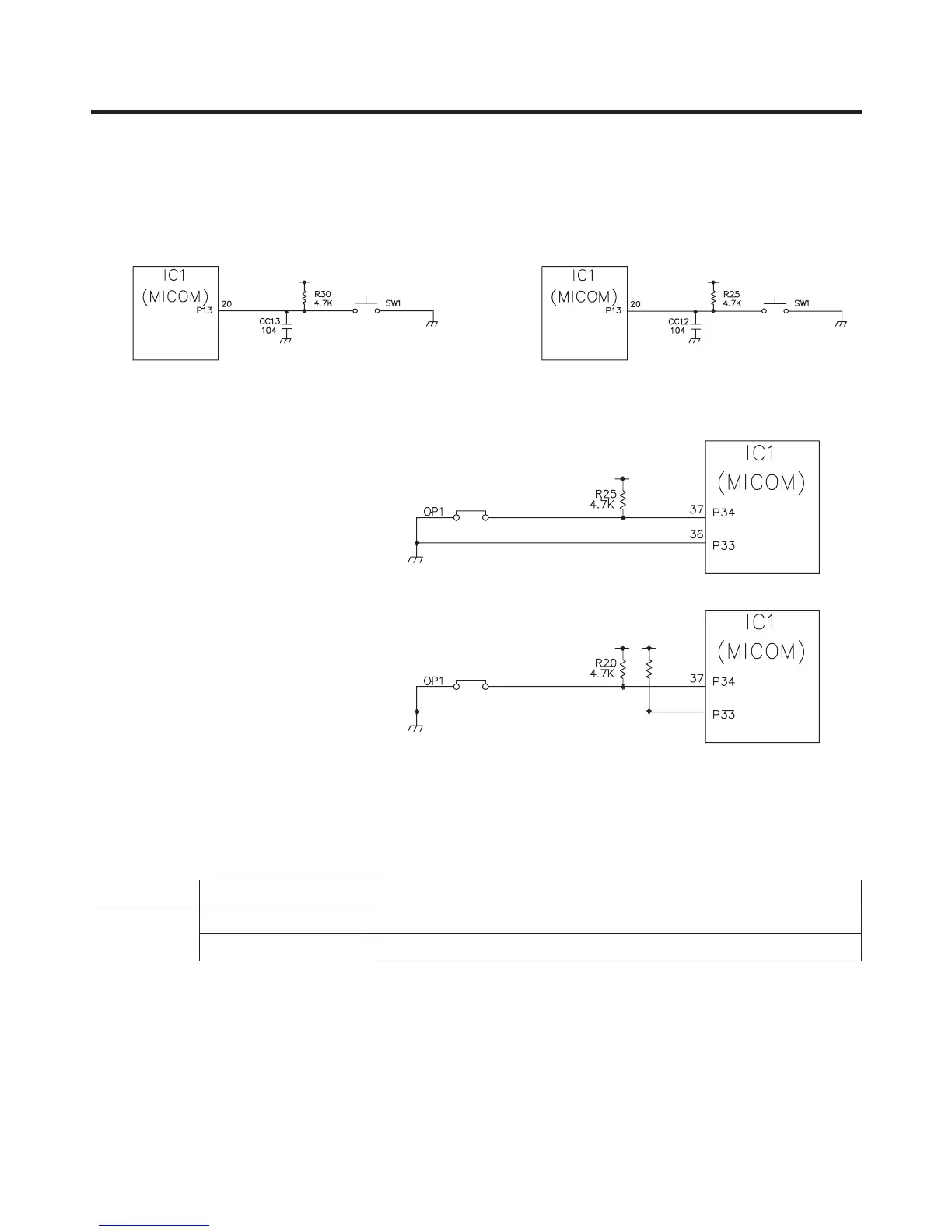

1-6. Switch entry circuit
The following circuits are entry circuits for sensing signal form test S/W, electronic single motor damper reed S/W for
examining refrigerator.
1) GR-P247, L247, P207, L207 2) GR-C247, B247, C207, B207
1-7. Option designation circuit (model separation function)
1) GR-P247, L247, P207, L207
2) GR-C247, B247, C207, B207
The above circuits are used for designating separation by model as option and notifying it to MICOM. Designation of option
by model and the application standards are as follows:
u These circuits are accurately pre-adjusted in shipment from factory and so you must not additionally add or remove
option.
EXPLATION FOR MICOM CIRCUIT
- 41 -
36
R21
4.7K
Separation Connection Status Application Standard
Connection Export model
OP1
OUT Domestic model
