LG SxS GR-B207 - Temperature Compensation Circuits

1-10. Temperature compensation and over-cool/weak-cool compensation circuit
1. Temperature compensation at freezing room, cold storage room
1) GR-P247, L247, P207, L207
2) GR-C247, B247, C207, B207
u Temperature compensation table by adjustment value (difference value against current temperature)
Ex) If changing compensation resistance at a cold storage room (RCR1) from 10 kΩ (current resistance) to 18 kΩ
(modified resistance), temperature at the cold storage will increase by +1°C.
EXPLATION FOR MICOM CIRCUIT
- 45 -

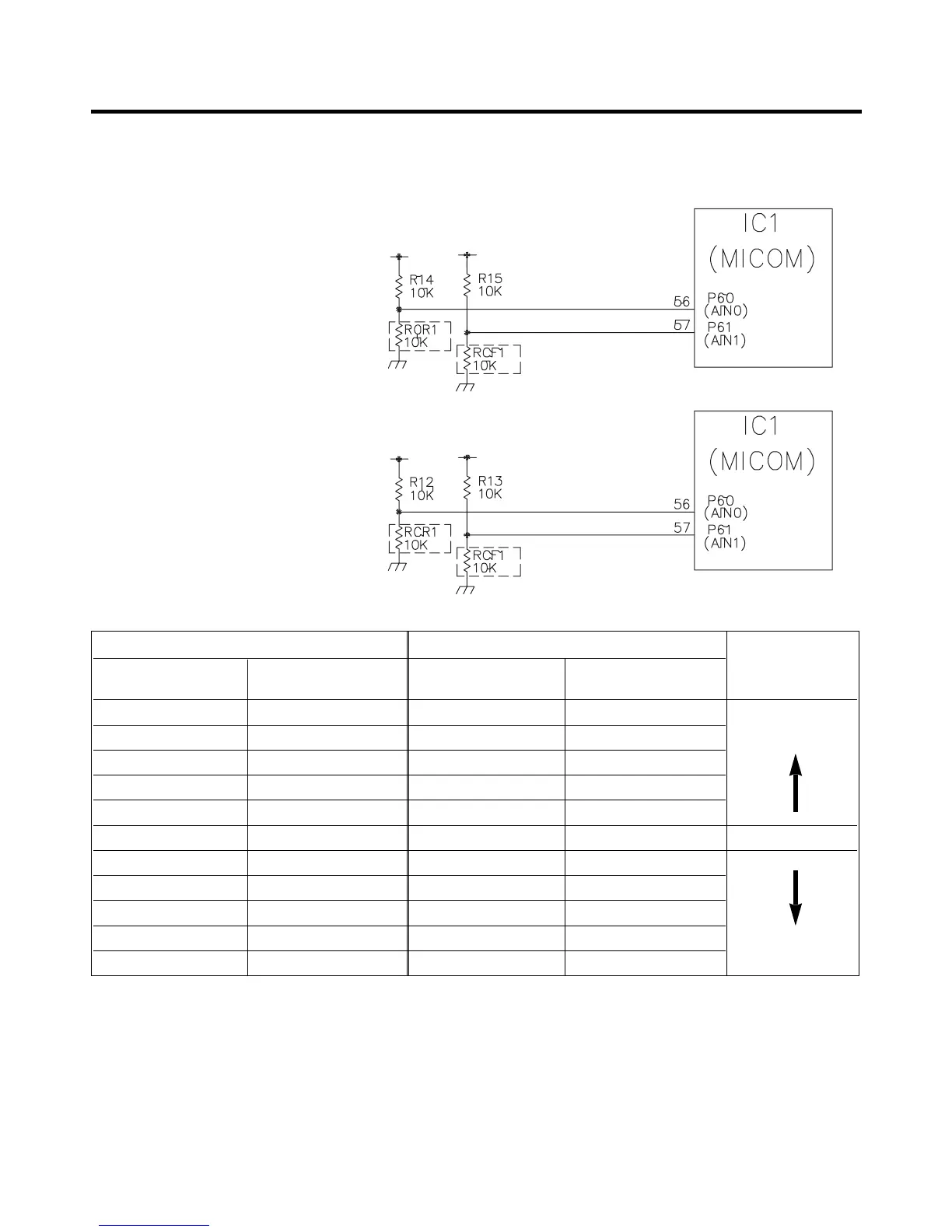

Temperature compensation at R-room
Temperature compensation at F-room
Temperature compensation at R-room
Temperature compensation at F-room
Freezing room Cold storage room
Resistance value Temperature Resistance value Temperature Remarks
(RCF1) compensation (RCR1) compensation
180 kΩ +5 °C 180 kΩ +2.5 °C Warmly
56 kΩ +4 °C 56 kΩ +2.0 °C compensate
33 kΩ +3 °C 33 kΩ +1.5 °C
18 kΩ +2 °C 18 kΩ +1.0 °C
12 kΩ +1 °C 12 kΩ +0.5 °C
10 kΩ 0 °C 10 kΩ 0 °C Reference temperature
8.2 kΩ -1 °C 8.2 kΩ -0.5 °C
5.6 kΩ -2 °C 5.6 kΩ -1.0 °C
3.3 kΩ -3 °C 3.3 kΩ -1.5 °C
2 kΩ -4 °C2 kΩ -2.0 °C Coolly
470 Ω -5 °C 470 Ω -2.5 °C compensate
