MAKING CONNECTIONS

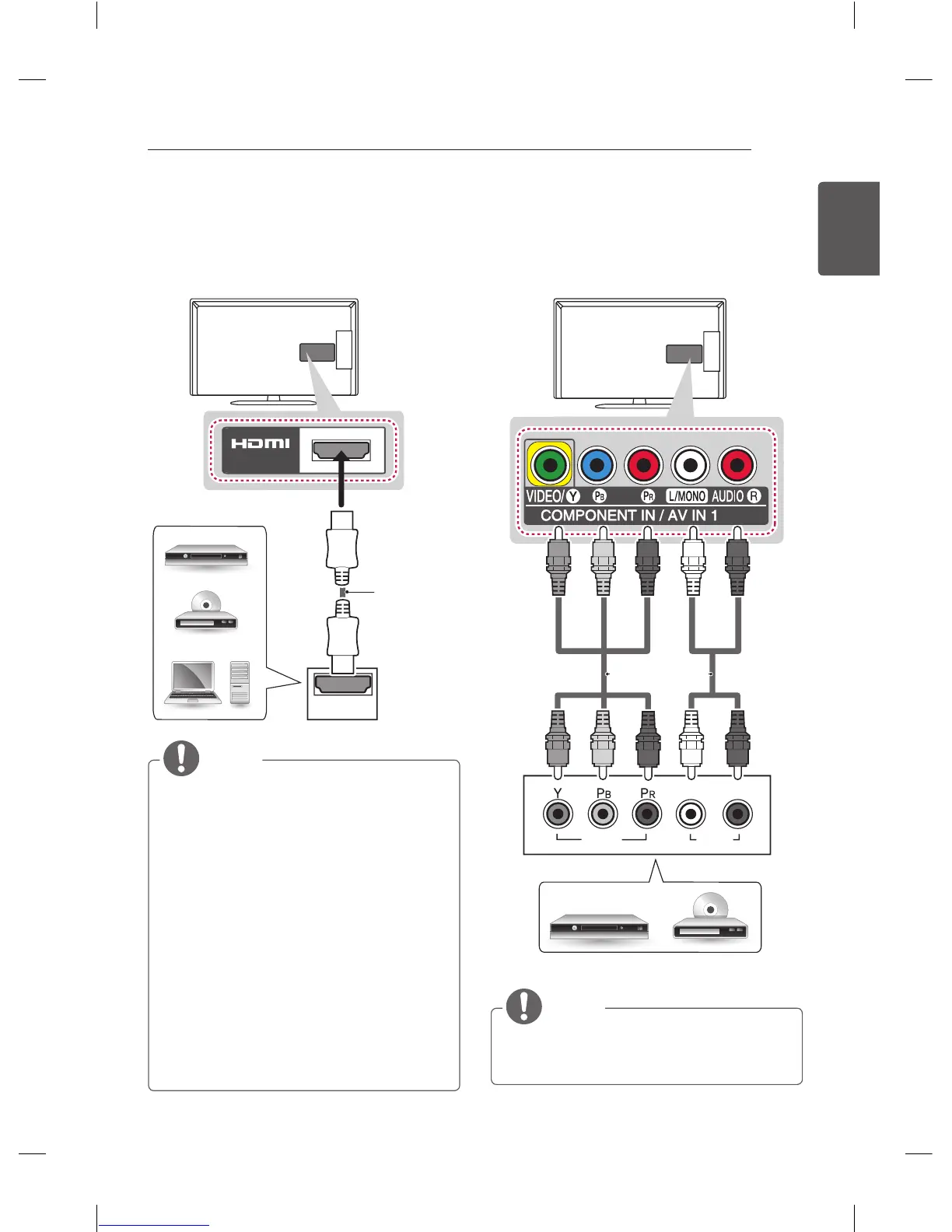

HDMI connection
Transmits the digital video and audio signals
from an external device to the TV. Connect the
external device and the TV with the HDMI cable
as shown.
(*Not
Provided)
DVD/ Blu-Ray / HD Cable
Box / HD STB / PC
NOTE
It is recommended to use the TV with
the HDMI connection for the best image
quality.
Use the latest High Speed HDMI™ Cable
with CEC (Customer Electronics Control)
function.
High Speed HDMI™ Cables are tested
to carry an HD signal up to 1080p and
higher.
Supported HDMI Audio format : Dolby
Digital, DTS, PCM (Up to 192kHz, 32kHz
/44.1kHz/48kHz/88kHz/96kHz/176kHz/
192kHz) (Only LA61**, LN565*)
Supported HDMI Audio format : Dolby
Digital, PCM (Up to 192kHz, 32kHz/
44.1kHz/48kHz/88kHz/96kHz/176kHz/
192kHz)
*DTS Not Supported. (Only LN54**)
If you use DVI to HDMI cable for PC,
you have to use external speaker for PC
audio sound.
Component connection
Transmits analog video and audio signals
from an external device to the TV. Connect the
external device and the TV with a component
cable as shown.
DVD/ Blu-Ray / HD Cable Box
GREEN
BLUE
RED
RED
WHITE
GREEN
BLUE
RED
RED
WHITE
(*Not Provided)
NOTE
If cables are not installed correctly, it
could cause this image to display in black
and white or with distorted colours.
