Installation Instructions
8
s
n
o
i
tcurts
n
In
o
itall
a
tsnI
To prevent vibration and noise, make sure
the unit is installed securely and firmly.
Install the unit where the sunlight does not
shine directly on the unit.
There should be no obstacle, such as a
fence or wall, within 50cm from the back of
the cabinet because it will prevent heat
radiation of the condenser.
Restriction of outside air will greatly reduce
the cooling efficiency of the air conditioner.
Install the unit a little obliquely outward not to
leak the condensed water into the room
(about 5 ~ 10mm or 1/4 bubble with level).
CAUTION: All side louvers of the cabinet must
remain exposed to the outside of
the structure.
B
C
D
A

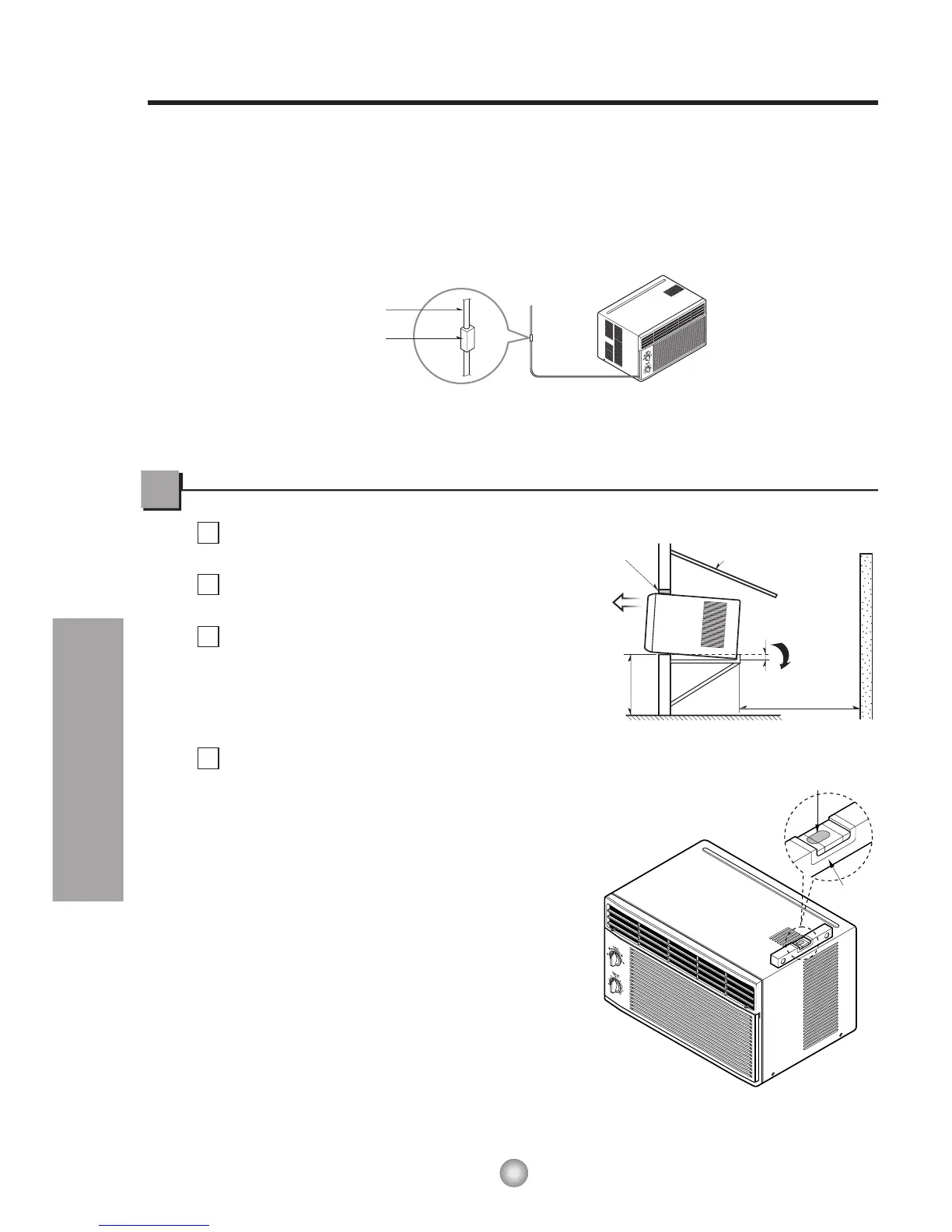

Select the Best Location
Read completely, then follow step by step.
• The appliance shall be installed in accordance with national wiring regulation.
• If a power plug isn't to be used, provide a circuit breaker between power source and the unit, as following
picture.
