LG WD-10150NUP - Dispenser Assembly

25
󰾂󰾂

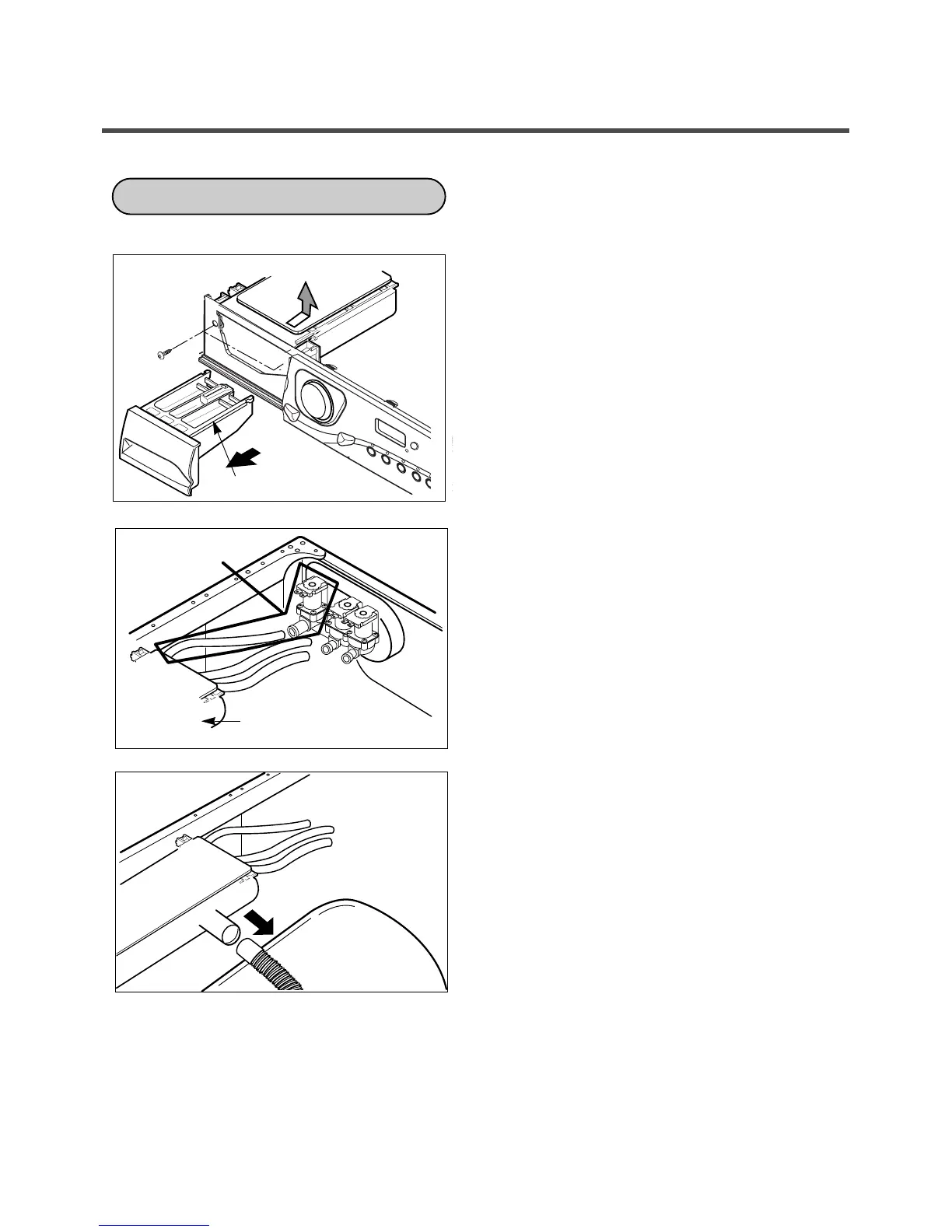

Disassemble the top plate assembly.
󰾃󰾃
Pull out the drawer to arrow direction.
󰾄󰾄
Unscrew 2 screws.
󰾂󰾂
The hose clamps and the hose are disassembled.
󰾂󰾂
The ventilation bellows and the water inlet bellows are
disassembled on the tub.
Option
DISPENSER ASSEMBLY
DISPENSER ASSEMBLY
DRAWER
