9. DISASSEMBLY INSTRUCTIONS
󳢬 Disassemble and repair the parts after pulling out power cord from the outlet.

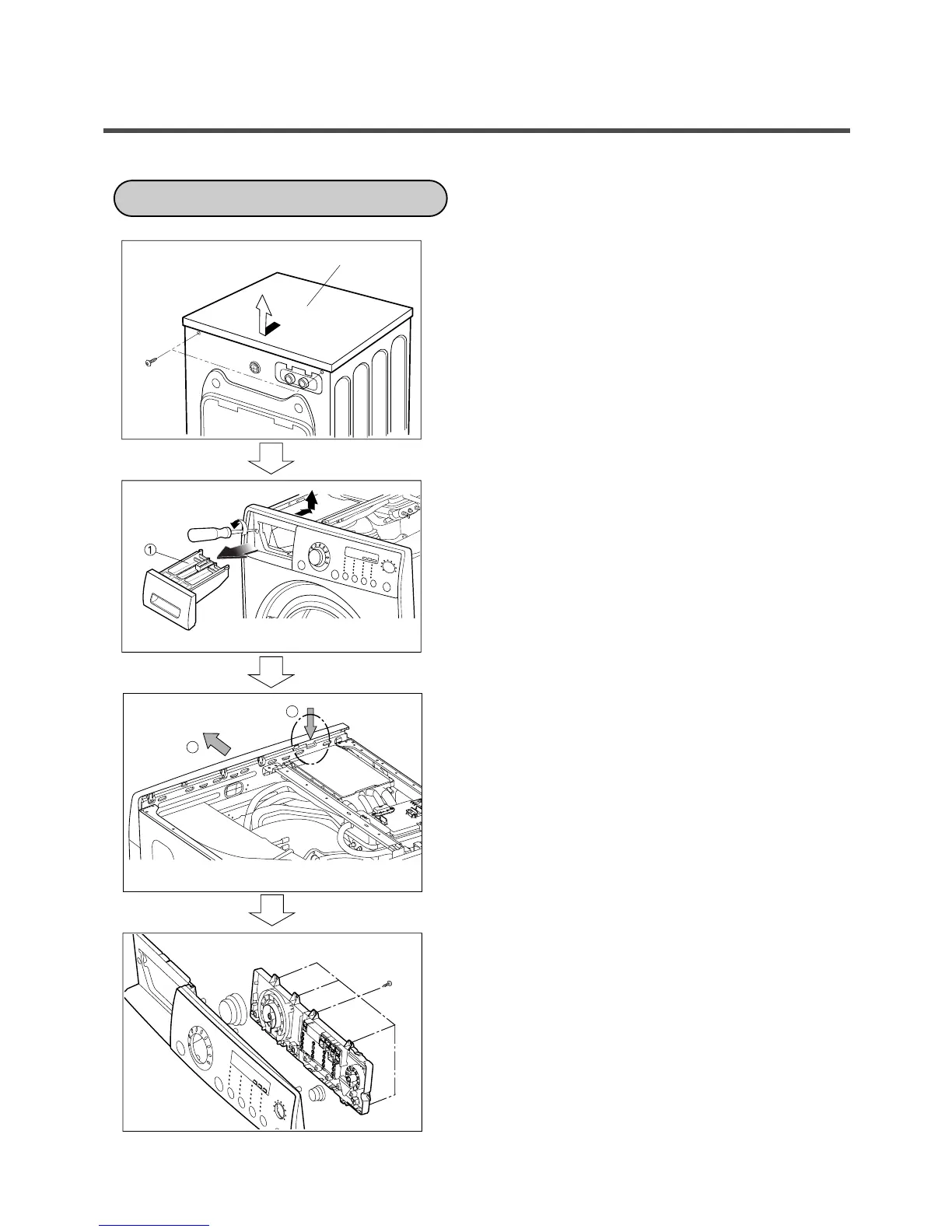

①①
Unscrew 2 screws on the back of the top plate.
②②
Pull the top plate backward and upward as shown.
①①
Pull out the drawer and unscrew 2 screws.
②②
Lift the side the Control Panel Assembly and pull it out
①①
Push out PANEL ASSEMBLY,CONTROL after Push
the hook(
①①
) below.
①①
Unscrew the 10 screws from the Control Panel
Assembly.
②②
Disassemble the Display PWB Assembly.
TOP PLATE ASSEMBLY
DRAWER PANEL ASSEMBLY
1
2
PANEL ASSEMBLY, CONTROL
PWB ASSEMBLY(DISPLAY)
PANEL ASSEMBLY, CONTROL
30
