Connecting Water Supply Hose
29
Before connecting the Water Supply Hose to the water tap, check the hose type and then choose the
correct instruction here under.
Note that the Water Supply Hose supplied may vary from country to country, Make sure to connect the
blue inlet hose to the COLD water tap, and the orange inlet hose to the HOT water tap.
Connecting Water Supply Hose to water tap
Connector
Connector
Water
Supply Hose
screw

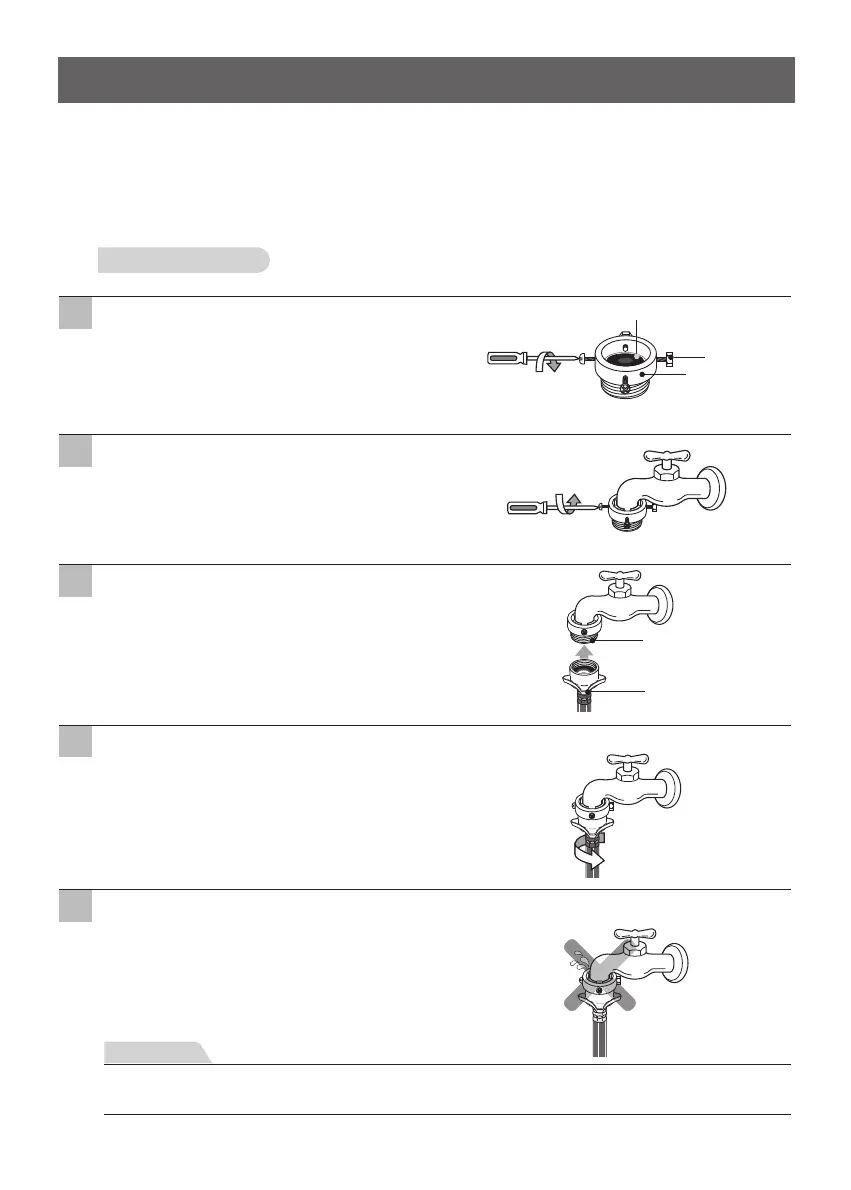

Untighten the screw
Untighten the screw of the connector so that the
tap can be placed in the middle.
Fixing the connector to the tap
Push the upper connector up till the rubber
packing is in tight contact with the tap. Then
tighten the 4 screws.
Attach the water supply hose securely to the
connector
Push the water supply hose vertically upwards so
that the rubber seal within the hose can adhere
completely to the tap.
Check the connection of water supply hose and the connector
After connecting the hose, open the tap to check
for any water leakage.
If the water leaks, close the tap and start again
from step 1
Fixing the connector to the water supply hose
Attach the water supply hose to the connector and
then tighten it by screwing it to the right.
Normal Type
(Normal tap without thread & screw type inlet hose.)
1
2
3
4
5
Rubber packing
NOTE
The washing machine is to be connected to the water mains using new hose-sets and old hose-sets should
not be reused.
