Connecting Drain Hose
32

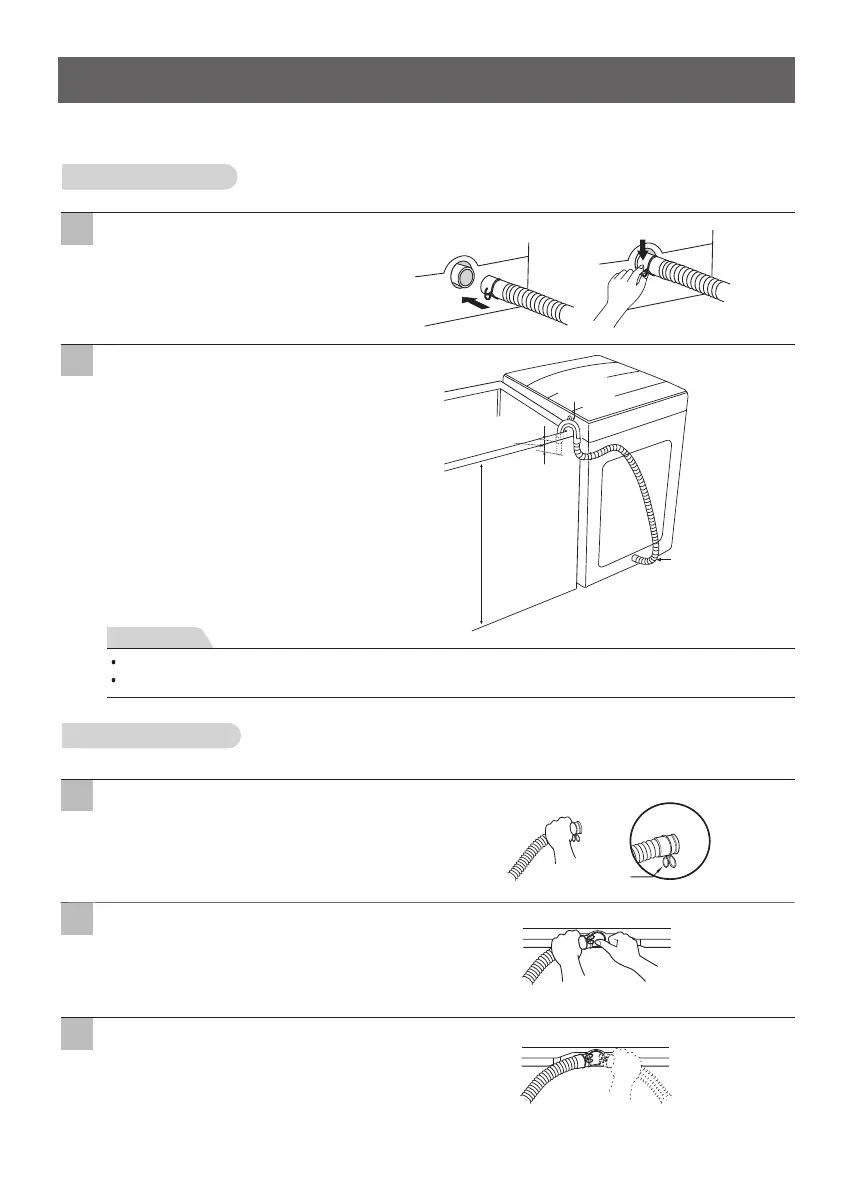

Before connecting the Drain Hose, check your Drain Hose model and choose the correct instructions.
Hose
Guide
0.9~1.2m
Drain Hose
Within 50mm
Put the other end of the drain hose over the standpipe or
wash tub.
2
Fit the end of the drain hose to the outlet of the
drain pump and secure the clamp.
Pump Model
Hose
Guide
0.9~1.2m
Drain Hose
Wit
hin
50mm
To prevent siphoning, the drain hose should not extend more than 50 mm from the end of the hose guide.
The discharge height should be approximately 0.9 ~ 1.2 m from the floor.
NOTE
Before connecting
Ensure that the hose clip is set as indicated here.
Connect the Elbow Hose
Push the elbow hose toward the body of the wash-
ing machine.
Non-Pump Model
Place the Drain Hose
To change the direction of the hose, pull out the
elbow hose and change the direction.
Repeat Step 2.
Clip
1
1
2
3
Hose
Guide
0.9~1.2m
Drain Hose
Within 50mm
Hose
Guide
0.9~1.2m
Drain Hose
With
in
5
0
mm
Hose
Guide
0.9~1.2m
Drain Hose
With
in
5
0
mm
