CONTROL PANEL ASSEMBLY
Be sure to unplug the machine out of the outlet before disassembling and repairing the parts.
①①

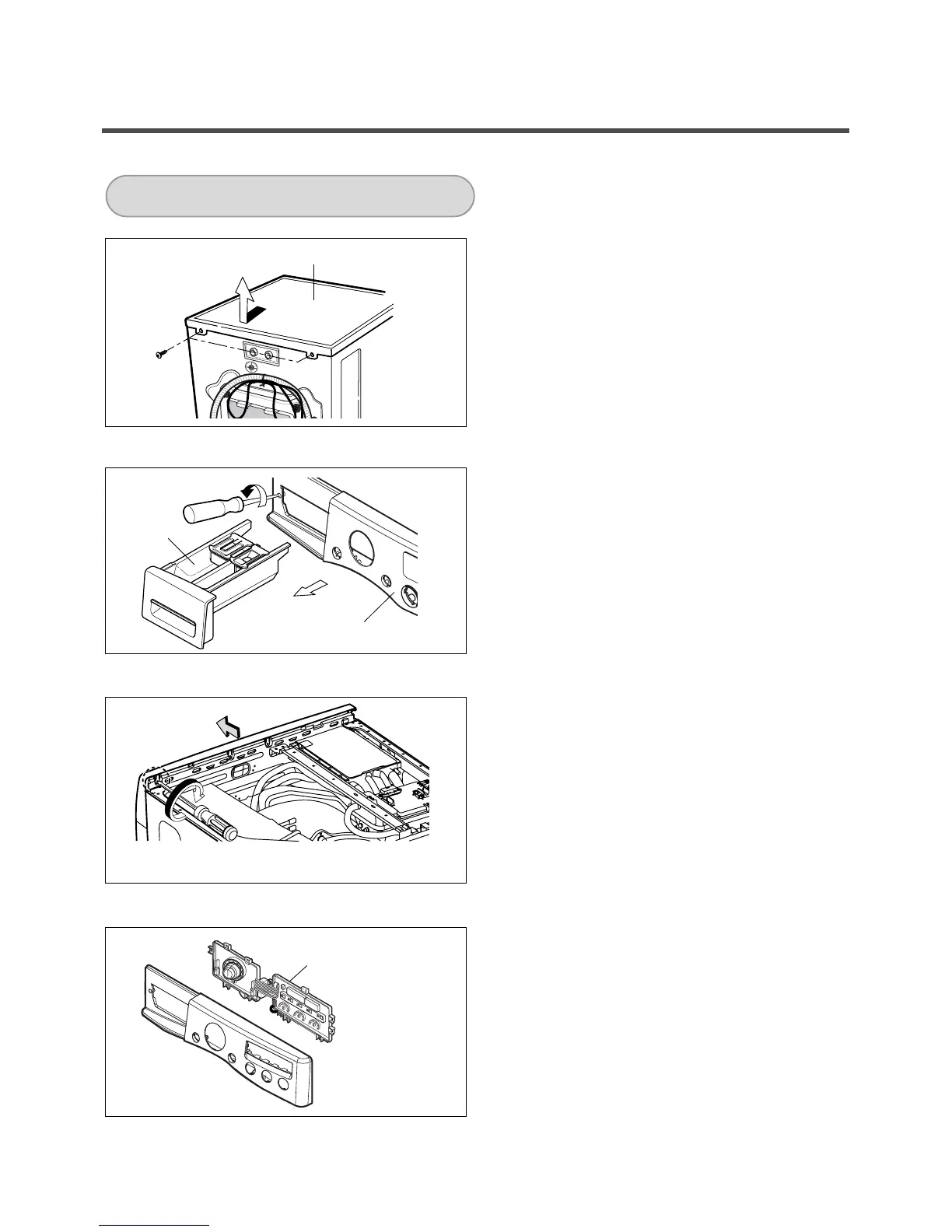

Unscrew 2 screws on the back of the top plate.
②②
Pull the top plate backward and upward as shown.
③③
Disconnect the Display PWB Assembly connector
from Trans cable.
④④
Pull out the drawer and unscrew 2 screws.
⑤⑤
Taking out 1 screw.
⑥⑥
Lift the side the Control Panel Assembly and
pull it out
⑦⑦
Unscrew the 8 screws from the Control Panel
Assembly.
⑧⑧
Disassemble the Display PWB Assembly.
