Liebert 610 Series User Manual

Introduction
6
1.5 Operator Controls
Liebert Series 610 UPS modules are equipped with a microprocessor-based Operator Display Screen
and Control Panel designed for convenient and reliable operation. The front panel location of the mon-
itoring and control system enables the user to quickly identify the current status of the UPS and to
perform most of the manual operations. The operator display screen (a backlit liquid crystal display,
or LCD) is driven by an easy-to-follow menu-prompted software program that controls and monitors
the UPS system.
Detailed instructions on how to interpret the displays and use the controls are in 3.0 - Operation.

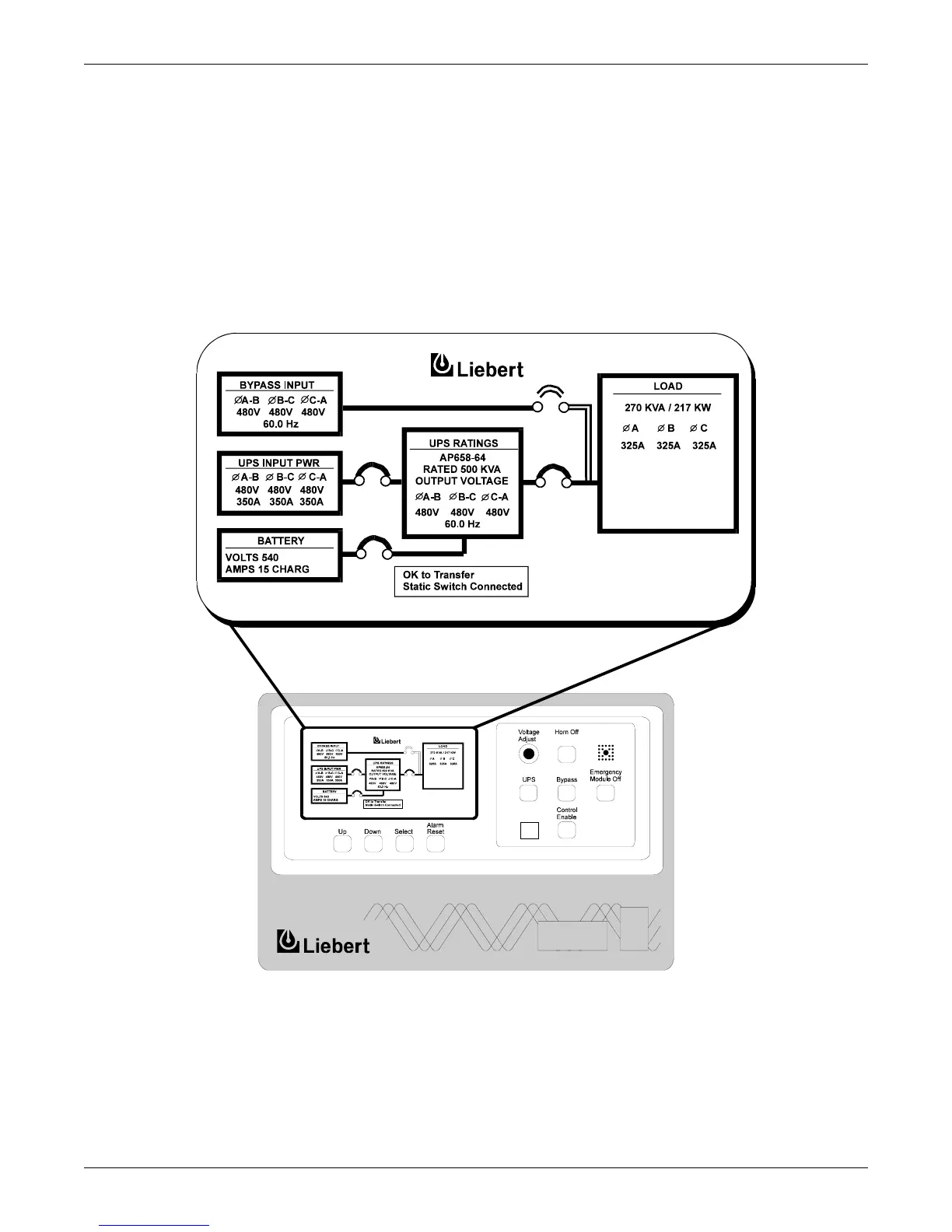

Figure 1 UPS controls and display screen with example of the Monitor/Mimic screen
© 1989-2003
Battery
Trip
