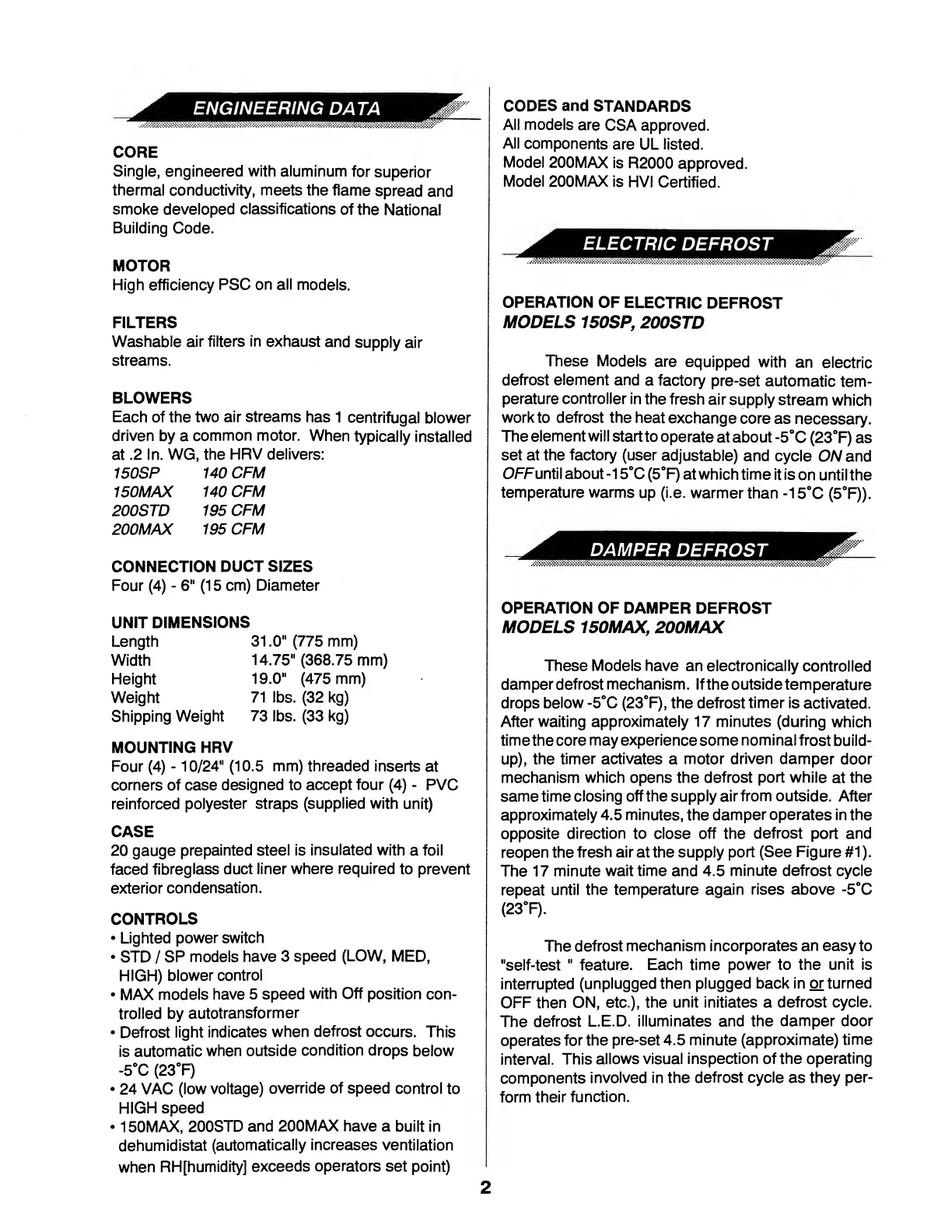

ENGINEERING
DATA
CORE
Single,
engineered
with
aluminum
for
superior
thermal
conductivity,
meets
the
flame
spread
and
smoke
developed
classifications
of
the
National
Building
Code.
MOTOR
High
efficiency
PSC
on
all
models.
FILTERS
Washable
air
filters
in
exhaust
and
supply
air
streams.
BLOWERS
Each
of
the
two
air
streams
has
1
centrifugal
blower
driven
by
a
common
motor.
When
typically
installed
at
.2
In.
WG,
the
HRV
delivers:
150SP
140
CFM
150MAX
140
CFM
200STD
195
CFM
200MAX
195
CFM
CONNECTION
DUCT
SIZES
Four
(4)
-
6"
(15
cm)
Diameter
UNIT
DIMENSIONS
Length
31.0"
(775
mm)
Width
14.75“
(368.75
mm)
Height
19.0”
(475
mm)
Weight
71
lbs.
(32
kg)
Shipping
Weight
73
lbs.
(33
kg)
MOUNTING
HRV
Four
(4)
-10/24“
(10.5
mm)
threaded
inserts
at
corners
of
case
designed
to
accept
four
(4)
-
PVC
reinforced
polyester
straps
(supplied
with
unit)
CASE
20
gauge
prepainted
steel
is
insulated
with
a
foil
faced
fibreglass
duct
liner
where
required
to
prevent
exterior
condensation.
CONTROLS
Lighted
power
switch
STD
/
SP
models
have
3
speed
(LOW,
MED,
HIGH)
blower
control
MAX
models
have
5
speed
with
Off
position
con¬
trolled
by
autotransformer
Defrost
light
indicates
when
defrost
occurs.
This
is
automatic
when
outside
condition
drops
below
-5°C
(23°F)
24
VAC
(low
voltage)
override
of
speed
control
to
HIGH
speed
150MAX,
200STD
and
200MAX
have
a
built
in
dehumidistat
(automatically
increases
ventilation
when
RH[humidity]
exceeds
operators
set
point)
CODES
and
STANDARDS
All
models
are
CSA
approved.
All
components
are
UL
listed.
Model
200MAX
is
R2000
approved.
Model
200MAX
is
HVI
Certified.
ELECTRIC
DEFROST
OPERATION
OF
ELECTRIC
DEFROST
MODELS
150SP,
200STD
These
Models
are
equipped
with
an
electric
defrost
element
and
a
factory
pre-set
automatic
tem¬
perature
controller
in
the
fresh
air
supply
stream
which
work
to
defrost
the
heat
exchange
core
as
necessary.
The
element
will
startto
operate
at
about
-5°C
(23°F)
as
set
at
the
factory
(user
adjustable)
and
cycle
ON
and
OFFuntil
about
-15°C
(5°F)
at
which
time
it
is
on
until
the
temperature
warms
up
(i.e.
warmer
than
-15°C
(5°F)).
DAMPER
DEFROST
OPERATION
OF
DAMPER
DEFROST
MODELS
150MAX,
200MAX
These
Models
have
an
electronically
controlled
damper
defrost
mechanism.
If
the
outside
temperature
drops
below
-5°C
(23°F),
the
defrost
timer
is
activated.
After
waiting
approximately
17
minutes
(during
which
time
the
core
may
experience
some
nominal
frost
build¬
up),
the
timer
activates
a
motor
driven
damper
door
mechanism
which
opens
the
defrost
port
while
at
the
same
time
closing
off
the
supply
air
from
outside.
After
approximately
4.5
minutes,
the
damper
operates
in
the
opposite
direction
to
close
off
the
defrost
port
and
reopen
the
fresh
air
at
the
supply
port
(See
Figure
#1).
The
17
minute
wait
time
and
4.5
minute
defrost
cycle
repeat
until
the
temperature
again
rises
above
-5°C
(23°F).
The
defrost
mechanism
incorporates
an
easy
to
"self-test
"
feature.
Each
time
power
to
the
unit
is
interrupted
(unplugged
then
plugged
back
in
or
turned
OFF
then
ON,
etc.),
the
unit
initiates
a
defrost
cycle.
The
defrost
L.E.D.
illuminates
and
the
damper
door
operates
for
the
pre-set
4.5
minute
(approximate)
time
interval.
This
allows
visual
inspection
of
the
operating
components
involved
in
the
defrost
cycle
as
they
per¬
form
their
function.
