Lifebuoy BCone - Pool Unit Components

8.
BCone | Installation & Operation Guide
Rev B | Doc P/N: BC-00-70-002

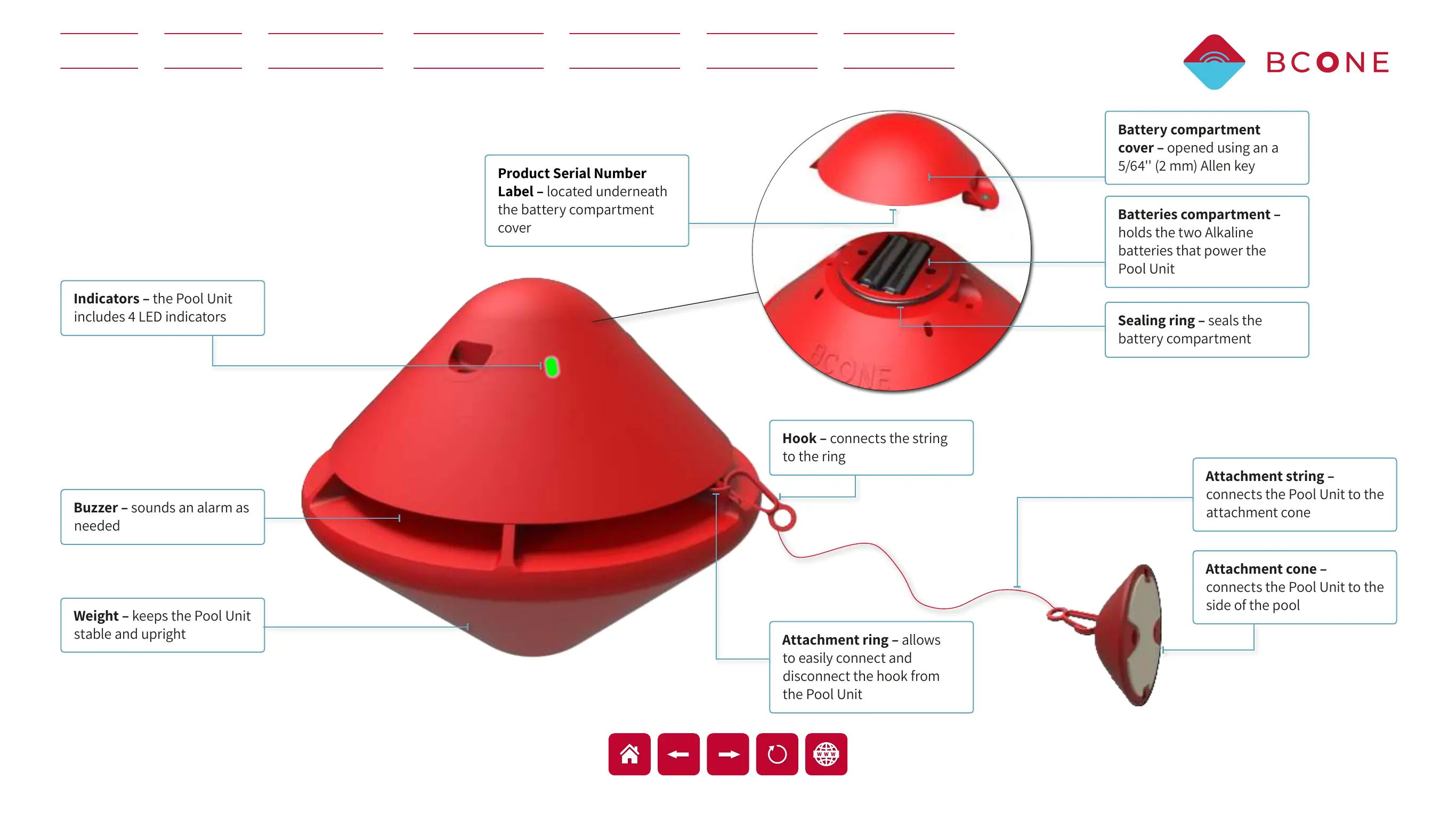

POOL UNIT
The Pool Unit includes the following components:
Weight – keeps the Pool Unit
stable and upright
Attachment ring – allows
to easily connect and
disconnect the hook from
the Pool Unit
Attachment cone –
connects the Pool Unit to the
side of the pool
Indicators – the Pool Unit
includes 4 LED indicators
Attachment string –
connects the Pool Unit to the
attachment cone
Buzzer – sounds an alarm as
needed
Hook – connects the string
to the ring
Batteries compartment –
holds the two Alkaline
batteries that power the
Pool Unit
Sealing ring – seals the
battery compartment
Product Serial Number
Label –
located underneath
the battery compartment
cover
Battery compartment
cover – opened using an a
5/64'' (2 mm) Allen key
