Assembly Instructions

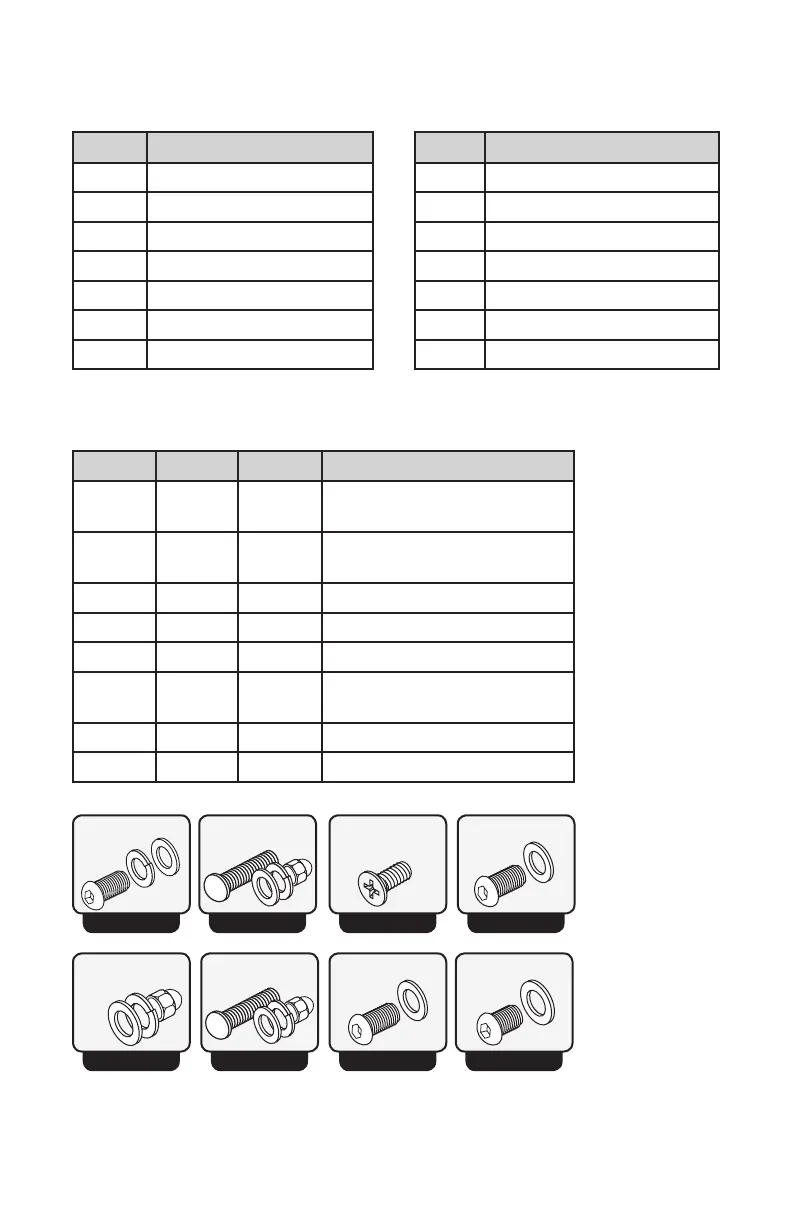

Hardware Included
Item# Part Description Item# Part Description
1 Seat Slide Frame 8 Desk Base Frame
2 Rear Base Foot 9 Left Desk Attachment Frame
3 Drive System 10
Right Desk Attachment Frame
4 Seat Slide Frame Base Cover 11 Desktop
5 Left Pedal
6 Right Pedal
7 Seat
All Hardware is Pre-Installed
Step # Item # Qty. Part Description
1 12 2
M8x15L Bolt, Lock Washers,
Washers
2 13 2
M8X50L Bolt, Lock Washer,
Washer, Nut
2 14 4 Phillip Head Screw
4 15 4 M8x15L Screw, Washer
5 16 2 M8 Lock Washer, Washer, Nut
5 17 2
M8x40L Bolt, Lock Washer,
Washer, Nut
6 18 4 M8x15L Screw/Washer
7 19 2 M8x15L Screws/Washers
STEP 1
M8 x 15L Bolt
(x2)
STEP 2
Phillip Head
Screws (x4)
STEP 2
M8 x 50L Bolt
(x2)
STEP 4
M8 x 15L Bolt
(x4)
STEP 5
M8 Lock Washer,
Washer,
Nut
STEP 5
M8 x 40L Bolt
(x2)
STEP 6
M8 x 15L Bolt
(x4)
STEP 7
M8 x 15L Bolt
(x2)
To Next Page
