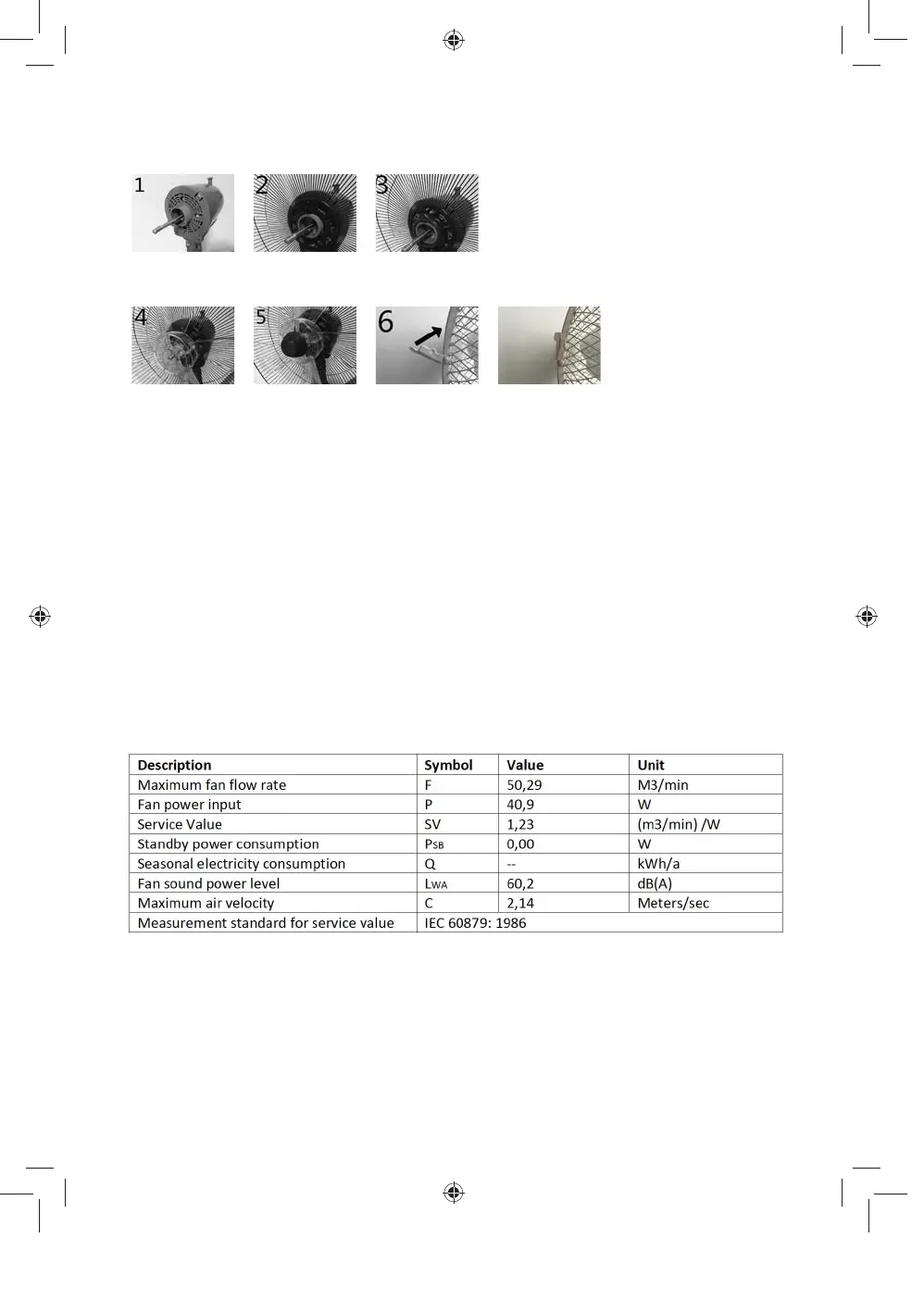

$66(0%/,1*7+()$1+($'DIWHUDVVHPEOLQJWKHEDVH
1. The motor housing.
2. Place the rear guard (B) onto the motor housing as shown.
3. Screw on the plastic retaining nut in a clockwise direction.
4. Place the fan blade (F) onto the metal shaft, making sure that you align the rod with
the 2 slots.
5. Screw on the blade retaining cover in an anticlockwise direction.
6. Place the front guard (A) onto the rear guard (B) and secure it in place using the
guard retaining clips.
Specifications: 220-240V ~ 50/60Hz 42W
IPX0
