Lifetime 1529 - SEC 3.7 Backboard to Rim Assembly: Fastening Brackets to Backboard

31
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE

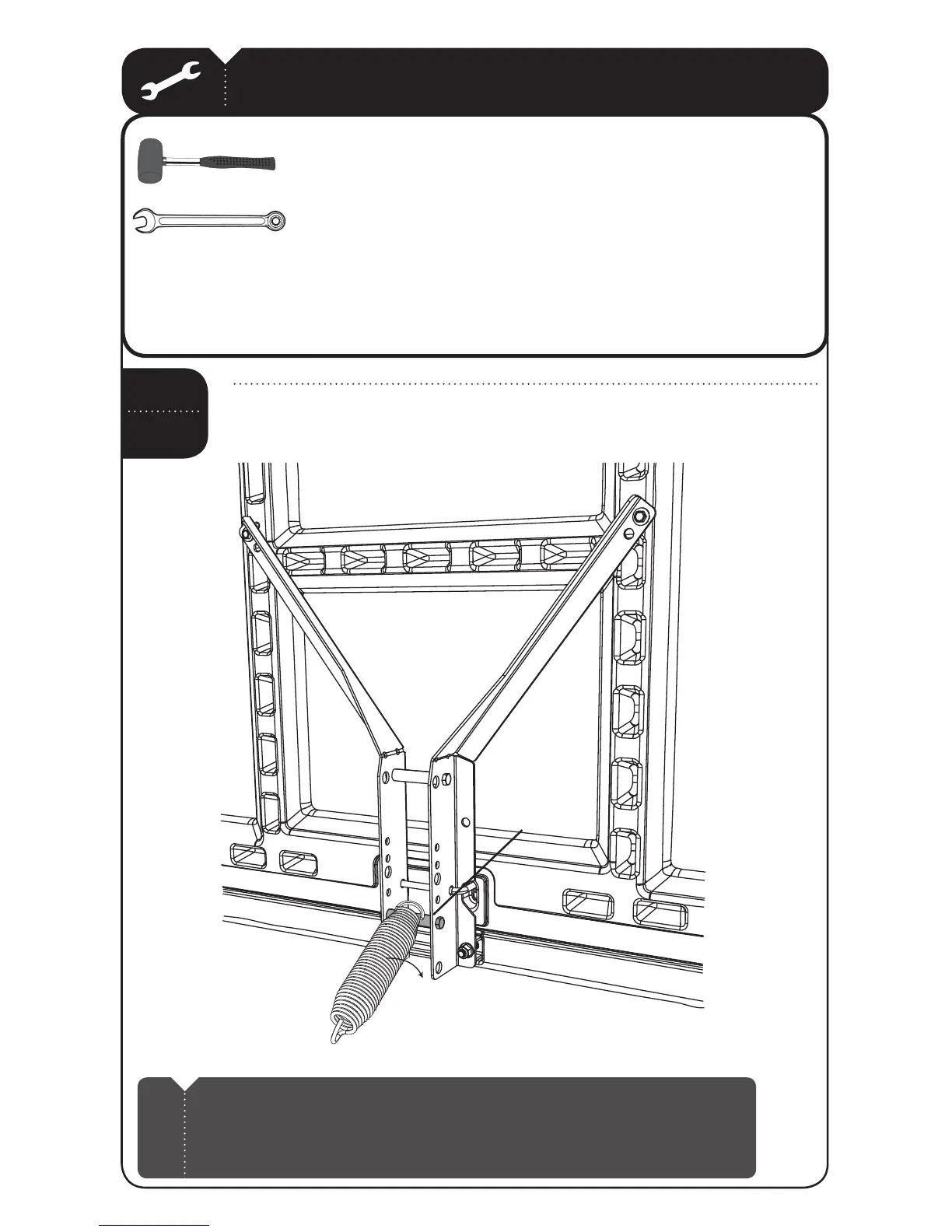

1MBDFPOFFOEPGUIFCounterbalance Spring (AJY)PWFSUIFMPXFS
1/2” x 2 5/16” Galvanized Spacer (ABS)BTTIPXO
SEC
4.1
Note: It may be necessary to use a Rubber Mallet to snap the Counterbalance Spring into
place. If the Rubber Mallet does not work , undo the hardware in the image that has been
shaded gray. Slide the Counterbalance Spring over the Spacer after it has been detached.
Then replace and re-secure the hardware.
!
NO HARDWARE REQUIRED FOR THIS PAGE
7/16” Y
AJY
ABS
