31
TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS
X SECTION 2 (CONTINUED) / SECTION 2 (SUITE) / SECCIÓN 2 (CONTINUACIÓN)
6
BTS (x2)
DXZ (x2)
2.2
2.3
!
DZQ
AAN DZR

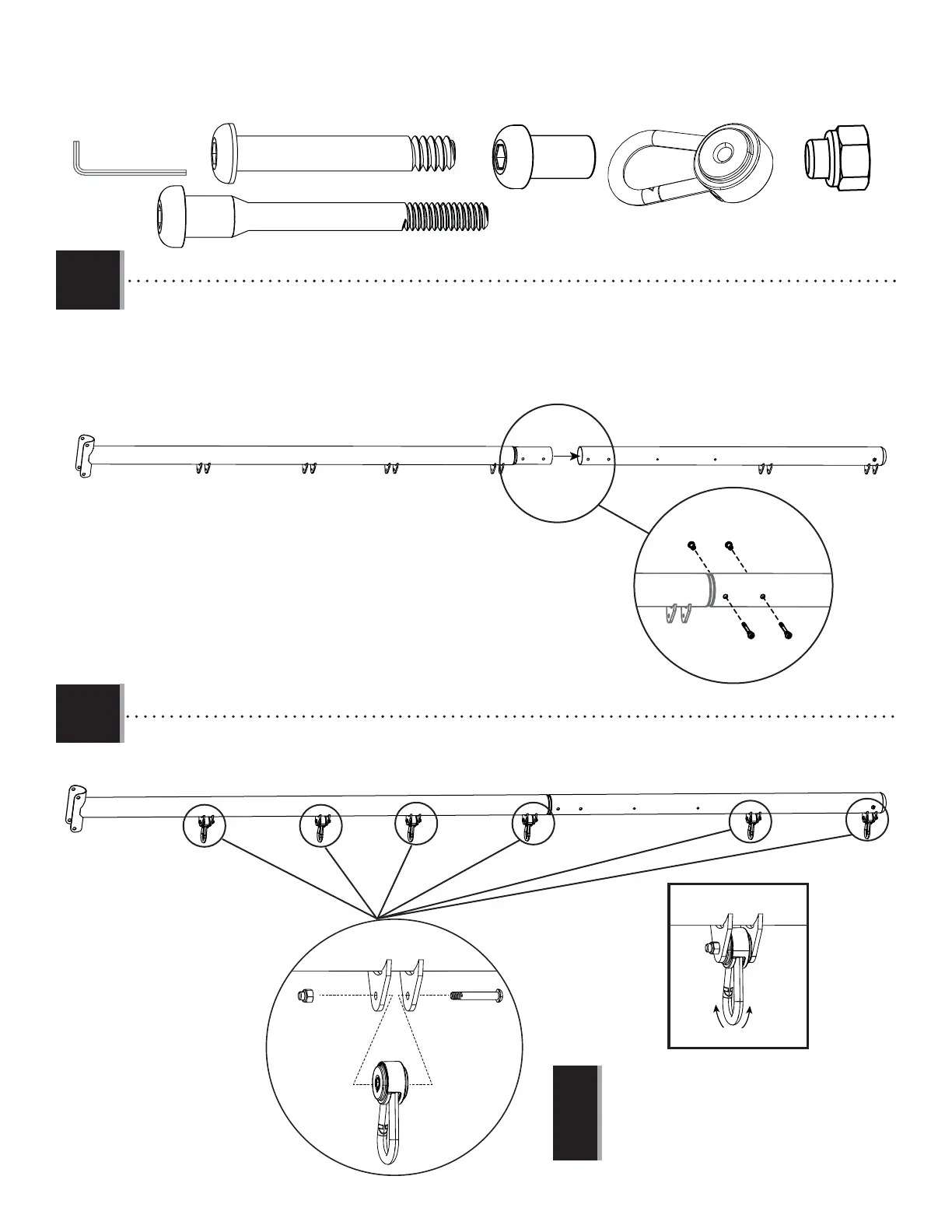

• Do not overtighten the hardware. The Pendulum (DZQ)
should rotate freely.
• Ne pas trop serrer la quincaillerie. Le pendule (DZQ) doit
osciller librement.
• No apretar demasiado el herraje. El péndulo (DZQ) debe
oscilar libremente.
DZQ (x6)
DZR (x6)
AAN (x6)
CBO
EMN
DXZ
BTS
• Secure the Long Swing Bar (CBO) to the Short Swing Bar (EMN) with the hardware shown.
• Attacher bien la barre des balançoires longue (CBO) à la barre des balançoires courte (EMN) en utilisant la quincaillerie
indiquée.
• Sujetar bien la barra del columpio larga (CBO) a la barra del columpio corta (EMN) con el herraje indicado.
(2)
3/16 in/po (≈5 mm)
