Lifetime 60058 - Page 17

TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
17
SEC
SEC
2.3

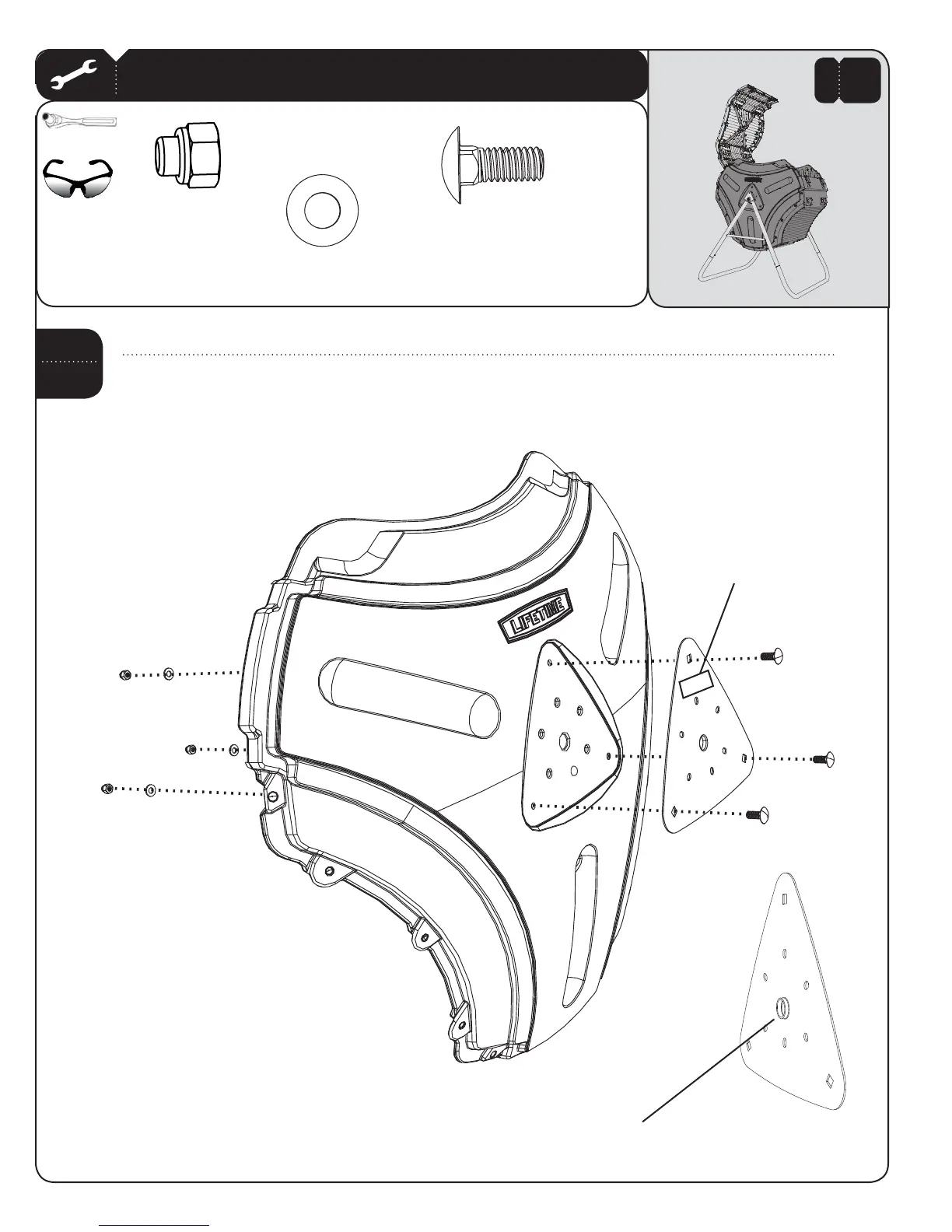

"UUBDIUIFMounting End Plate (BHP) with the warning sticker to an End Panel (BHM) with the warning sticker just below
UIF-JGFUJNFMPHPVTJOHUISFF5/16” x 3/4” Carriage Bolts (BIR)UISFF5/16” Steel Flat Washers (BHO)BOEUISFF
5/16” Cap Nuts (AAN) as shown. Repeat this step for the second End Panel.
TUMBLER ASSEMBLY
2
BIRY
BHOY
AANY
AAN
AAN
AAN
BHO
BHO
BHO
BIR
BHM
BIR
BIR
BHP
Warning Sticker
1/2”
The extruded end of the Mounting End Plate
goes toward the Tumbler.
