Lifetime 60215 - Page 11

11
TOOLS AND HARDWARE REQUIRED / 曧奨䙫ⷌ⅞⑳ṻ憸愴ờ
X SECTION 1 (CONTINUED) / 㨣楢Ჾ (䶫)

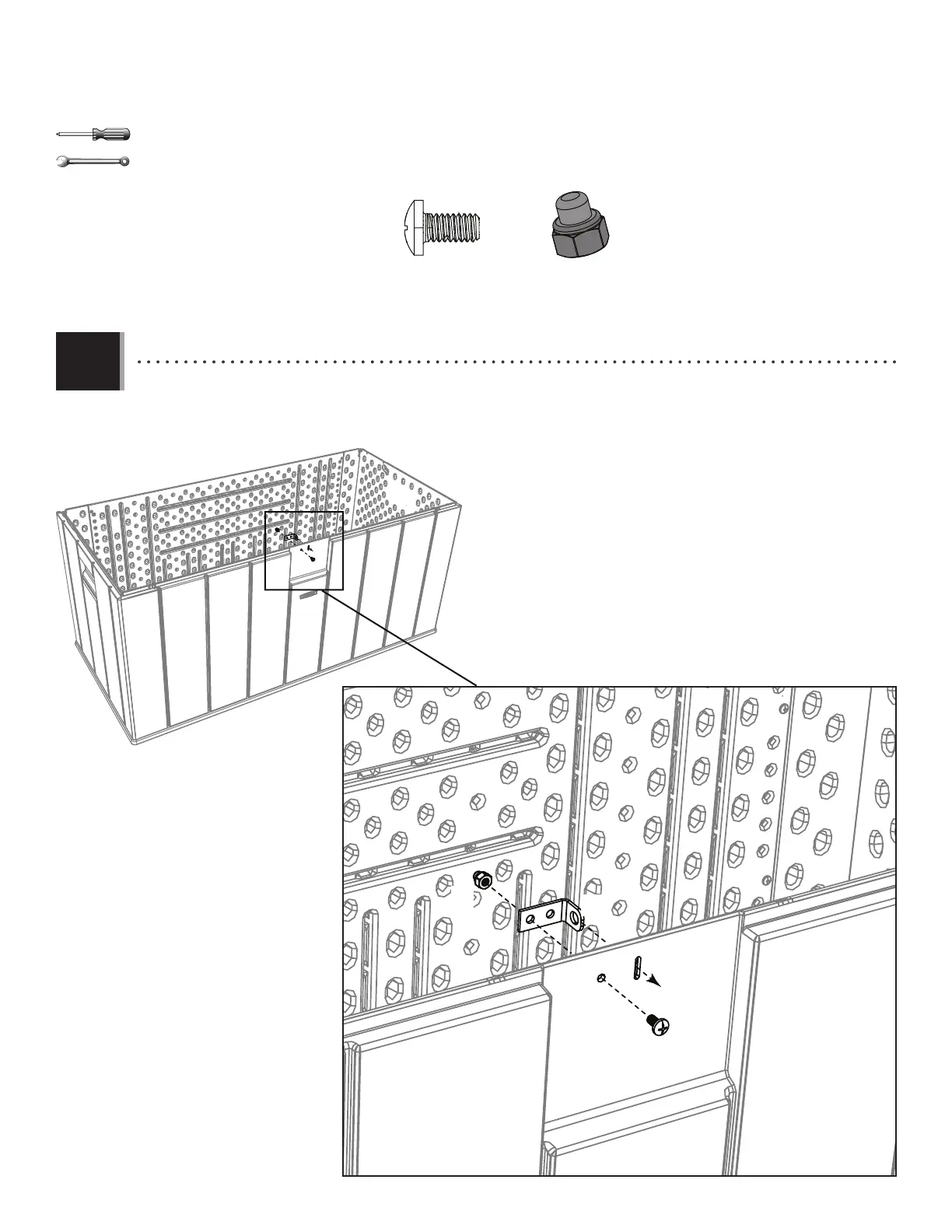

• Attach the Locking Tab (DRD) to the Front Panel using the hadware indicated.
ὦ䔏⛥䤡䙫ṻ憸愴ờ⯭᳉掿淹(DRD)⭰墬∗∴杉㝦󰶒˛
DRC (x1)
DRC
DRD
ADJ
ADJ (x1)
7/16"
(11 mm)
1.9
