Lifetime 60215 - Page 17

17
NO TOOLS AND HARDWARE REQUIRED / 㘱村ⷌ⅞⑳ṻ憸愴ờ
X SECTION 2 (CONTINUED) / 㨣楢ᵊ (䶫)
1/2"
(13 mm)
1/2"
(13 mm)

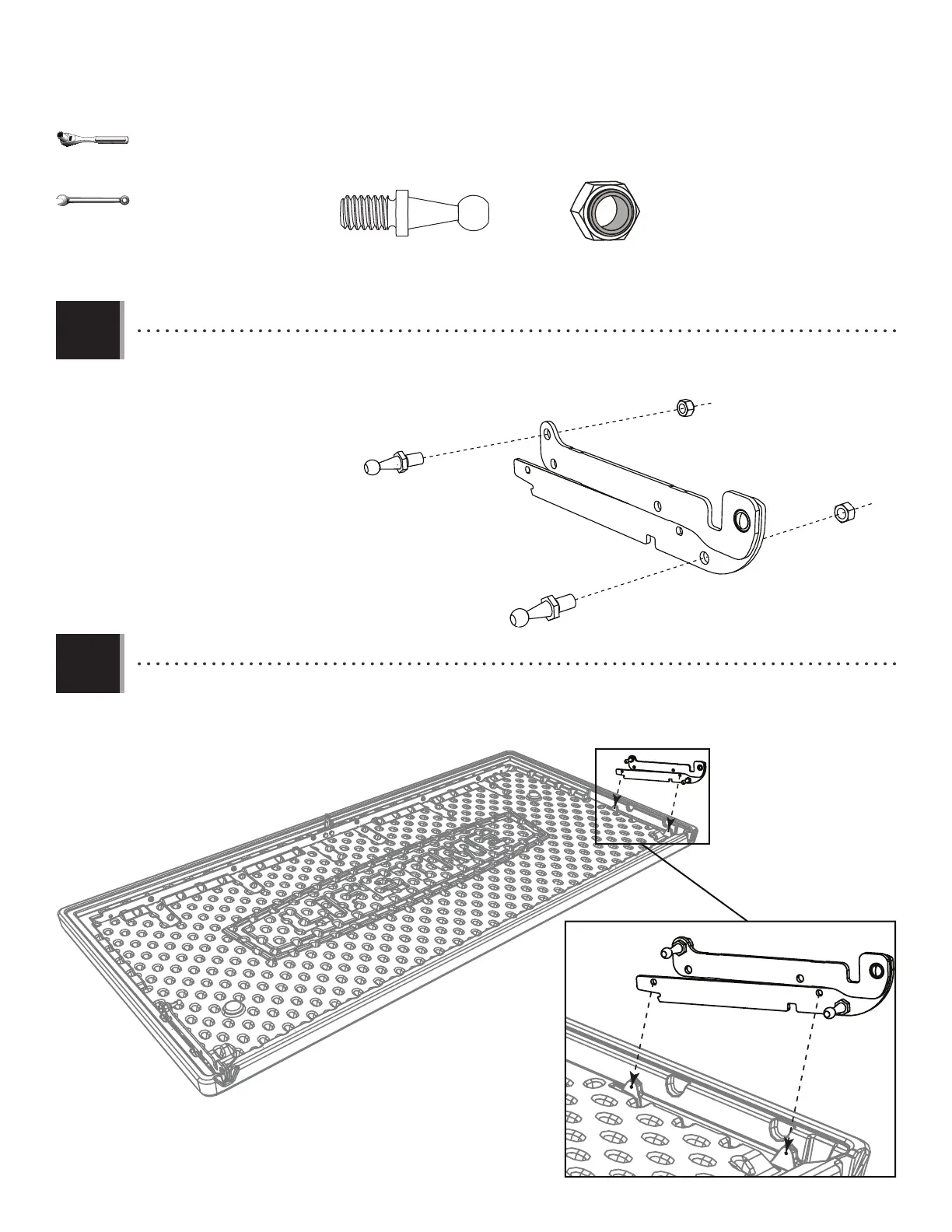

• The Hinge (BEP) goes together this way for the right side of the Lid.
• ⥩⛥享墬䮘䚽⊱ṥ掮掼 (BEP)˛
2.8
2.9
• Insert the right Hinge as you did the left. The Ball Studs face toward the inside.
• 憮䔏⭰墬ⷍᾎ擗擥䙫㖠㲼㎹⅌⏚ᾎ擗擥∗䮘䚽󰶒˛䋁⟲噸㛑映⋏⁃ṥƲ
BEP
BET
BET
AAO
AAO
BET (x2)
AAO (x2)
