Lifetime 65004 - Page 27

27

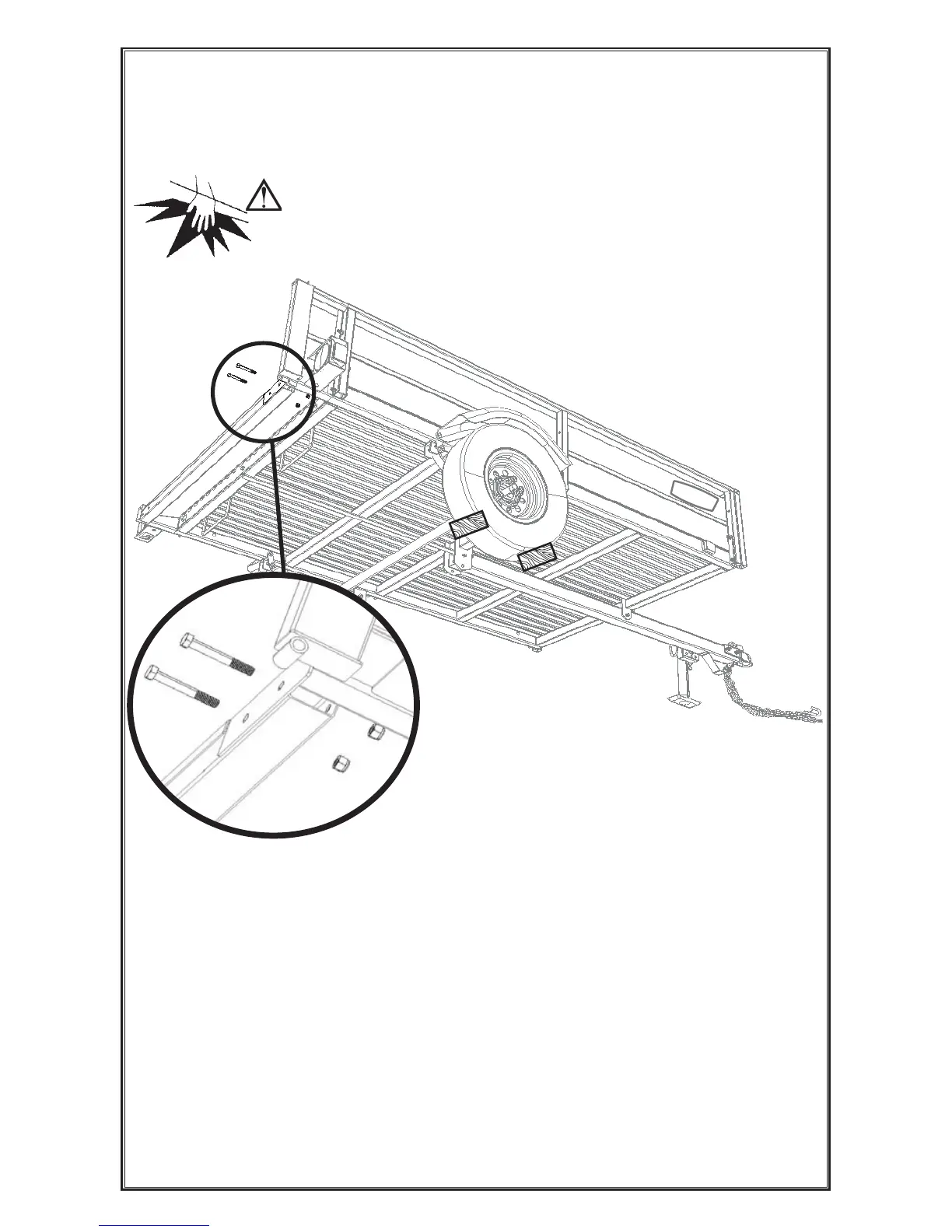

4.5.26HFXUHWKHLeft Rear Side Extension Panel (AB) to the Bed Extension using
WZR3/8”-16 x 2 3/4” Hex Bolts (BC)DQGWZR3/8”-16 Nylock Nuts (BF).
Note: If necessary, after aligning the holes gently tap the Bolts with a Rubber Mallet
or Hammer to help pass them through the holes.
BC
BF
WARNING: Watch for pinch points as serious injury could
occur.
DO NOT COMPLETELY TIGHTEN
THE NYLOCK NUTS YET.
