Lifetime 65009 User Manual

TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
10
SEC
*AVTX
*AVSX
AVRX
7/16”
AVQX
AVS
AVS
AVS
AVS
AVR
AVR
AVT
AVT
AVR
AVR
AVQ

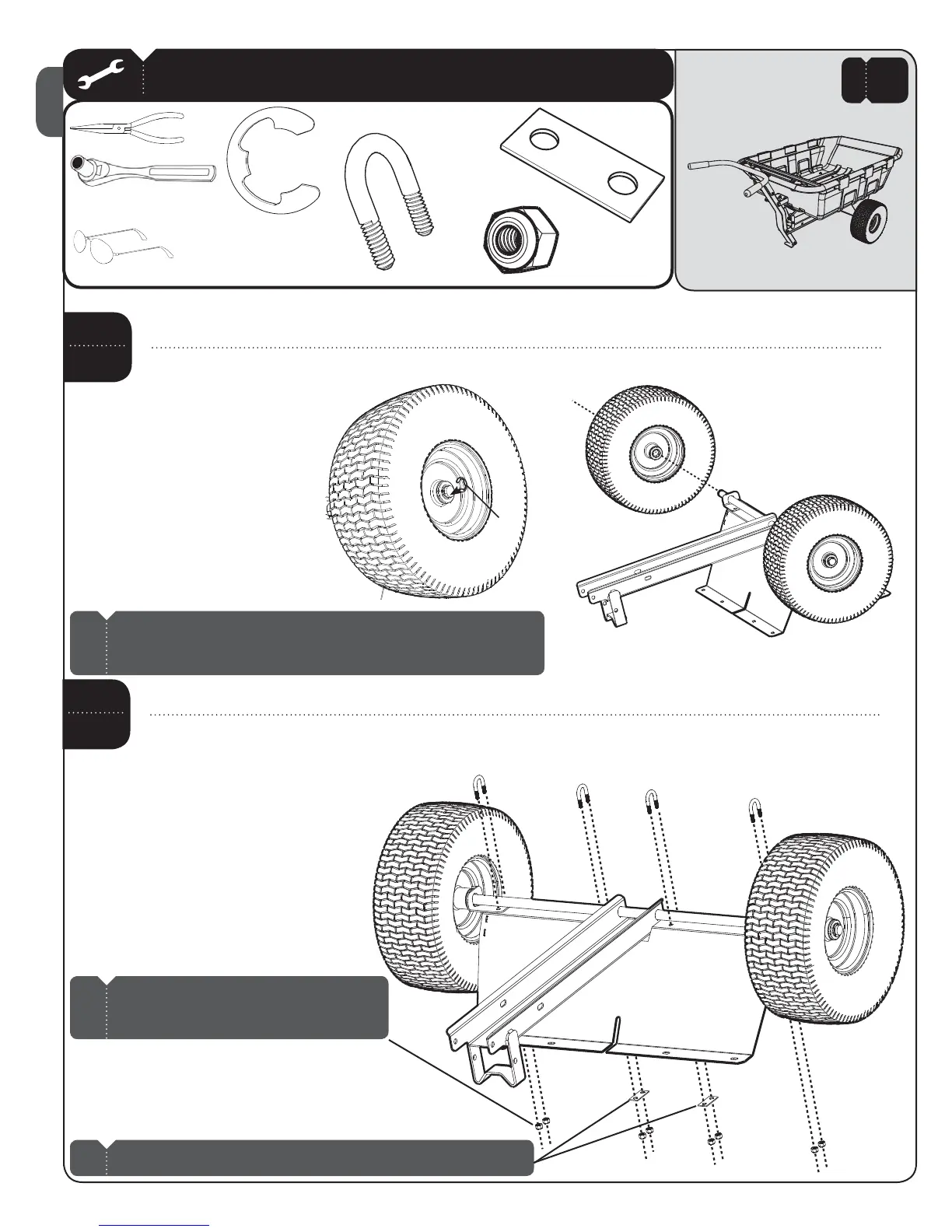

Note: Attach the two (2) U-Bolt Mounting Plates (AVT) to the two inner U-Bolts.
Note: You may need to push on the other end of the Axle to expose the groove
at the other end of the Axle. Since the bearings are sealed, it is not necessary to
grease the bearings using the grease fitting.
Note: To avoid damaging the A-Frame, ensure
you tighten all Nuts (AVR) evenly over each U-Bolt
(AVS).
!
!
!
SEC
1.3
SEC
1.4
2EPEATStep 1.2 for second Wheel.
#ENTERTHE!XLEONTHE!&RAME)NSERTFOUR1/4” x 1 1/2” U-Bolts (AVS)OVERTHE!XLEANDTHROUGHTHEHOLESINTHE
%ND"RACKETS!&RAMEANDTHETWOU-Bolt Mounting Plates (AVT)3ECUREWITHEIGHT1/4” Nylon Insert Nuts (AVR).
1
1.
